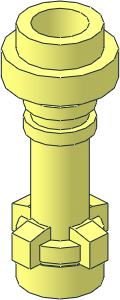

Minifig Lightsaber Hilt with Slight Sloping Fingers with Bottom Ring

File Header:

0 Minifig Lightsaber Hilt with Slight Sloping Fingers with Bottom Ring
0 Name: 64567a.dat
0 Author: Steve Bliss [sbliss]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Holes for 'blade' at y=3 and y=29 with depth of 7
0 !HELP Grip is centered at y=19.25, between y=12.5 and y=26

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Accessory
0 !KEYWORDS bar, base, BrickLink 64567, Rebrickable 64567, rod, sabre, Star Wars
0 !KEYWORDS sword

0 !HISTORY 1999-05-24 [PTadmin] Official Update 1999-04
0 !HISTORY 1999-07-05 [PTadmin] Official Update 1999-05
0 !HISTORY 2007-07-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2012-06-21 [gregteft] Updated Primitives, BFC, Corrected Geometry - overall length, hole depths, ring thickness and spacing, details at pommel
0 !HISTORY 2012-12-14 [PTadmin] Renamed from 577
0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02
0 !HISTORY 2021-03-10 [cwdee] Renamed from 577b
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\64567s01.dat
0 // with ring
1 16 0 30.5 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 28 0 6 0 0 0 2.5 0 0 0 6 4-4cyli.dat
1 16 0 30.5 0 .2 0 0 0 -1 0 0 0 -.2 4-4ring29.dat
1 16 0 30.5 0 5.8 0 0 0 .5 0 0 0 5.8 4-4cylo.dat
1 16 0 31 0 .2 0 0 0 1 0 0 0 .2 4-4ring29.dat
1 16 0 31 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
0 // detail at pommel...
0 // 0 degrees
1 16 5.5519 30.75 1.75 0 0 -.1 .25 0 0 0 -1 0 rect3.dat
1 16 5.5519 30.75 -1.75 0 0 -.1 .25 0 0 0 1 0 rect3.dat
0 // 90 degrees
1 16 1.75 30.75 -5.5519 0 -1 0 .25 0 0 0 0 .1 rect3.dat
1 16 -1.75 30.75 -5.5519 0 1 0 .25 0 0 0 0 .1 rect3.dat
0 // 180 degrees
1 16 -5.5519 30.75 -1.75 0 0 .1 .25 0 0 0 1 0 rect3.dat
1 16 -5.5519 30.75 1.75 0 0 .1 .25 0 0 0 -1 0 rect3.dat
0 // 270 degrees
1 16 -1.75 30.75 5.5519 0 1 0 .25 0 0 0 0 -.1 rect3.dat
1 16 1.75 30.75 5.5519 0 -1 0 .25 0 0 0 0 -.1 rect3.dat
