File Detail parts/65132.dat

Official File parts/65132.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

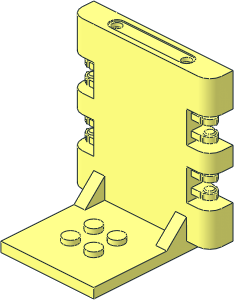

Bracket 4 x 5 x 5 with 4 Locking Hinges with 2 Fingers, Four Studs and 12 Studs on Back

File Header:

0 Bracket  4 x  5 x  5 with 4 Locking Hinges with 2 Fingers, Four Studs and 12 Studs on Back
0 Name: 65132.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2023-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS VIDIYO

0 !HISTORY 2023-11-19 [OrionP] Official Update 2023-06

Show contents

0 // Bottom
1 16 0 4 0 -1 0 0 0 -1 0 0 0 -1 stug4-3x3.dat
1 16 0 4 40 -1 0 0 0 -1 0 0 0 -1 2-4stud4.dat

4 16 -40 8 -40 -36 8 -36 36 8 -36 40 8 -40
4 16 36 8 56 -36 8 56 -40 8 60 40 8 60
4 16 -36 8 44 36 8 44 36 8 40 -36 8 40
1 16 0 8 2 -36 0 0 0 1 0 0 0 -38 recte3.dat
1 16 0 8 10 -40 0 0 0 1 0 0 0 -50 recte4.dat
1 16 0 8 50 -36 0 0 0 1 0 0 0 -6 recte4.dat

1 16 0 6 -36 0 0 -36 2 0 0 0 -1 0 rect2p.dat
1 16 0 4 -5.6716 -36 0 0 0 1 0 0 0 -30.32845 recte3.dat

1 16 0 6 40 0 0 6 2 0 0 0 1 0 rect.dat

1 16 0 4 32.32845 0 0 32.5 0 -1 0 7.67155 0 0 rect2p.dat
4 16 -32.5 4 24.6569 32.5 4 24.6569 36 4 -36 -36 4 -36

0 // Bottom Plate Outside
1 16 0 4 -40 40 0 0 0 0 -4 0 1 0 rect3.dat
4 16 -30.5 0 23 -40 0 -40 40 0 -40 30.5 0 23
1 16 0 4 60 0 0 40 -4 0 0 0 -1 0 rect2p.dat

0 BFC INVERTNEXT
1 16 0 -8.5 31.5 -30.5 0 0 0 8.5 0 0 0 8.5 box2-7.dat

1 16 0 0 0 0 0 1 0 1 0 -1 0 0 stug-2x2.dat

0 // Vertical Section
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\65132s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\65132s01.dat

4 16 -30.5 -17 40 30.5 -17 40 40 -27 40 -40 -27 40
1 16 0 -39.75 60 0 0 -40 -12.75 0 0 0 -20 0 box3u4p.dat
4 16 -40 -52.5 40 40 -52.5 40 40 -67.5 40 -40 -67.5 40
1 16 0 -80.25 60 0 0 -40 -12.75 0 0 0 -20 0 box3u4p.dat
4 16 -40 -93 40 40 -93 40 40 -120 40 -40 -120 40

4 16 36 8 44 -36 8 44 -36 -116 44 36 -116 44
4 16 -26.25 -116 46.25 26.25 -116 46.25 36 -116 44 -36 -116 44
2 24 -36 -116 44 36 -116 44
4 16 26.25 -116 50 26.25 -116 46.25 -26.25 -116 46.25 -26.25 -116 50
4 16 26.25 -116 50 -26.25 -116 50 -26.25 -116 53.75 26.25 -116 53.75
4 16 36 -116 56 26.25 -116 53.75 -26.25 -116 53.75 -36 -116 56
2 24 -36 -116 56 36 -116 56
4 16 36 -116 56 -36 -116 56 -36 8 56 36 8 56

2 24 -40 -120 40 40 -120 40
4 16 30 -119 44.375 26.25 -119 46.25 -26.25 -119 46.25 -30 -119 44.375
4 16 -26.25 -119 50 -26.25 -119 46.25 26.25 -119 46.25 26.25 -119 50
4 16 -26.25 -119 50 26.25 -119 50 26.25 -119 53.75 -26.25 -119 53.75
4 16 -30 -119 55.625 -26.25 -119 53.75 26.25 -119 53.75 30 -119 55.625
1 16 0 -119.5 44.375 30 0 0 0 0 .5 0 -1 0 rect2p.dat
1 16 0 -119.5 55.625 -30 0 0 0 0 .5 0 1 0 rect2p.dat
4 16 40 -120 40 30 -120 44.375 -30 -120 44.375 -40 -120 40
4 16 -40 -120 60 -30 -120 55.625 30 -120 55.625 40 -120 60
2 24 -40 -120 60 40 -120 60
4 16 -40 -120 60 40 -120 60 40 -117.5 60 -40 -117.5 60
4 16 40 -95.5 60 -40 -95.5 60 -40 -117.5 60 40 -117.5 60
4 16 -40 -95.5 60 40 -95.5 60 40 -93 60 -40 -93 60
4 16 -40 -93 60 40 -93 60 40 -67.5 60 -40 -67.5 60
4 16 -40 -65 60 -40 -67.5 60 40 -67.5 60 40 -65 60
4 16 -40 -65 60 40 -65 60 40 -55 60 -40 -55 60
4 16 -40 -52.5 60 -40 -55 60 40 -55 60 40 -52.5 60
4 16 -40 -52.5 60 40 -52.5 60 40 -27 60 -40 -27 60
4 16 -40 -24.5 60 -40 -27 60 40 -27 60 40 -24.5 60
4 16 -40 -24.5 60 40 -24.5 60 40 -2.5 60 -40 -2.5 60
4 16 -40 0 60 -40 -2.5 60 40 -2.5 60 40 0 60

1 16 0 -116 50 0 0 1 0 102 0 -6 0 0 box3u2p.dat

1 16 30 -60 60 0 0 -1 1 0 0 0 -1 0 stug2-1x6.dat
1 16 -30 -60 60 0 0 -1 1 0 0 0 -1 0 stug2-1x6.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2021-03-09 22:05:02

Should we go with the RB name

Call it a bracket

or put it into the Container Category? BL

...and LEGO calls it PLATE 4X5X5 1/3, W/ HOR. FORK

Magnus Forsberg [MagFors]

posted a vote of Hold.

2021-03-23 17:35:01

Why don't you add more of the mirrored surface in the subfile?
Yes, I find the description confusing. To me this is a "Bracket with Locking Hinges and some random Studs".

(Where is lego going with all of these big, hardly reusable, container blocks?)

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2021-05-16 22:05:02

moved more into the subfile

Existing certification-votes were deleted.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2021-05-18 16:45:01

Even more surface could be in the subfile, like the half studs and connecting rects.

The top surface is warped, broken, not flat.

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2021-05-18 19:40:01

moved more to subfile
changed name
corrected top surface

Existing certification-votes were deleted.
