Official File parts/65140.dat
Part Attributes:
File Header:

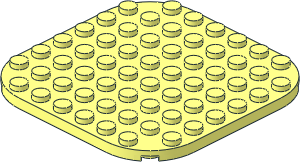

0 Plate 8 x 8 with Rounded Corners
0 Name: 65140.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
1 16 40 0 40 0 0 1 0 1 0 1 0 0 s\65140s01.dat
1 16 40 0 40 1 0 0 0 1 0 0 0 1 s\65140s01.dat
1 16 -40 0 40 0 0 -1 0 1 0 1 0 0 s\65140s01.dat
1 16 -40 0 40 -1 0 0 0 1 0 0 0 1 s\65140s01.dat
1 16 40 0 -40 0 0 1 0 1 0 -1 0 0 s\65140s01.dat
1 16 40 0 -40 1 0 0 0 1 0 0 0 -1 s\65140s01.dat
1 16 -40 0 -40 0 0 -1 0 1 0 -1 0 0 s\65140s01.dat
1 16 -40 0 -40 -1 0 0 0 1 0 0 0 -1 s\65140s01.dat
1 16 -80 2 0 0 1 0 -2 0 0 0 0 40 rect1.dat
1 16 0 2 -80 0 0 -40 -2 0 0 0 1 0 rect1.dat
1 16 80 2 0 0 -1 0 -2 0 0 0 0 -40 rect1.dat
1 16 0 2 80 0 0 40 -2 0 0 0 -1 0 rect1.dat
1 16 -78 4 0 0 0 2 0 4 0 40 0 0 box3u10p.dat
1 16 0 4 78 40 0 0 0 4 0 0 0 -2 box3u10p.dat
1 16 78 4 0 0 0 -2 0 4 0 -40 0 0 box3u10p.dat
1 16 0 4 -78 -40 0 0 0 4 0 0 0 2 box3u10p.dat
2 24 -76 4 40 -76 4 -40
2 24 -40 4 76 40 4 76
2 24 76 4 40 76 4 -40
2 24 40 4 -76 -40 4 -76
4 16 -76 4 40 76 4 40 76 4 -40 -76 4 -40
3 16 -40 4 -76 -65.4573 4 -65.4574 -76 4 -40
3 16 40 4 -76 76 4 -40 65.4574 4 -65.4573
3 16 65.4574 4 65.4573 76 4 40 40 4 76
3 16 -65.4573 4 65.4574 -40 4 76 -76 4 40
4 16 -76 4 40 -40 4 76 40 4 76 76 4 40
4 16 76 4 -40 40 4 -76 -40 4 -76 -76 4 -40
1 16 40 0 40 0 0 40 0 1 0 40 0 0 48\1-4chrd.dat
1 16 -40 0 40 0 0 -40 0 1 0 40 0 0 48\1-4chrd.dat
1 16 40 0 -40 0 0 40 0 1 0 -40 0 0 48\1-4chrd.dat
1 16 -40 0 -40 0 0 -40 0 1 0 -40 0 0 48\1-4chrd.dat
1 16 40 0 40 0 0 40 0 1 0 40 0 0 48\1-4edge.dat
1 16 -40 0 40 0 0 -40 0 1 0 40 0 0 48\1-4edge.dat
1 16 40 0 -40 0 0 40 0 1 0 -40 0 0 48\1-4edge.dat
1 16 -40 0 -40 0 0 -40 0 1 0 -40 0 0 48\1-4edge.dat
4 16 -80 0 -40 -40 0 -80 40 0 -80 80 0 -40
4 16 -80 0 -40 80 0 -40 80 0 40 -80 0 40
4 16 -40 0 80 -80 0 40 80 0 40 40 0 80
1 16 0 0 70 1 0 0 0 1 0 0 0 1 stug-1x6.dat
1 16 0 0 -70 1 0 0 0 1 0 0 0 1 stug-1x6.dat
1 16 70 0 0 1 0 0 0 1 0 0 0 1 stug-6x1.dat
1 16 -70 0 0 1 0 0 0 1 0 0 0 1 stug-6x1.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug-6x6.dat
1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stug4-7x7.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Vidiyo parts
Some values could be better rounded too...
* Walls are too thick and would overlap with a:
1 47 0 8 0 1 0 0 0 1 0 0 0 1 41539.dat
See also:
0 !LPE DISTANCE 5 75.6904 8 44.698 80 8 44.698
* I doubt that the room for the understuds is 5 LDU thick which requires a scaled stug4-7x7.dat:
0 !LPE DISTANCE 5 75.6904 8 44.698 75.6904 3 44.698
1 47 0 8 0 1 0 0 0 1 0 0 0 1 41539.dat
See also:
0 !LPE DISTANCE 5 75.6904 8 44.698 80 8 44.698
* I doubt that the room for the understuds is 5 LDU thick which requires a scaled stug4-7x7.dat:
0 !LPE DISTANCE 5 75.6904 8 44.698 75.6904 3 44.698
2021-10-31 12:15:01
This might be true to the original part, but it is not true to how every other ldraw plate is made ...
corrected geometry
Existing certification-votes were deleted.
Existing certification-votes were deleted.
Misses the following condlines:
5 24 -76 4 -40 -76 8 -40 -76 4 40 -75.6904 4 -44.698
5 24 -76 8 40 -76 4 40 -76 4 -40 -75.6904 4 44.698
5 24 -40 4 76 -40 8 76 40 4 76 -44.698 4 75.6904
5 24 40 8 76 40 4 76 -40 4 76 44.698 4 75.6904
5 24 76 4 40 76 8 40 76 4 -40 75.6904 4 44.698
5 24 76 8 -40 76 4 -40 76 4 40 75.6904 4 -44.698
5 24 40 4 -76 40 8 -76 -40 4 -76 44.698 4 -75.6904
5 24 -40 8 -76 -40 4 -76 40 4 -76 -44.698 4 -75.6904
5 24 60 4 74.64 60 8 74.64 55.308 8 76.956 63.9024 4 72.036
5 24 74.64 8 60 74.64 4 60 76.956 8 55.308 72.036 4 63.9024
5 24 -60 8 74.64 -60 4 74.64 -55.308 8 76.956 -63.9024 4 72.036
5 24 -74.64 4 60 -74.64 8 60 -76.956 8 55.308 -72.036 4 63.9024
5 24 60 8 -74.64 60 4 -74.64 55.308 8 -76.956 63.9024 4 -72.036
5 24 74.64 4 -60 74.64 8 -60 76.956 8 -55.308 72.036 4 -63.9024
5 24 -60 4 -74.64 -60 8 -74.64 -55.308 8 -76.956 -63.9024 4 -72.036
5 24 -74.64 8 -60 -74.64 4 -60 -76.956 8 -55.308 -72.036 4 -63.9024
5 24 -76 4 -40 -76 8 -40 -76 4 40 -75.6904 4 -44.698
5 24 -76 8 40 -76 4 40 -76 4 -40 -75.6904 4 44.698
5 24 -40 4 76 -40 8 76 40 4 76 -44.698 4 75.6904
5 24 40 8 76 40 4 76 -40 4 76 44.698 4 75.6904
5 24 76 4 40 76 8 40 76 4 -40 75.6904 4 44.698
5 24 76 8 -40 76 4 -40 76 4 40 75.6904 4 -44.698
5 24 40 4 -76 40 8 -76 -40 4 -76 44.698 4 -75.6904
5 24 -40 8 -76 -40 4 -76 40 4 -76 -44.698 4 -75.6904
5 24 60 4 74.64 60 8 74.64 55.308 8 76.956 63.9024 4 72.036
5 24 74.64 8 60 74.64 4 60 76.956 8 55.308 72.036 4 63.9024
5 24 -60 8 74.64 -60 4 74.64 -55.308 8 76.956 -63.9024 4 72.036
5 24 -74.64 4 60 -74.64 8 60 -76.956 8 55.308 -72.036 4 63.9024
5 24 60 8 -74.64 60 4 -74.64 55.308 8 -76.956 63.9024 4 -72.036
5 24 74.64 4 -60 74.64 8 -60 76.956 8 -55.308 72.036 4 -63.9024
5 24 -60 4 -74.64 -60 8 -74.64 -55.308 8 -76.956 -63.9024 4 -72.036
5 24 -74.64 8 -60 -74.64 4 -60 -76.956 8 -55.308 -72.036 4 -63.9024
Problem can be solved in by adding just some of them in the subpart...
2021-12-07 20:15:01
2023-08-17 03:00:21
2023-08-25 01:30:53
Release 2023-04
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
