Official File parts/65304.dat
Part Attributes:
File Header:

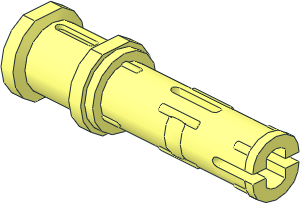

0 Technic Pin Long with Stop Bush Type 2
0 Name: 65304.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 32054
0 !HISTORY 2021-12-26 [MagFors] reshaped axlehole
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
1 16 -10 0 0 0 -1 0 0 0 1 -1 0 0 confric3.dat
1 16 -20 0 0 0 0 -1 -1 0 0 0 1 0 bush0.dat
1 16 -10 0 0 0 1 0 1 0 0 0 0 1 axl5end.dat
1 16 -27 0 0 0 1.125 0 0 0 2.25 2.25 0 0 3-16con3.dat
1 16 -30 0 0 0 3 0 0 0 9 9 0 0 3-16cylo.dat
1 16 -30 0 0 0 1 0 0 0 9 9 0 0 3-16chrd.dat
1 16 -27 0 0 0 1.125 0 0 0 -2.25 2.25 0 0 3-16con3.dat
1 16 -30 0 0 0 3 0 0 0 -9 9 0 0 3-16cylo.dat
1 16 -30 0 0 0 1 0 0 0 -9 9 0 0 3-16chrd.dat
4 16 -30 6 0 -30 5.602 2 -30 8.3151 3.4443 -30 8.3151 -3.4443
3 16 -30 8.3151 3.4443 -30 5.602 2 -30 5.543 2.296
3 16 -30 8.3151 3.4443 -30 5.543 2.296 -30 4.2428 4.2427
3 16 -30 0 6 -30 0 9 -30 2 5.602
3 16 -30 2 5.602 -30 0 9 -30 2.296 5.543
4 16 -30 8.3151 3.4443 -30 4.2428 4.2427 -30 2.296 5.543 -30 0 9
4 16 -30 -8.3151 3.4443 -30 -5.602 2 -30 -6 0 -30 -8.3151 -3.4443
3 16 -30 -5.602 2 -30 -8.3151 3.4443 -30 -5.543 2.296
3 16 -30 -5.543 2.296 -30 -8.3151 3.4443 -30 -4.2428 4.2427
3 16 -30 0 9 -30 0 6 -30 -2 5.602
3 16 -30 0 9 -30 -2 5.602 -30 -2.296 5.543
4 16 -30 -2.296 5.543 -30 -4.2428 4.2427 -30 -8.3151 3.4443 -30 0 9
1 16 -27 0 0 0 1.125 0 0 0 2.25 -2.25 0 0 3-16con3.dat
1 16 -30 0 0 0 3 0 0 0 9 -9 0 0 3-16cylo.dat
1 16 -30 0 0 0 1 0 0 0 9 -9 0 0 3-16chrd.dat
1 16 -27 0 0 0 1.125 0 0 0 -2.25 -2.25 0 0 3-16con3.dat
1 16 -30 0 0 0 3 0 0 0 -9 -9 0 0 3-16cylo.dat
1 16 -30 0 0 0 1 0 0 0 -9 -9 0 0 3-16chrd.dat
3 16 -30 5.602 -2 -30 6 0 -30 8.3151 -3.4443
3 16 -30 5.602 -2 -30 8.3151 -3.4443 -30 5.543 -2.296
3 16 -30 5.543 -2.296 -30 8.3151 -3.4443 -30 4.2428 -4.2427
3 16 -30 0 -9 -30 0 -6 -30 2 -5.602
3 16 -30 0 -9 -30 2 -5.602 -30 2.296 -5.543
4 16 -30 2.296 -5.543 -30 4.2428 -4.2427 -30 8.3151 -3.4443 -30 0 -9
3 16 -30 -6 0 -30 -5.602 -2 -30 -8.3151 -3.4443
3 16 -30 -8.3151 -3.4443 -30 -5.602 -2 -30 -5.543 -2.296
3 16 -30 -8.3151 -3.4443 -30 -5.543 -2.296 -30 -4.2428 -4.2427
3 16 -30 0 -6 -30 0 -9 -30 -2 -5.602
3 16 -30 -2 -5.602 -30 0 -9 -30 -2.296 -5.543
4 16 -30 -8.3151 -3.4443 -30 -4.2428 -4.2427 -30 -2.296 -5.543 -30 0 -9
3 16 -27 8.3151 -3.4443 -27 8.3151 3.4443 -26 7 0
3 16 -27 8.3151 -3.4443 -26 7 0 -25.875 6.2363 -2.5832
3 16 -26 7 0 -27 8.3151 3.4443 -25.875 6.2363 2.5832
5 24 -27 8.3151 3.4443 -25.875 6.2363 2.5832 -26 7 0 -27 6.3639 6.3639
5 24 -27 8.3151 3.4443 -26 7 0 -27 8.3151 -3.4443 -25.875 6.2363 2.5832
5 24 -27 8.3151 -3.4443 -25.875 6.2363 -2.5832 -26 7 0 -27 6.3639 -6.3639
5 24 -27 8.3151 -3.4443 -26 7 0 -27 8.3151 3.4443 -25.875 6.2363 -2.5832
1 16 -28.5 8.3151 0 -1.5 0 0 0 -1 0 0 0 3.4443 rect.dat
3 16 -27 -8.3151 3.4443 -27 -8.3151 -3.4443 -26 -7 0
3 16 -26 -7 0 -27 -8.3151 -3.4443 -25.875 -6.2363 -2.5832
3 16 -27 -8.3151 3.4443 -26 -7 0 -25.875 -6.2363 2.5832
5 24 -27 -8.3151 3.4443 -25.875 -6.2363 2.5832 -26 -7 0 -27 -6.3639 6.3639
5 24 -27 -8.3151 3.4443 -26 -7 0 -27 -8.3151 -3.4443 -25.875 -6.2363 2.5832
5 24 -27 -8.3151 -3.4443 -25.875 -6.2363 -2.5832 -26 -7 0 -27 -6.3639 -6.3639
5 24 -27 -8.3151 -3.4443 -26 -7 0 -27 -8.3151 3.4443 -25.875 -6.2363 -2.5832
1 16 -28.5 -8.3151 0 0 0 1.5 0 1 0 -3.4443 0 0 rect.dat
1 16 -10 0 0 0 -1 0 0 0 8 8 0 0 4-4edge.dat
1 16 -13 0 0 0 -1.125 0 0 0 2.25 2.25 0 0 3-16con3.dat
1 16 -10 0 0 0 -3 0 0 0 9 9 0 0 3-16cylo.dat
1 16 -10 0 0 0 -1 0 0 0 1 1 0 0 3-16ring8.dat
1 16 -13 0 0 0 -1.125 0 0 0 2.25 -2.25 0 0 3-16con3.dat
1 16 -10 0 0 0 -3 0 0 0 9 -9 0 0 3-16cylo.dat
1 16 -10 0 0 0 -1 0 0 0 1 -1 0 0 3-16ring8.dat
4 16 -10 7.3912 3.0616 -10 7.3912 -3.0616 -10 8.3151 -3.4443 -10 8.3151 3.4443
1 16 -11.5 8.3151 0 0 0 -1.5 0 -1 0 -3.4443 0 0 rect.dat
3 16 -13 8.3151 3.4443 -13 8.3151 -3.4443 -14 7 0
3 16 -14 7 0 -13 8.3151 -3.4443 -14.125 6.2363 -2.5832
3 16 -13 8.3151 3.4443 -14 7 0 -14.125 6.2363 2.5832
5 24 -13 8.3151 3.4443 -14.125 6.2363 2.5832 -14 7 0 -13 6.3639 6.3639
5 24 -13 8.3151 3.4443 -14 7 0 -13 8.3151 -3.4443 -14.125 6.2363 2.5832
5 24 -13 8.3151 -3.4443 -14.125 6.2363 -2.5832 -14 7 0 -13 6.3639 -6.3639
5 24 -13 8.3151 -3.4443 -14 7 0 -13 8.3151 3.4443 -14.125 6.2363 -2.5832
1 16 -13 0 0 0 -1.125 0 0 0 -2.25 2.25 0 0 3-16con3.dat
1 16 -10 0 0 0 -3 0 0 0 -9 9 0 0 3-16cylo.dat
1 16 -10 0 0 0 -1 0 0 0 -1 1 0 0 3-16ring8.dat
1 16 -13 0 0 0 -1.125 0 0 0 -2.25 -2.25 0 0 3-16con3.dat
1 16 -10 0 0 0 -3 0 0 0 -9 -9 0 0 3-16cylo.dat
1 16 -10 0 0 0 -1 0 0 0 -1 -1 0 0 3-16ring8.dat
4 16 -10 -8.3151 -3.4443 -10 -7.3912 -3.0616 -10 -7.3912 3.0616 -10 -8.3151 3.4443
1 16 -11.5 -8.3151 0 1.5 0 0 0 1 0 0 0 3.4443 rect.dat
3 16 -13 -8.3151 -3.4443 -13 -8.3151 3.4443 -14 -7 0
3 16 -13 -8.3151 -3.4443 -14 -7 0 -14.125 -6.2363 -2.5832
3 16 -14 -7 0 -13 -8.3151 3.4443 -14.125 -6.2363 2.5832
5 24 -13 -8.3151 3.4443 -14.125 -6.2363 2.5832 -14 -7 0 -13 -6.3639 6.3639
5 24 -13 -8.3151 3.4443 -14 -7 0 -13 -8.3151 -3.4443 -14.125 -6.2363 2.5832
5 24 -13 -8.3151 -3.4443 -14.125 -6.2363 -2.5832 -14 -7 0 -13 -6.3639 -6.3639
5 24 -13 -8.3151 -3.4443 -14 -7 0 -13 -8.3151 3.4443 -14.125 -6.2363 -2.5832
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Confric3 will be updated soon
Based on the images in this review I think confricrib2 should be rotated by 90 degrees.
https://brickset.com/article/57923/why-have-technic-pins-been-changed
One of the three ribs should be inline with the flattened surface on the middle ring.
The same error is also present in 61332 and 65304
https://brickset.com/article/57923/why-have-technic-pins-been-changed
One of the three ribs should be inline with the flattened surface on the middle ring.
The same error is also present in 61332 and 65304
2021-07-13 19:30:01
Might be OK, if the confric3 is changed.
2021-07-14 12:45:01
changed confric3 as it also corrects the same problem on 11214
Adapted to the reshaped axle hole primitives.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
Update ring primitives via script. This will not reset the vote status of the part.
2024-03-25 21:35:31
2024-05-10 11:06:38
2024-05-21 04:09:45
2024-05-28 02:57:18
Release 2024-04
