Official File parts/65817.dat
Part Attributes:
File Header:

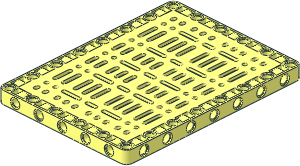

0 Technic Beam 15 x 11 with Perforated Centre Plate 13 x 9
0 Name: 65817.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Frame, Maker Plate, SBC, Spike Prime
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\65817s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\65817s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\65817s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\65817s02.dat
1 16 110 0 0 0 -1 0 -1 0 0 0 0 1 peghole.dat
1 16 90 0 0 0 1 0 0 0 -1 1 0 0 peghole5.dat
0 BFC INVERTNEXT
1 16 108 0 0 0 -16 0 -6 0 0 0 0 6 4-4cyli.dat
1 16 0 0 150 0 0 -1 -1 0 0 0 -1 0 peghole.dat
1 16 0 0 130 -1 0 0 0 0 -1 0 1 0 peghole5.dat
0 BFC INVERTNEXT
1 16 0 0 148 0 0 -6 -6 0 0 0 -16 0 4-4cyli.dat
1 16 -110 0 0 0 1 0 -1 0 0 0 0 -1 peghole.dat
1 16 -90 0 0 0 -1 0 0 0 -1 -1 0 0 peghole5.dat
0 BFC INVERTNEXT
1 16 -108 0 0 0 16 0 -6 0 0 0 0 -6 4-4cyli.dat
1 16 0 0 -150 0 0 1 -1 0 0 0 1 0 peghole.dat
1 16 0 0 -130 1 0 0 0 0 -1 0 -1 0 peghole5.dat
0 BFC INVERTNEXT
1 16 0 0 -148 0 0 6 -6 0 0 0 16 0 4-4cyli.dat
2 24 88 -5.5 5.7616 88 -5.5 -5.7616
4 16 88 -3.5 3.7 88 -3.5 -3.7 88 -5.5 -5.7616 88 -5.5 5.7616
1 16 89 -3.5 0 0 0 1 0 -1 0 3.7 0 0 rect2p.dat
4 16 90 -5.5 -5.7616 90 -3.5 -3.7 90 -3.5 3.7 90 -5.5 5.7616
4 16 90 -8 4 90 -8 -4 90 -5.5 -5.7616 90 -5.5 5.7616
2 24 -5.7616 -5.5 128 5.7616 -5.5 128
4 16 -3.7 -3.5 128 3.7 -3.5 128 5.7616 -5.5 128 -5.7616 -5.5 128
1 16 0 -3.5 129 -3.7 0 0 0 -1 0 0 0 1 rect2p.dat
4 16 5.7616 -5.5 130 3.7 -3.5 130 -3.7 -3.5 130 -5.7616 -5.5 130
4 16 -4 -8 130 4 -8 130 5.7616 -5.5 130 -5.7616 -5.5 130
2 24 -88 -5.5 -5.7616 -88 -5.5 5.7616
4 16 -88 -3.5 -3.7 -88 -3.5 3.7 -88 -5.5 5.7616 -88 -5.5 -5.7616
1 16 -89 -3.5 0 0 0 -1 0 -1 0 -3.7 0 0 rect2p.dat
4 16 -90 -5.5 5.7616 -90 -3.5 3.7 -90 -3.5 -3.7 -90 -5.5 -5.7616
4 16 -90 -8 -4 -90 -8 4 -90 -5.5 5.7616 -90 -5.5 -5.7616
2 24 5.7616 -5.5 -128 -5.7616 -5.5 -128
4 16 3.7 -3.5 -128 -3.7 -3.5 -128 -5.7616 -5.5 -128 5.7616 -5.5 -128
1 16 0 -3.5 -129 3.7 0 0 0 -1 0 0 0 -1 rect2p.dat
4 16 -5.7616 -5.5 -130 -3.7 -3.5 -130 3.7 -3.5 -130 5.7616 -5.5 -130
4 16 4 -8 -130 -4 -8 -130 -5.7616 -5.5 -130 5.7616 -5.5 -130
3 16 -6.25 -10 -103.25 0 -10 -130 6.25 -10 -103.25
1 16 0 -10 -72.55 6.25 0 0 0 1 0 0 0 24.2 rect2p.dat
1 16 0 -10 -22.55 6.25 0 0 0 1 0 0 0 19.3 rect2p.dat
1 16 0 -7.75 -103.25 6.25 0 0 0 0 2.25 0 -1 0 rect2p.dat
1 16 0 -7.75 -96.75 0 0 6.25 2.25 0 0 0 1 0 rect1.dat
1 16 0 -7.75 -48.35 0 0 -6.25 2.25 0 0 0 -1 0 rect1.dat
1 16 0 -7.75 -41.85 0 0 6.25 2.25 0 0 0 1 0 rect1.dat
1 16 0 -7.75 -3.25 0 0 -6.25 2.25 0 0 0 -1 0 rect1.dat
4 16 6.25 -5.5 -48.35 6.25 -5.5 -96.75 -6.25 -5.5 -96.75 -6.25 -5.5 -48.35
4 16 6.25 -5.5 -3.25 6.25 -5.5 -41.85 -6.25 -5.5 -41.85 -6.25 -5.5 -3.25
3 16 0 -10 130 -6.25 -10 103.25 6.25 -10 103.25
1 16 0 -10 72.55 -6.25 0 0 0 1 0 0 0 -24.2 rect2p.dat
1 16 0 -10 22.55 -6.25 0 0 0 1 0 0 0 -19.3 rect2p.dat
1 16 0 -7.75 103.25 -6.25 0 0 0 0 2.25 0 1 0 rect2p.dat
1 16 0 -7.75 96.75 0 0 -6.25 2.25 0 0 0 -1 0 rect1.dat
1 16 0 -7.75 48.35 0 0 6.25 2.25 0 0 0 1 0 rect1.dat
1 16 0 -7.75 41.85 0 0 -6.25 2.25 0 0 0 -1 0 rect1.dat
1 16 0 -7.75 3.25 0 0 6.25 2.25 0 0 0 1 0 rect1.dat
4 16 -6.25 -5.5 96.75 6.25 -5.5 96.75 6.25 -5.5 48.35 -6.25 -5.5 48.35
4 16 -6.25 -5.5 41.85 6.25 -5.5 41.85 6.25 -5.5 3.25 -6.25 -5.5 3.25
4 16 5.7616 -5.5 128 6.25 -5.5 103.25 -6.25 -5.5 103.25 -5.7616 -5.5 128
4 16 6.25 -5.5 -103.25 5.7616 -5.5 -128 -5.7616 -5.5 -128 -6.25 -5.5 -103.25
3 16 -88 -5.5 -5.7616 -88 -5.5 5.7616 -79.75 -5.5 0
3 16 79.75 -5.5 0 88 -5.5 5.7616 88 -5.5 -5.7616
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
See https://raisingrobots.com/product/lego-education-spike-prime-expansion-set-new/
2021-07-04 21:40:01
[PTadmin]
edited the part header.
2021-07-11 04:35:01
2021-07-26 15:25:01
Could use box4o8a primitives.
2023-01-04 20:55:02
2024-01-30 16:42:43
maybe add the Keyword "Raspberry Pi" because this part is made to add one of these...
2024-09-25 03:17:19
2024-09-30 03:57:09
Release 2024-08
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
