Official File parts/67138.dat
Part Attributes:
File Header:

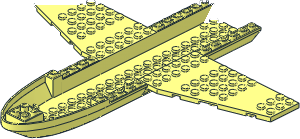

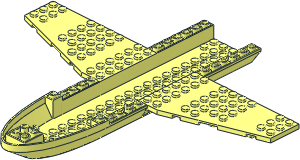

0 Plane Bottom 6 x 24 x 1.667 with Wings 10 x 6 and 20 Centre Holes
0 Name: 67138.dat
0 Author: Bertrand Lequy [Berth]
0 !LDRAW_ORG Part UPDATE 2024-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS aeroplane, Aircraft, Airplane, Fuselage
0 !HISTORY 2024-07-29 [OrionP] Official Update 2024-06
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\67138s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\67138s01.dat
0 // wing studs
1 16 -50 8 60 0 0 -1 0 1 0 1 0 0 stug-1x6.dat
1 16 50 8 60 0 0 -1 0 1 0 1 0 0 stug-1x6.dat
1 16 -70 8 60 0 0 -1 0 1 0 1 0 0 stug-1x6.dat
1 16 70 8 60 0 0 -1 0 1 0 1 0 0 stug-1x6.dat
1 16 -130 8 70 0 0 -1 0 1 0 1 0 0 stug-1x5.dat
1 16 -110 8 70 0 0 -1 0 1 0 1 0 0 stug-1x5.dat
1 16 130 8 70 0 0 -1 0 1 0 1 0 0 stug-1x5.dat
1 16 110 8 70 0 0 -1 0 1 0 1 0 0 stug-1x5.dat
1 16 -150 8 80 0 0 -1 0 1 0 1 0 0 stug-1x4.dat
1 16 -170 8 80 0 0 -1 0 1 0 1 0 0 stug-1x4.dat
1 16 150 8 80 0 0 -1 0 1 0 1 0 0 stug-1x4.dat
1 16 170 8 80 0 0 -1 0 1 0 1 0 0 stug-1x4.dat
1 16 -250 8 90 0 0 -1 0 1 0 1 0 0 stug-1x3.dat
1 16 -230 8 90 0 0 -1 0 1 0 1 0 0 stug-1x3.dat
1 16 250 8 90 0 0 -1 0 1 0 1 0 0 stug-1x3.dat
1 16 230 8 90 0 0 -1 0 1 0 1 0 0 stug-1x3.dat
0 // center studs
1 16 -10 32 100 0 0 -1 0 1 0 1 0 0 stug-1x10.dat
1 16 10 32 100 0 0 -1 0 1 0 1 0 0 stug-1x10.dat
1 16 -10 32 -90 0 0 -1 0 1 0 1 0 0 stug-1x9.dat
1 16 10 32 -90 0 0 -1 0 1 0 1 0 0 stug-1x9.dat
1 16 -20 32 220 0 0 -1 0 1 0 1 0 0 stug-2x2.dat
1 16 20 32 220 0 0 -1 0 1 0 1 0 0 stug-2x2.dat
0 // center holes
1 16 0 35 220 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 200 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 180 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 160 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 140 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 120 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 100 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 80 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 60 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 40 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 20 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 0 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 -20 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 -40 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 -60 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 -80 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 -100 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 -120 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 -140 1 0 0 0 1 0 0 0 1 s\67138s02.dat
1 16 0 35 -160 0 0 -1 0 -1.25 0 1 0 0 stud4a.dat
1 16 0 35 -160 0 0 -8 0 -1 0 8 0 0 4-4edge.dat
1 16 0 32 -160 0 0 -6 0 1 0 6 0 0 4-4edge.dat
1 16 0 35 -160 0 0 -8 0 -1 0 8 0 0 4-4ndis.dat
1 16 0 32 -160 0 0 -6 0 1 0 6 0 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 32 -160 0 0 -6 0 3 0 6 0 0 4-4cyli.dat
5 24 0 0 -240 0 12 -240 5.84 0 -239.03 -5.84 0 -239.03
5 24 0 15.4 -191 0 15.4 -189 .89 15.06 -191.01 -.89 15.06 -191.01
5 24 0 15.4 -211 0 15.4 -209 .89 15.06 -211 -.89 15.06 -211
5 24 0 32 -205 0 29.38 -209 3.27 31.82 -204.68 -3.27 31.82 -204.68
5 24 0 28.07 -211 0 23.48 -218 4.71 23.08 -218 -4.71 23.08 -218
5 24 0 11.04 -237 0 22.17 -220 5.55 11.04 -236.05 -5.55 11.04 -236.05
5 24 0 0 -237 0 11.04 -237 -5.55 0 -236.05 5.55 0 -236.05
5 24 0 40 -199 0 35 -199 -3.79 40 -198.27 3.79 40 -198.27
5 24 0 40 -200 0 12 -240 -3.89 40 -199.27 3.89 40 -199.27
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2021-08-14 09:05:01
2021-08-14 10:00:01
2021-08-15 14:15:01
Oh ! my studs... I must have made something wrong when checking things with DATHeader (it talked about studs)
I'm going to correct that.
I'm going to correct that.
2021-08-15 16:55:01
2021-08-15 17:40:02
2021-09-17 17:15:01
Is this long description necessary?
A detailed description is only needed if there is a risk of confusion with a similar part.
A detailed description is only needed if there is a risk of confusion with a similar part.
Corrected errors in the subfile
Made a new subfile
Changed the description
Existing certification-votes were deleted.
Made a new subfile
Changed the description
Existing certification-votes were deleted.
[PTadmin]
edited the part header.
2022-04-10 20:25:01
2022-04-10 20:25:01
Added a whitespace in the description in front of 1.667
2022-04-10 20:30:01
Not CC_BY_4
2024-05-11 16:36:48
2024-05-18 03:37:30
2024-07-28 02:02:19
2024-07-29 02:26:30
Release 2024-06
