Official File parts/67695.dat
Part Attributes:
File Header:

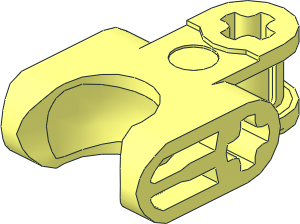

0 Constraction Connector 3 x 2 with Single Round Ball Socket with Straight Closed Sides
0 Name: 67695.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2022-04-05 {LEGO Instructions App} Original part shape
0 !HISTORY 2022-04-06 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\67695s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\67695s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\67695s01.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\67695s01.dat
1 16 0 0 20 1 0 0 0 0 -1 0 1 0 bush0.dat
1 16 20 0 0 0 -40 0 1 0 0 0 0 1 axlehole.dat
3 16 -20 1.3 -18.439 -20 -1.3 -18.439 -20 0 -6
4 16 -20 -1.3 -25.731 -20 -1.3 -18.439 -20 1.3 -18.439 -20 1.3 -25.731
4 16 -19.716 -1.754 -26.555 -20 -1.3 -25.731 -20 1.3 -25.731 -19.716 1.754 -26.555
3 16 -18.622 0 -29.59 -19.716 -1.754 -26.555 -19.716 1.754 -26.555
3 16 20 -1.3 -18.439 20 1.3 -18.439 20 0 -6
4 16 20 1.3 -18.439 20 -1.3 -18.439 20 -1.3 -25.731 20 1.3 -25.731
4 16 20 1.3 -25.731 20 -1.3 -25.731 19.716 -1.754 -26.555 19.716 1.754 -26.555
3 16 19.716 -1.754 -26.555 18.622 0 -29.59 19.716 1.754 -26.555
4 16 10 9 0 0 9 -8.396 -10 9 0 0 9 10
4 16 -2 6.3639 6.3639 -2 -6.3639 6.3639 -2 -6.3639 13.3977 -2 6.3639 13.3977
2 24 -2 -6 13.3977 -2 6 13.3977
4 16 2 -6.3639 13.3977 2 -6.3639 6.3639 2 6.3639 6.3639 2 6.3639 13.3977
2 24 2 -6 13.3977 2 6 13.3977
0 BFC INVERTNEXT
1 16 0 -8.5 5 5 0 0 0 -.5 0 0 0 5 4-4cylc.dat
1 16 0 -9 5 5 0 0 0 1 0 0 0 5 4-4ndis.dat
1 16 0 -10 19.7 0 0 9 0 1 0 -9.3 0 0 1-8cylo.dat
1 16 0 -10 19.7 0 0 9 0 1 0 -9.3 0 0 1-8chrd.dat
1 16 0 -10 20 6 0 0 0 1 0 0 0 -6 2-4ndis.dat
1 16 8.18195 -9.5 13.12397 -1.81805 0 0 0 0 0.5 0 1 0 rect.dat
2 24 10 -9 0 10 -9 13.12397
2 24 10 -10 13.12397 10 -10 20
4 16 10 -6.3639 20 10 -10 20 10 -10 13.12397 10 -9 13.12397
4 16 10 -6.3639 6.3639 10 -6.3639 20 10 -9 13.12397 10 -9 0
4 16 5 -9 10 5 -9 0 10 -9 0 10 -9 13.12397
4 16 10 -10 20 6 -10 20 6 -10 14 10 -10 13.12397
4 16 6.3639 -10 13.12397 10 -10 13.12397 6 -10 14 0 -10 14
1 16 -8.18195 -9.5 13.12397 0 0 -1.81805 -0.5 0 0 0 1 0 rect.dat
2 24 -10 -9 0 -10 -9 13.12397
2 24 -10 -10 13.12397 -10 -10 20
4 16 -10 -10 13.12397 -10 -10 20 -10 -6.3639 20 -10 -9 13.12397
4 16 -10 -9 13.12397 -10 -6.3639 20 -10 -6.3639 6.3639 -10 -9 0
4 16 -10 -9 0 -5 -9 0 -5 -9 10 -10 -9 13.12397
4 16 -6 -10 14 -6 -10 20 -10 -10 20 -10 -10 13.12397
4 16 -6 -10 14 -10 -10 13.12397 -6.3639 -10 13.12397 0 -10 14
1 16 0 -10 19.7 0 0 -9 0 1 0 -9.3 0 0 1-8cylo.dat
1 16 0 -10 19.7 0 0 -9 0 1 0 -9.3 0 0 1-8chrd.dat
4 16 -10 -9 13.12397 -5 -9 10 5 -9 10 10 -9 13.12397
4 16 0 -10 10.4 6.3639 -10 13.12397 0 -10 14 -6.3639 -10 13.12397
3 16 -10 -9 0 0 -9 -8.396 10 -9 0
1 16 0 10 20 10 0 0 0 -1 0 0 0 -10 2-4cylo.dat
1 16 0 10 20 6 0 0 0 -1 0 0 0 -6 2-4ndis.dat
1 16 0 10 20 10 0 0 0 -1 0 0 0 -10 1-8chrd.dat
1 16 0 10 20 0 0 10 0 -1 0 -10 0 0 1-8chrd.dat
4 16 0 10 14 6 10 14 7.071 10 12.929 0 10 10
4 16 10 10 20 7.071 10 12.929 6 10 14 6 10 20
4 16 10 9 0 10 9 20 10 6.3639 20 10 6.3639 6.3639
2 24 10 9 20 10 9 0
4 16 -10 6.3639 20 -10 9 20 -10 9 0 -10 6.3639 6.3639
2 24 -10 9 20 -10 9 0
1 16 0 10 20 -10 0 0 0 -1 0 0 0 -10 1-8chrd.dat
1 16 0 10 20 0 0 -10 0 -1 0 -10 0 0 1-8chrd.dat
4 16 -7.071 10 12.929 -6 10 14 0 10 14 0 10 10
4 16 -6 10 14 -7.071 10 12.929 -10 10 20 -6 10 20
3 16 0 9 10 10 9 20 10 9 0
3 16 0 9 10 -10 9 0 -10 9 20
0 BFC INVERTNEXT
1 16 -.2 0 0 0 .4 0 4 0 0 0 0 4 4-4cylo.dat
1 16 20 0 0 0 -1 0 1 0 0 0 0 1 axlehol2.dat
1 16 .2 0 0 0 -1 0 1 0 0 0 0 1 axlehol2.dat
1 16 -20 0 0 0 1 0 1 0 0 0 0 1 axlehol2.dat
1 16 -.2 0 0 0 1 0 1 0 0 0 0 1 axlehol2.dat
2 24 0.2 -2.265032 -3.204905 -0.2 -2.265032 -3.204905
2 24 0.2 2.265032 -3.204905 -0.2 2.265032 -3.204905
2 24 -0.2 3.204905 -2.265032 0.2 3.204905 -2.265032
2 24 0.2 3.204905 2.265032 -0.2 3.204905 2.265032
2 24 0.2 2.265032 3.204905 -0.2 2.265032 3.204905
2 24 -0.2 -2.265032 3.204905 0.2 -2.265032 3.204905
2 24 0.2 -3.204905 2.265032 -0.2 -3.204905 2.265032
2 24 0.2 -3.204905 -2.265032 -0.2 -3.204905 -2.265032
5 24 20 1.3 -25.731 20 -1.3 -25.731 20 1.3 -18.439 19.716 -1.754 -26.555
5 24 3.362 0 -7.469 0 0 -7.168 3.208 -2.498 -7.673 3.208 2.498 -7.673
5 24 -14.349 0 -29.59 -12.3617 0 -23.29852 -11.965 3.189 -23.162 -11.965 -3.189 -23.162
5 24 -13.0177 0 -20.12452 -11.842 0 -15.182 -11.754 3.448 -15.236 -11.754 -3.448 -15.236
5 24 -19.716 -1.754 -26.555 -19.716 1.754 -26.555 -20 -1.3 -25.731 -18.622 0 -29.59
5 24 -12.3617 0 -23.29852 -13.0177 0 -20.12452 -11.965 -3.189 -23.162 -11.965 3.189 -23.162
5 24 18.622 0 -29.59 14.349 0 -29.59 13.493 -3.277 -28.779 13.493 3.277 -28.779
5 24 19.716 1.754 -26.555 19.716 -1.754 -26.555 20 1.3 -25.731 18.622 0 -29.59
5 24 -9.909 0 -11.748 -7.013 0 -9.208 -9.509 -3.027 -11.735 -9.509 3.027 -11.735
5 24 12.3617 0 -23.29852 13.0177 0 -20.12452 11.965 3.189 -23.162 11.965 -3.189 -23.162
5 24 0 5.808 -8.396 0 9 -8.396 2.617 9 -8.67 -2.617 9 -8.67
5 24 -18.622 0 -29.59 -14.349 0 -29.59 -13.493 -3.277 -28.779 -13.493 3.277 -28.779
5 24 7.013 0 -9.208 3.362 0 -7.469 3.208 2.498 -7.673 3.208 -2.498 -7.673
5 24 0 -2.53 -7.442 0 -5.808 -8.396 -3.208 -2.498 -7.673 3.208 -2.498 -7.673
5 24 -20 -1.3 -25.731 -20 1.3 -25.731 -20 -1.3 -18.439 -19.716 1.754 -26.555
5 24 11.842 0 -15.182 9.909 0 -11.748 11.754 -3.448 -15.236 11.754 3.448 -15.236
5 24 -3.362 0 -7.469 0 0 -7.168 -3.208 2.498 -7.673 -3.208 -2.498 -7.673
5 24 14.349 0 -29.59 12.3617 0 -23.29852 11.965 -3.189 -23.162 11.965 3.189 -23.162
5 24 -11.842 0 -15.182 -9.909 0 -11.748 -11.754 3.448 -15.236 -11.754 -3.448 -15.236
5 24 0 0 -7.168 0 -2.53 -7.442 3.208 -2.498 -7.673 -3.208 -2.498 -7.673
5 24 -7.013 0 -9.208 -3.362 0 -7.469 -3.208 -2.498 -7.673 -3.208 2.498 -7.673
5 24 0 0 -7.168 0 2.53 -7.442 -3.208 2.498 -7.673 3.208 2.498 -7.673
5 24 9.909 0 -11.748 7.013 0 -9.208 9.509 -3.027 -11.735 9.509 3.027 -11.735
5 24 0 -5.808 -8.396 0 -9 -8.396 -2.617 -9 -8.67 2.617 -9 -8.67
5 24 13.0177 0 -20.12452 11.842 0 -15.182 11.754 -3.448 -15.236 11.754 3.448 -15.236
5 24 0 2.53 -7.442 0 5.808 -8.396 3.208 2.498 -7.673 -3.208 2.498 -7.673
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2022-04-06 08:40:01
2022-04-26 20:10:01
2023-05-24 14:33:27
2023-08-19 19:38:05
2023-08-25 01:30:54
Release 2023-04
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
