Official File parts/6808.dat
Part Attributes:
File Header:

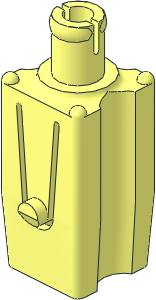

0 ~Scala Support Beam Connector with Pin
0 Name: 6808.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
0 // Bottom
1 16 -18.5 62.5 0 1.43934 0 1.43934 0 -1 0 1.43934 0 -1.43934 1-4ring4.dat
1 16 18.5 62.5 0 -1.43934 0 -1.43934 0 -1 0 -1.43934 0 1.43934 1-4ring4.dat
1 16 0 62.5 18.5 1.43934 0 -1.43934 0 -1 0 -1.43934 0 -1.43934 1-4ring4.dat
1 16 0 62.5 18.5 5.757362 0 -5.757362 0 -1 0 -5.757362 0 -5.757362 1-4edge.dat
1 16 -18.5 62.5 0 5.757362 0 5.757362 0 -1 0 5.757362 0 -5.757362 1-4edge.dat
1 16 18.5 62.5 0 -5.75736 0 -5.75736 0 -1 0 -5.75736 0 5.75736 1-4edge.dat
4 16 -12.5 62.5 -7.95405 -14.5 62.5 -6.932 -12.74264 62.5 -5.75736 -11.3033 62.5 -7.19675
4 16 -12.5 62.5 -12.50005 -14.5 62.5 -12 -14.5 62.5 -6.932 -12.5 62.5 -7.95405
3 16 -14.5 62.5 -12 -12.5 62.5 -12.50005 -12 62.5 -14.5
3 16 -12.5 62.5 12.5 -14.5 62.5 12 -12 62.5 14.5
4 16 12.5 62.5 7.95405 14.5 62.5 6.932 12.743 62.5 5.757 11.30331 62.5 7.19669
4 16 12.50005 62.5 12.5 14.5 62.5 12 14.5 62.5 6.932 12.5 62.5 7.95405
3 16 12.5 62.5 -12.50005 14.5 62.5 -12 12 62.5 -14.5
4 16 -7.95405 62.5 12.5 -6.932 62.5 14.5 -5.757 62.5 12.743 -7.19669 62.5 11.30331
4 16 -12.5 62.5 12.5 -12 62.5 14.5 -6.932 62.5 14.5 -7.95405 62.5 12.5
3 16 12.50005 62.5 12.5 12 62.5 14.5 14.5 62.5 12
4 16 5.75736 62.5 12.74264 6.932 62.5 14.5 7.95405 62.5 12.5 7.19675 62.5 11.3033
4 16 6.932 62.5 14.5 12 62.5 14.5 12.50005 62.5 12.5 7.95405 62.5 12.5
4 16 12 62.5 -14.5 -12 62.5 -14.5 -12.5 62.5 -12.50005 12.5 62.5 -12.50005
4 16 12.743 62.5 -5.757 14.5 62.5 -6.932 12.5 62.5 -7.95405 11.30331 62.5 -7.19669
4 16 14.5 62.5 -6.932 14.5 62.5 -12 12.5 62.5 -12.50005 12.5 62.5 -7.95405
4 16 -12.74264 62.5 5.75736 -14.5 62.5 6.932 -12.5 62.5 7.95405 -11.3033 62.5 7.1967
4 16 -14.5 62.5 6.932 -14.5 62.5 12 -12.5 62.5 12.5 -12.5 62.5 7.95405
1 16 -12 62.5 12 -2.5 0 0 0 -1 0 0 0 2.5 1-4chrd.dat
1 16 12 62.5 -12 2.5 0 0 0 -1 0 0 0 -2.5 1-4chrd.dat
1 16 -12 62.5 -12 -2.5 0 0 0 -1 0 0 0 -2.5 1-4chrd.dat
1 16 12 62.5 12 0 0 2.5 0 -1 0 2.5 0 0 1-4chrd.dat
1 16 -12 62.5 -12 -2.5 0 0 0 -1 0 0 0 -2.5 1-4edge.dat
1 16 -12 62.5 12 -2.5 0 0 0 -1 0 0 0 2.5 1-4edge.dat
1 16 12 62.5 12 0 0 2.5 0 -1 0 2.5 0 0 1-4edge.dat
1 16 12 62.5 -12 2.5 0 0 0 -1 0 0 0 -2.5 1-4edge.dat
2 24 -12 62.5 -14.5 12 62.5 -14.5
2 24 -14.5 62.5 6.932 -14.5 62.5 12
2 24 -12 62.5 14.5 -6.932 62.5 14.5
2 24 6.932 62.5 14.5 12 62.5 14.5
2 24 14.5 62.5 12 14.5 62.5 6.932
2 24 -14.5 62.5 -12 -14.5 62.5 -6.932
2 24 -12.5 62.5 -12.5 12.5 62.5 -12.5
2 24 14.5 62.5 -6.932 14.5 62.5 -12
0 // Inside
2 24 -12.5 5.5 12.50005 -12.5 62.5 12.5
2 24 -12.50005 5.5 -12.50005 -12.5 62.5 -12.5
2 24 12.5 5.5 -12.5001 12.5 62.5 -12.5
2 24 12.5 5.5 12.5 12.5 62.5 12.5
0 BFC INVERTNEXT
1 16 11.90165 34 9.8484 0 .59835 0 -28.5 0 0 0 .37865 -2.273 box2-7.dat
0 BFC INVERTNEXT
1 16 9.8484 34 11.90165 0 .37865 -2.273 -28.5 0 0 0 .59835 0 box2-7.dat
0 BFC INVERTNEXT
1 16 -11.90165 34 9.8484 0 -.59835 0 -28.5 0 0 0 .37865 -2.273 box2-7.dat
0 BFC INVERTNEXT
1 16 -9.8484 34 11.90165 0 -.37865 2.273 -28.5 0 0 0 .59835 0 box2-7.dat
0 BFC INVERTNEXT
1 16 11.90165 34 -9.8484 0 .59835 0 -28.5 0 0 0 -.37865 2.273 box2-7.dat
0 BFC INVERTNEXT
1 16 -11.9017 34 -9.8484 0 -.59835 0 -28.5 0 0 0 -.37865 2.273 box2-7.dat
1 16 -18.5 62.5 0 7.19669 0 7.19669 0 -57 0 7.19669 0 -7.19669 1-4cylo.dat
1 16 18.5 62.5 0 -7.19669 0 -7.19669 0 -57 0 -7.19669 0 7.19669 1-4cylo.dat
1 16 0 62.5 18.5 7.19669 0 -7.19669 0 -57 0 -7.19669 0 -7.19669 1-4cylo.dat
5 24 -11.3034 62.5 -7.1968 -11.3034 5.5 -7.1968 -12.5001 5.5 -7.9541 -9.0968 5.5 -3.8948
5 24 -11.3033 62.5 7.1967 -11.3033 5.5 7.1967 -9.0968 5.5 3.8948 -12.5 5.5 7.9541
5 24 -7.1968 62.5 11.3033 -7.1968 5.5 11.3033 -7.9541 5.5 12.5 -3.8948 5.5 9.0968
5 24 7.1967 62.5 11.3033 7.1967 5.5 11.3033 7.9541 5.5 12.5 3.8948 5.5 9.0968
5 24 11.3033 62.5 7.1967 11.3033 5.5 7.1967 12.5 5.5 7.9541 9.0968 5.5 3.8948
5 24 11.3033 62.5 -7.1968 11.3033 5.5 -7.1968 12.5 5.5 -7.9541 9.0968 5.5 -3.8948
3 16 7.1968 5.5 11.3033 7.9541 5.5 12.5 12.5001 5.5 12.5
4 16 11.3033 5.5 7.1967 7.1968 5.5 11.3033 12.5001 5.5 12.5 12.5 5.5 7.9541
4 16 12.5 5.5 -7.9541 12.5 5.5 -12.5001 -12.50005 5.5 -12.50005 11.3033 5.5 -7.1967
3 16 -11.30331 5.5 -7.19669 -12.50005 5.5 -12.50005 -12.50005 5.5 -7.95405
4 16 -7.1967 5.5 11.3033 -11.3033 5.5 7.1968 -12.5 5.5 12.50005 -7.9541 5.5 12.5
4 16 -8.3224 5.5 0 -11.3033 5.5 7.1968 -7.1967 5.5 11.3033 0 5.5 8.3224
4 16 7.1968 5.5 11.3033 11.3033 5.5 7.1967 8.3224 5.5 0 0 5.5 8.3224
4 16 0 5.5 8.3224 8.3224 5.5 0 11.3033 5.5 -7.1967 -8.3224 5.5 0
4 16 -12.50005 5.5 -12.50005 -11.30335 5.5 -7.19675 -8.322441002 5.5 0 11.3033 5.5 -7.1967
3 16 -11.3033 5.5 7.19675 -12.5 5.5 7.95405 -12.5 5.5 12.50005
0 // Clip Inside
1 16 7.5 7.5 -12.5 -.99145 0 .13053 -.13053 0 -.99145 0 -1 0 2-4ndis.dat
1 16 -7.5 7.5 -12.5 .99145 0 -.13053 -.13053 0 -.99145 0 -1 0 2-4ndis.dat
1 16 0 38.5 -12.5 0 0 6 6 0 0 0 -1 0 3-16ndis.dat
3 16 12.5 62.5 -12.50005 0 44.5 -12.5 6 44.5 -12.5
4 16 12.5 62.5 -12.5 6 44.5 -12.5 5.5434 40.7962 -12.5 5.9938 39.4222 -12.5
4 16 12.5 5.5 -12.50005 12.5 62.5 -12.5 5.9938 39.4222 -12.5 8.49145 7.63053 -12.5
3 16 12.5 5.5 -12.50005 8.62198 6.63908 -12.5 7.63053 6.50855 -12.5
3 16 12.5 5.5 -12.50005 7.63053 6.50855 -12.5 6.63908 6.37802 -12.5
3 16 8.49145 7.63053 -12.5 8.62198 6.63908 -12.5 12.5 5.5 -12.50005
1 16 0 38.5 -12.5 0 0 -6 6 0 0 0 -1 0 3-16ndis.dat
3 16 0 44.5 -12.5 -12.5 62.5 -12.50005 -6 44.5 -12.5
4 16 -5.5434 40.7962 -12.5 -6 44.5 -12.5 -12.5 62.5 -12.5 -5.9938 39.4222 -12.5
4 16 -5.9938 39.4222 -12.5 -12.5 62.5 -12.5 -12.5 5.5 -12.50005 -8.49145 7.63053 -12.5
3 16 -8.62198 6.63908 -12.5 -12.5 5.5 -12.50005 -7.63053 6.50855 -12.5
3 16 -7.63053 6.50855 -12.5 -12.5 5.5 -12.50005 -6.63908 6.37802 -12.5
3 16 -8.62198 6.63908 -12.5 -8.49145 7.63053 -12.5 -12.5 5.5 -12.50005
4 16 6.63908 6.37802 -12.5 -6.63908 6.37802 -12.5 -12.50005 5.5 -12.50005 12.5 5.5 -12.50005
4 16 -6.63908 6.37802 -12.5 6.63908 6.37802 -12.5 6.50855 7.36947 -12.5 -6.50855 7.36947 -12.5
3 16 -12.50005 62.5 -12.50005 0 44.5 -12.5 12.5 62.5 -12.5
2 24 -12.50005 5.5 -12.50005 12.5 5.5 -12.5001
1 16 0 38.5 -12.5 0 0 4 4 0 0 0 1 0 3-16edge.dat
1 16 0 38.5 -12.5 0 0 4 4 0 0 0 -1 0 3-16chrd.dat
1 16 0 38.5 -12.5 0 0 -4 4 0 0 0 1 0 3-16edge.dat
1 16 0 38.5 -12.5 0 0 -4 4 0 0 0 -1 0 3-16chrd.dat
4 16 -4 39.2654 -12.5 -6.50855 7.36947 -12.5 6.50855 7.36947 -12.5 4 39.2654 -12.5
4 16 3.6956 40.0308 -12.5 -3.6956 40.0308 -12.5 -4 39.2654 -12.5 4 39.2654 -12.5
3 16 3.6956 40.0308 -12.5 0 42.5 -12.5 -3.6956 40.0308 -12.5
0 // Clip Walls
0 BFC INVERTNEXT
1 16 -7.5 7.5 -16 .99145 0 -.13053 -.13053 0 -.99145 0 3.5 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 7.5 7.5 -16 -.99145 0 .13053 -.13053 0 -.99145 0 3.5 0 2-4cylo.dat
4 16 8.4915 7.6305 -16 8.49145 7.63053 -12.5 5.9938 39.4222 -12.5 6.0663 38.5 -16
1 16 5.2543 23.31745 -14.25 1.2543 0 0 -15.94795 -1 0 0 0 -1.75 rect2p.dat
1 16 -5.2543 23.31745 -14.25 -1.2543 0 0 -15.94795 -1 0 0 0 1.75 rect2p.dat
1 16 0 38.5 -16 0 0 -4 4 0 0 0 3.5 0 3-16cyli.dat
1 16 0 38.5 -16 0 0 4 4 0 0 0 3.5 0 3-16cyli.dat
1 16 -3.8478 39.6481 -14.25 .1522 0 0 .3827 -1 0 0 0 -1.75 rect2p.dat
1 16 3.8478 39.6481 -14.25 .1522 0 0 -.3827 -1 0 0 0 -1.75 rect2p.dat
4 16 -5.9938 39.4222 -12.5 -8.49145 7.63053 -12.5 -8.4915 7.6305 -16 -6.0663 38.5 -16
2 24 8.4915 7.6305 -16 6.0663 38.5 -16
2 24 -6.0663 38.5 -16 -8.4915 7.6305 -16
2 24 8.49145 7.63053 -12.5 5.9938 39.4222 -12.5
2 24 -5.9938 39.4222 -12.5 -8.49145 7.63053 -12.5
1 16 0 38.5 -16 0 0 6 6 0 0 .375 1 0 3-16ndis.dat
0 BFC INVERTNEXT
1 16 0 38.5 -15.625 0 0 6 6 0 0 0 -.375 0 3-16cyls.dat
0 BFC INVERTNEXT
1 16 0 38.5 -12.5 0 0 6 6 0 0 0 -3.125 0 3-16cyli.dat
1 16 0 38.5 -16 0 0 6 6 0 0 .375 1 0 3-16edge.dat
1 16 0 38.5 -12.5 0 0 6 6 0 0 0 1 0 3-16edge.dat
1 16 0 38.5 -16 0 0 -6 6 0 0 .375 1 0 3-16ndis.dat
0 BFC INVERTNEXT
1 16 0 38.5 -15.625 0 0 -6 6 0 0 0 -.375 0 3-16cyls.dat
0 BFC INVERTNEXT
1 16 0 38.5 -12.5 0 0 -6 6 0 0 0 -3.125 0 3-16cyli.dat
1 16 0 38.5 -16 0 0 -6 6 0 0 .375 1 0 3-16edge.dat
1 16 0 38.5 -12.5 0 0 -6 6 0 0 0 1 0 3-16edge.dat
3 16 5.9938 39.4222 -15.9424 6.0663 38.5 -16 5.9938 39.4222 -12.5
4 16 5.5434 40.7962 -12.5 5.5434 40.7962 -15.625 5.9938 39.4222 -15.9424 5.9938 39.4222 -12.5
3 16 5.5434 40.7962 -15.625 5.5434 40.7962 -15.8565 5.9938 39.4222 -15.9424
3 16 -6.0663 38.5 -16 -5.9938 39.4222 -15.9424 -5.9938 39.4222 -12.5
4 16 -5.9938 39.4222 -15.9424 -5.5434 40.7962 -15.625 -5.5434 40.7962 -12.5 -5.9938 39.4222 -12.5
3 16 -5.5434 40.7962 -15.8565 -5.5434 40.7962 -15.625 -5.9938 39.4222 -15.9424
2 24 5.5434 40.7962 -15.8565 5.9938 39.4222 -15.9424
2 24 5.9938 39.4222 -15.9424 6.0663 38.5 -16
2 24 -5.9938 39.4222 -15.9424 -5.5434 40.7962 -15.8565
2 24 -5.9938 39.4222 -15.9424 -6.0663 38.5 -16
2 24 5.9938 39.4222 -12.5 5.5434 40.7962 -12.5
2 24 -5.9938 39.4222 -12.5 -5.5434 40.7962 -12.5
5 24 5.9938 39.4222 -15.9424 5.9938 39.4222 -12.5 5.5434 40.7962 -15.8565 8.49145 7.63053 -16
5 24 -5.9938 39.4222 -15.9424 -5.9938 39.4222 -12.5 -5.5434 40.7962 -15.8565 -6.0663 38.5 -16
3 16 6 44.5 -15.625 0 44.5 -15.625 12 62.5 -14.5
3 16 6 44.5 -15.625 12 62.5 -14.5 13.5 38.5 -16
3 16 0 44.5 -15.625 -12 62.5 -14.5 12 62.5 -14.5
3 16 0 44.5 -15.625 -6 44.5 -15.625 -12 62.5 -14.5
4 16 -12 62.5 -14.5 -6 44.5 -15.625 -5.5434 40.7962 -15.8565 -13.5 38.5 -16
4 16 6 44.5 -15.625 13.5 38.5 -16 5.9938 39.4222 -15.9424 5.5434 40.7962 -15.8565
3 16 5.9938 39.4222 -15.9424 13.5 38.5 -16 6.0663 38.5 -16
3 16 -13.5 38.5 -16 -5.5434 40.7962 -15.8565 -5.9938 39.4222 -15.9424
3 16 -13.5 38.5 -16 -5.9938 39.4222 -15.9424 -6.0663 38.5 -16
1 16 7.5 7.5 -16 -.99145 0 .13053 -.13053 0 -.99145 0 1 0 2-4ndis.dat
1 16 -7.5 7.5 -16 .99145 0 -.13053 -.13053 0 -.99145 0 1 0 2-4ndis.dat
4 16 8.49145 7.63053 -16 6.0663 38.5 -16 13.5 38.5 -16 13.5 2.5 -16
4 16 -13.5 38.5 -16 -6.0663 38.5 -16 -8.4915 7.6305 -16 -13.5 2.5 -16
3 16 8.49145 7.63053 -16 13.5 2.5 -16 8.62198 6.63908 -16
3 16 8.62198 6.63908 -16 13.5 2.5 -16 7.63053 6.50855 -16
3 16 7.63053 6.50855 -16 13.5 2.5 -16 6.63908 6.37802 -16
3 16 -8.62198 6.63908 -16 -13.5 2.5 -16 -8.4915 7.6305 -16
3 16 -13.5 2.5 -16 -8.62198 6.63908 -16 -7.63053 6.50855 -16
3 16 -13.5 2.5 -16 -7.63053 6.50855 -16 -6.63908 6.37802 -16
4 16 -13.5 2.5 -16 -6.63908 6.37802 -16 6.63908 6.37802 -16 13.5 2.5 -16
4 16 6.50855 7.36947 -16 6.63908 6.37802 -16 -6.63908 6.37802 -16 -6.5086 7.3695 -16
4 16 -4 39.2654 -16 -3.6956 40.0308 -16 3.6956 40.0308 -16 4 39.2654 -16
4 16 -6.5086 7.3695 -16 -4 39.2654 -16 4 39.2654 -16 6.50855 7.36947 -16
1 16 0 38.5 -16 0 0 -4 4 0 0 0 -2 0 4-4cyli.dat
1 16 0 38.5 -18 -4 0 0 0 0 -4 0 -2 0 2-4cyli.dat
1 16 0 38.5 -20 -4 0 0 0 0 -4 0 1 0 2-4chrd.dat
1 16 0 38.5 -18 0 0 -4 4 0 0 0 -2 0 1-4cyls.dat
1 16 0 38.5 -18 0 0 4 4 0 0 0 -2 0 1-4cyls.dat
1 16 0 38.5 -20 -4 0 0 0 0 4 0 1 2 2-4chrd.dat
1 16 0 38.5 -20 -4 0 0 0 0 -4 0 1 0 2-4edge.dat
1 16 0 38.5 -16 0 0 4 -4 0 0 0 1 0 5-16edge.dat
1 16 0 38.5 -16 0 0 -4 -4 0 0 0 1 0 5-16edge.dat
1 16 0 38.5 -20 -4 0 0 0 0 4 0 1 2 2-4edge.dat
2 24 4 38.5 -20 -4 38.5 -20
0 // Outside Bottom
0 BFC INVERTNEXT
1 16 0 62.5 18.5 5.757362 0 -5.757362 0 -24 0 -5.757362 1.5 -5.757362 1-4cyli.dat
0 BFC INVERTNEXT
1 16 -18.5 62.5 0 5.757362 -1.5 5.757362 0 -24 0 5.757362 0 -5.757362 1-4cyli.dat
0 BFC INVERTNEXT
1 16 18.5 62.5 0 -5.757362 1.5 -5.757362 0 -24 0 -5.757362 0 5.757362 1-4cyli.dat
1 16 12 62.5 12 2.5 1.5 0 0 -24 0 0 1.5 2.5 1-4cyli.dat
1 16 -12 62.5 -12 -2.5 -1.5 0 0 -24 0 0 -1.5 -2.5 1-4cyli.dat
1 16 12 62.5 -12 0 1.5 2.5 0 -24 0 -2.5 -1.5 0 1-4cyli.dat
1 16 -12 62.5 12 -2.5 -1.5 0 0 -24 0 0 1.5 2.5 1-4cyli.dat
1 16 6.3445 50.5 14.3715 .5875 0 0 0 0 12 .8785 -1 -.75 rect2a.dat
1 16 -6.3445 50.5 14.3715 -.5875 0 0 0 0 12 .8785 -1 -.75 rect2a.dat
1 16 -14.3715 50.5 6.3445 -.8785 1 .75 0 0 12 .5875 0 0 rect2a.dat
1 16 14.3715 50.5 -6.3445 .8785 -1 -.75 0 0 12 -.5875 0 0 rect2a.dat
1 16 14.3715 50.5 6.3445 .8785 -1 -.75 0 0 12 .5875 0 0 rect2a.dat
1 16 -14.3715 50.5 -6.3445 -.8785 1 .75 0 0 12 -.5875 0 0 rect2a.dat
4 16 12 62.5 14.5 6.932 62.5 14.5 6.932 38.5 16 13.5 38.5 16
4 16 -6.932 62.5 14.5 -12 62.5 14.5 -13.5 38.5 16 -6.932 38.5 16
4 16 14.5 62.5 -12 14.5 62.5 -6.932 16 38.5 -6.932 16 38.5 -13.5
4 16 16 38.5 13.5 16 38.5 6.932 14.5 62.5 6.932 14.5 62.5 12
4 16 -14.5 62.5 12 -14.5 62.5 6.932 -16 38.5 6.932 -16 38.5 13.5
4 16 -16 38.5 -13.5 -16 38.5 -6.932 -14.5 62.5 -6.932 -14.5 62.5 -12
1 16 15.1215 20.5 -6.3445 .8785 -1 0 0 0 -18 -.5875 0 0 rect1.dat
1 16 6.3445 20.5 15.1215 .5875 0 0 0 0 -18 .8785 -1 0 rect1.dat
0 BFC INVERTNEXT
1 16 0 38.5 20 5.757362 0 -5.757362 0 -36 0 -5.757362 0 -5.757362 1-4cyli.dat
1 16 -6.3445 20.5 15.1215 -.5875 0 0 0 0 -18 .8785 -1 0 rect1.dat
1 16 -15.1215 20.5 6.3445 -.8785 1 0 0 0 -18 .5875 0 0 rect1.dat
0 BFC INVERTNEXT
1 16 -20 38.5 0 5.757362 0 5.757362 0 -36 0 5.757362 0 -5.757362 1-4cyli.dat
1 16 -15.1215 20.5 -6.3445 -.8785 1 0 0 0 -18 -.5875 0 0 rect1.dat
1 16 13.5 2.5 13.5 2.5 0 0 0 36 0 0 0 2.5 1-4cyli.dat
1 16 -13.5 2.5 13.5 -2.5 0 0 0 36 0 0 0 2.5 1-4cyli.dat
1 16 13.5 2.5 -13.5 2.5 0 0 0 36 0 0 0 -2.5 1-4cyli.dat
1 16 -13.5 2.5 -13.5 -2.5 0 0 0 36 0 0 0 -2.5 1-4cyli.dat
0 BFC INVERTNEXT
1 16 20 38.5 0 -5.757362 0 -5.757362 0 -36 0 -5.757362 0 5.757362 1-4cyli.dat
1 16 15.1215 20.5 6.3445 .8785 -1 0 0 0 -18 .5875 0 0 rect1.dat
4 16 11 2.5 16 13.5 2.5 16 13.5 38.5 16 6.932 38.5 16
4 16 -6.932 38.5 16 -13.5 38.5 16 -13.5 2.5 16 -11 2.5 16
3 16 -11 2.5 16 -6.932 2.5 16 -6.932 38.5 16
3 16 6.932 38.5 16 6.932 2.5 16 11 2.5 16
4 16 -16 2.5 11 -16 2.5 13.5 -16 38.5 13.5 -16 38.5 6.932
4 16 -16 38.5 -6.932 -16 38.5 -13.5 -16 2.5 -13.5 -16 2.5 -11
3 16 -16 2.5 -11 -16 2.5 -6.932 -16 38.5 -6.932
3 16 -16 38.5 6.932 -16 2.5 6.932 -16 2.5 11
4 16 16 2.5 -11 16 2.5 -13.5 16 38.5 -13.5 16 38.5 -6.932
4 16 16 38.5 6.932 16 38.5 13.5 16 2.5 13.5 16 2.5 11
3 16 16 2.5 11 16 2.5 6.932 16 38.5 6.932
3 16 16 38.5 -6.932 16 2.5 -6.932 16 2.5 -11
0 // Top Pin
1 16 0 -2.5 0 1 0 0 0 1 0 0 0 -1 conscala.dat
1 16 0 -2.5 0 4.5 0 0 0 1 0 0 0 -4.5 4-4disc.dat
1 16 0 -2.5 0 4.5 0 0 0 -1 0 0 0 -4.5 4-4edge.dat
1 16 0 0 0 7.5 0 0 0 -2.5 0 0 0 -7.5 4-4cyli.dat
1 16 0 0 0 7.5 0 0 0 -1 0 0 0 -7.5 4-4edge.dat
1 16 0 0 0 2.5 0 0 0 1 0 0 0 -2.5 4-4ring3.dat
1 16 0 0 0 .5 0 0 0 1 0 0 0 -.5 4-4ring22.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 4-4ring10.dat
0 BFC INVERTNEXT
1 16 0 0 0 9.89949 0 -9.89949 0 14 0 -9.89949 0 -9.89949 t04i1786.dat
1 16 0 2.5 0 1 0 0 0 1 0 0 0 -1 s\6808s01.dat
1 16 0 2.5 0 1 0 0 0 1 0 0 0 1 s\6808s01.dat
1 16 0 2.5 0 -1 0 0 0 1 0 0 0 -1 s\6808s01.dat
1 16 0 2.5 0 -1 0 0 0 1 0 0 0 1 s\6808s01.dat
1 16 0 2.5 0 0 0 1 0 1 0 1 0 0 s\6808s01.dat
1 16 0 2.5 0 0 0 -1 0 1 0 1 0 0 s\6808s01.dat
1 16 0 0 0 11.5 0 0 0 -1 0 0 0 -11.5 4-4edge.dat
1 16 13.5 2.5 13.5 2.5 0 0 0 -2.5 0 0 0 -2.5 4-8sphe.dat
1 16 -13.5 2.5 13.5 2.5 0 0 0 -2.5 0 0 0 -2.5 4-8sphe.dat
1 16 13.5 2.5 -13.5 2.5 0 0 0 -2.5 0 0 0 -2.5 4-8sphe.dat
1 16 -13.5 2.5 -13.5 2.5 0 0 0 -2.5 0 0 0 -2.5 4-8sphe.dat
1 16 -13.5 2.5 13.5 -2.5 0 0 0 1 0 0 0 -2.5 3-4ndis.dat
1 16 13.5 2.5 13.5 2.5 0 0 0 1 0 0 0 -2.5 3-4ndis.dat
1 16 -13.5 2.5 -13.5 -2.5 0 0 0 1 0 0 0 2.5 3-4ndis.dat
1 16 13.5 2.5 -13.5 2.5 0 0 0 1 0 0 0 2.5 3-4ndis.dat
1 16 -13.5 2.5 -13.5 -2.5 0 0 0 1 0 0 0 2.5 3-4edge.dat
1 16 -13.5 2.5 13.5 -2.5 0 0 0 1 0 0 0 -2.5 3-4edge.dat
1 16 13.5 2.5 13.5 2.5 0 0 0 1 0 0 0 -2.5 3-4edge.dat
1 16 13.5 2.5 -13.5 2.5 0 0 0 1 0 0 0 2.5 3-4edge.dat
4 16 -5.358 2.5 -12.935 -9.899 2.5 -9.899 -11 2.5 -11 -11 2.5 -13.5
4 16 -5.358 2.5 -12.935 -11 2.5 -13.5 -11 2.5 -16 0 2.5 -14
4 16 11 2.5 -11 9.899 2.5 -9.899 5.358 2.5 -12.935 11 2.5 -13.5
4 16 11 2.5 -16 11 2.5 -13.5 5.358 2.5 -12.935 0 2.5 -14
3 16 11 2.5 -16 0 2.5 -14 -11 2.5 -16
2 24 16 2.5 -13.5 16 2.5 -11
2 24 16 2.5 11 16 2.5 13.5
2 24 13.5 2.5 16 11 2.5 16
2 24 -11 2.5 16 -13.5 2.5 16
2 24 -16 2.5 11 -16 2.5 13.5
2 24 -16 2.5 -11 -16 2.5 -13.5
2 24 -13.5 2.5 -16 -11 2.5 -16
2 24 -11 2.5 -16 11 2.5 -16
2 24 11 2.5 -16 13.5 2.5 -16
0 // Condlines
5 24 14.45675 38.5 -15.80975 13.5 38.5 -16 13.5 2.5 -16 12 62.5 -14.5
5 24 15.26775 38.5 -15.26775 14.45675 38.5 -15.80975 12.95675 62.5 -14.30975 14.45675 2.5 -15.80975
5 24 15.26775 38.5 -15.26775 15.80975 38.5 -14.45675 15.80975 2.5 -14.45675 14.30975 62.5 -12.95675
5 24 15.80975 38.5 -14.45675 16 38.5 -13.5 14.5 62.5 -12 16 2.5 -13.5
5 24 -15.80975 38.5 -14.45675 -16 38.5 -13.5 -16 2.5 -13.5 -14.5 62.5 -12
5 24 -15.26775 38.5 -15.26775 -15.80975 38.5 -14.45675 -14.30975 62.5 -12.95675 -15.80975 2.5 -14.45675
5 24 -15.26775 38.5 -15.26775 -14.45675 38.5 -15.80975 -14.45675 2.5 -15.80975 -12.95675 62.5 -14.30975
5 24 -14.45675 38.5 -15.80975 -13.5 38.5 -16 -12 62.5 -14.5 -13.5 2.5 -16
5 24 -14.45675 38.5 15.80975 -13.5 38.5 16 -13.5 2.5 16 -12 62.5 14.5
5 24 -15.26775 38.5 15.26775 -14.45675 38.5 15.80975 -12.95675 62.5 14.30975 -14.45675 2.5 15.80975
5 24 -15.26775 38.5 15.26775 -15.80975 38.5 14.45675 -15.80975 2.5 14.45675 -14.30975 62.5 12.95675
5 24 -15.80975 38.5 14.45675 -16 38.5 13.5 -14.5 62.5 12 -16 2.5 13.5
5 24 15.80975 38.5 14.45675 16 38.5 13.5 16 2.5 13.5 14.5 62.5 12
5 24 15.26775 38.5 15.26775 15.80975 38.5 14.45675 14.30975 62.5 12.95675 15.80975 2.5 14.45675
5 24 15.26775 38.5 15.26775 14.45675 38.5 15.80975 14.45675 2.5 15.80975 12.95675 62.5 14.30975
5 24 14.45675 38.5 15.80975 13.5 38.5 16 12 62.5 14.5 13.5 2.5 16
5 24 -13.5 38.5 -16 -6.0663 38.5 -16 -12 62.5 -14.5 -13.5 2.5 -16
5 24 6.0663 38.5 -16 13.5 38.5 -16 13.5 2.5 -16 12 62.5 -14.5
5 24 16 38.5 -13.5 16 38.5 -6.932 14.5 62.5 -6.932 16 2.5 -6.932
5 24 16 38.5 -6.932 14.2426 38.5 -5.7574 12.7426 62.5 -5.7574 14.2426 2.5 -5.7574
5 24 14.2426 38.5 -5.7574 12.4774 38.5 -3.1159 10.9774 62.5 -3.1159 12.4774 2.5 -3.1159
5 24 11.8579 38.5 0 12.4774 38.5 -3.1159 11.8579 2.5 0 10.3579 62.5 0
5 24 12.4774 38.5 3.1159 11.8579 38.5 0 10.3579 62.5 0 11.8579 2.5 0
5 24 12.4774 38.5 3.1159 14.2426 38.5 5.7574 10.9774 62.5 3.1159 12.4774 2.5 3.1159
5 24 16 38.5 6.932 14.2426 38.5 5.7574 12.7426 62.5 5.7574 14.2426 2.5 5.7574
5 24 11.8579 1.2079 0 11.8579 2.5 0 12.4774 2.5 -3.1159 12.4774 2.5 3.1159
5 24 11.8579 1.2079 0 11.69 .9562 0 10.801 .9562 4.4744 10.801 .9562 -4.4744
5 24 11.69 .9562 0 11.4996 0 0 10.6246 0 -4.4016 10.6246 0 4.4016
5 24 13.5 38.5 16 6.932 38.5 16 6.932 62.5 14.5 6.932 2.5 16
5 24 6.932 38.5 16 5.7574 38.5 14.2426 5.7574 62.5 12.7426 5.7574 2.5 14.2426
5 24 5.7574 38.5 14.2426 3.1159 38.5 12.4774 3.1159 62.5 10.9774 3.1159 2.5 12.4774
5 24 0 38.5 11.8579 3.1159 38.5 12.4774 0 2.5 11.8579 0 62.5 10.3579
5 24 -3.1159 38.5 12.4774 0 38.5 11.8579 0 62.5 10.3579 0 2.5 11.8579
5 24 -3.1159 38.5 12.4774 -5.7574 38.5 14.2426 -3.1159 62.5 10.9774 -3.1159 2.5 12.4774
5 24 -6.932 38.5 16 -5.7574 38.5 14.2426 -5.7574 62.5 12.7426 -5.7574 2.5 14.2426
5 24 0 1.2079 11.8579 0 2.5 11.8579 3.1159 2.5 12.4774 -3.1159 2.5 12.4774
5 24 0 1.2079 11.8579 0 .9562 11.69 -4.4744 .9562 10.801 4.4744 .9562 10.801
5 24 0 .9562 11.69 0 0 11.4996 4.4016 0 10.6246 -4.4016 0 10.6246
5 24 -16 38.5 13.5 -16 38.5 6.932 -14.5 62.5 6.932 -16 2.5 6.932
5 24 -16 38.5 6.932 -14.2426 38.5 5.7574 -12.7426 62.5 5.7574 -14.2426 2.5 5.7574
5 24 -14.2426 38.5 5.7574 -12.4774 38.5 3.1159 -10.9774 62.5 3.1159 -12.4774 2.5 3.1159
5 24 -11.8579 38.5 0 -12.4774 38.5 3.1159 -11.8579 2.5 0 -10.3579 62.5 0
5 24 -12.4774 38.5 -3.1159 -11.8579 38.5 0 -10.3579 62.5 0 -11.8579 2.5 0
5 24 -12.4774 38.5 -3.1159 -14.2426 38.5 -5.7574 -10.9774 62.5 -3.1159 -12.4774 2.5 -3.1159
5 24 -16 38.5 -6.932 -14.2426 38.5 -5.7574 -12.7426 62.5 -5.7574 -14.2426 2.5 -5.7574
5 24 -11.8579 1.2079 0 -11.8579 2.5 0 -12.4774 2.5 3.1159 -12.4774 2.5 -3.1159
5 24 -11.8579 1.2079 0 -11.69 .9562 0 -10.801 .9562 -4.4744 -10.801 .9562 4.4744
5 24 -11.69 .9562 0 -11.4996 0 0 -10.6246 0 4.4016 -10.6246 0 -4.4016
5 24 16 38.5 13.5 16 38.5 6.932 14.5 62.5 12 16 2.5 6.932
5 24 -13.5 38.5 16 -6.932 38.5 16 -6.932 62.5 14.5 -6.932 2.5 16
5 24 -16 38.5 -13.5 -16 38.5 -6.932 -14.5 62.5 -6.932 -16 2.5 -6.932
5 24 4 39.2654 -16 4 39.2654 -12.5 3.6956 40.0308 -12.5 6.50855 7.36947 -12.5
5 24 -4 39.2654 -16 -4 39.2654 -12.5 -3.6956 40.0308 -12.5 -6.5086 7.3695 -12.5
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2021-03-27 21:10:01
added condlines
Existing certification-votes were deleted.
Existing certification-votes were deleted.
There are stil (at least) 8 condlines missing at the inside.
added conds
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2022-05-28 08:40:01
Update ring primitives via script. This will not reset the vote status of the part.
2024-05-09 14:07:17
2024-05-21 04:13:10
2024-05-28 02:57:19
Release 2024-04
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
2 24 12.5 6.5 12.5 12.5 62.5 12.5
This file misses several condlines.
