File Detail parts/71372k02.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/71372k02.dat

Part Attributes: Base Part: 71372-f1.dat

File Header:

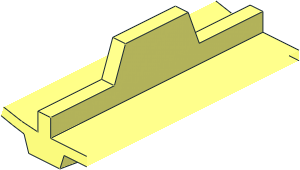

0 ~Technic Tread Segment - Transition
0 Name: 71372k02.dat
0 Author: Marc Klein [marckl]
0 !LDRAW_ORG Part Flexible_Section UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP This segment provides a transition from a straight section of tread to a curved section.

0 BFC CERTIFY CCW

0 !HISTORY 2000-09-30 [PTadmin] Official Update 2000-02
0 !HISTORY 2007-10-28 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2014-11-21 [roland] Auto-corrected with libfix version of LDCad 1.4
0 !HISTORY 2016-12-23 [MagFors] Made BFC, used primitives
0 !HISTORY 2024-11-06 [MagFors] Renumbered from 681
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10

Show contents

1 16 0 29 17.5 -1.5 0 0 0 0 -2 0 7.5 0 box2-7.dat
4 16 -4.78 32.7 25 -7.52 32.1 25 -5.34 30.5 25 -1.5 31 25
4 16 -4.78 32.7 25 -1.5 31 25 1.5 31 25 4.67 33 25
4 16 -10.2022 31.3993 25 -9.5846 29.4985 25 -5.34 30.5 25 -7.52 32.1 25
4 16 -3.67 36 25 -4.78 32.7 25 4.67 33 25 3.67 36 25
4 16 4.67 33 25 1.5 31 25 10 31 25 10 33 25
4 16 3.67 36 -25 4.67 33 -25 -4.78 32.7 -25 -3.67 36 -25
4 16 -5.34 30.5 -25 -7.52 32.1 -25 -4.78 32.7 -25 -1.5 31 -25
1 16 0 29 -17.5 -1.5 0 0 0 0 -2 0 -7.5 0 box2-7.dat
4 16 -7.52 32.1 -25 -5.34 30.5 -25 -9.5846 29.4985 -25 -10.2022 31.3993 -25
4 16 -1.5 31 -25 -4.78 32.7 -25 4.67 33 -25 1.5 31 -25
4 16 1.5 31 -25 4.67 33 -25 10 33 -25 10 31 -25
1 16 0 38 0 0 0 -3 0 -1 0 -10 0 0 rect2p.dat
4 16 4.67 33 25 4.67 33 -25 3 38 10 3.67 36 25
4 16 4.67 33 -25 3.67 36 -25 3 38 -10 3 38 10
4 16 -4.78 32.7 -25 -4.78 32.7 25 -3 38 -10 -3.67 36 -25
4 16 -4.78 32.7 25 -3.67 36 25 -3 38 10 -3 38 -10
3 16 -1.5 31 -25 -1.5 27 -25 -1.5 27 -10
4 16 -1.5 31 25 -1.5 31 -25 -1.5 27 -10 -1.5 27 10
3 16 -1.5 31 25 -1.5 27 10 -1.5 27 25
4 16 -1.5 27 -10 -1.5 20 -7.38 -1.5 20 7.38 -1.5 27 10
1 16 0 23.5 1.31 1.5 0 0 0 0 -3.5 0 7.38 -1.31 box2-5.dat
1 16 0 23.5 -8.69 -1.5 0 0 0 1 3.5 0 0 -1.31 rect3.dat
4 16 1.5 27 -10 1.5 31 -25 1.5 31 25 1.5 27 10
3 16 1.5 31 25 1.5 27 25 1.5 27 10
3 16 1.5 27 -25 1.5 31 -25 1.5 27 -10
4 16 1.5 27 10 1.5 20 7.38 1.5 20 -7.38 1.5 27 -10
1 16 -8.8611 31.7496 0 1.34112 0 0 0.35036 -1 0 0 0 -25 rect2p.dat
1 16 -6.15 32.4 0 0 0 1.37 0 -1 0.3 25 0 0 rect3.dat
1 16 -3.42 30.75 0 0 0 1.92 0 1 0.25 -25 0 0 rect3.dat
1 16 -7.4623 29.9992 0 -2.12232 0 0 -0.50075 1 0 0 0 -25 rect2p.dat
1 16 5.75 31 0 0 0 -4.25 0 1 0 25 0 0 rect3.dat
1 16 7.335 33 0 0 0 -2.665 0 -1 0 -25 0 0 rect3.dat
4 16 -3.67 36 25 3.67 36 25 3 38 10 -3 38 10
4 16 3.67 36 -25 -3.67 36 -25 -3 38 -10 3 38 -10
2 24 3.67 36 25 4.67 33 25
2 24 -4.78 32.7 25 -3.67 36 25
2 24 -3.67 36 25 3.67 36 25
2 24 4.67 33 -25 3.67 36 -25
2 24 -3.67 36 -25 -4.78 32.7 -25
2 24 3.67 36 -25 -3.67 36 -25
2 24 3.67 36 25 3 38 10
2 24 3 38 -10 3.67 36 -25
2 24 -3.67 36 -25 -3 38 -10
2 24 -3 38 10 -3.67 36 25
5 24 3 38 10 -3 38 10 -3 38 -10 3.67 36 25
5 24 -3 38 -10 3 38 -10 3 38 10 -3.67 36 -25
5 24 -7.52 32.1 25 -7.52 32.1 -25 -10.2022 31.3993 25 -4.78 32.7 25
5 24 -5.34 30.5 25 -5.34 30.5 -25 -1.5 31 25 -9.5846 29.4985 25
5 24 -9.5846 29.4985 25 -9.5846 29.4985 -25 -5.34 30.5 -25 -13.6073 27.8138 -25
5 24 -10.2022 31.3993 25 -10.2022 31.3993 -25 -7.52 32.1 -25 -12.7841 30.3896 -25

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Roland Melkert [roland]

initially submitted the part.

2014-12-23 18:00:02

Steffen [Steffen]

posted a vote of Hold.

2015-01-06 22:40:00

type needs to be changed to subpart

Magnus Forsberg [MagFors]

submitted a new version of the part.

2016-12-25 21:00:01

I've sent 682 and the complete tread to Admin. They're still official parts.
The issue with the parttype is still unsolved.

Existing certification-votes were deleted.

Steffen [Steffen]

made the following comment.

2016-12-26 07:30:00

at least the type stated in the header of this file should be changed to "subpart"

Steffen [Steffen]

submitted a new version of the part.

2016-12-26 21:35:00

changed type to subpart

Existing certification-votes were deleted.

Magnus Forsberg [MagFors]

made the following comment.

2016-12-27 19:40:00

I don't mind the change, but I find it odd that we have two different ways of sorting these.
I can find ~15 different files with segments of parts in the Part-folder with parttype Part,
even though they are segments of a part (i.e. subpart). Most of them are official files.
Make a search in LDFind on "segment".

Steffen [Steffen]

made the following comment.

2016-12-27 20:05:00

that's an old story.

these "parts" are only in the "parts" folder so that MLCad users will find them easily for use with LSYNTH.

in fact, they are subparts and belong into parts\s

Magnus Forsberg [MagFors]

made the following comment.

2016-12-29 17:40:00

I think the question is rather; Will LSynth find them if they have parttype "subfile"?

Philippe Hurbain [Philo]

posted a vote of Certify.

2016-12-29 17:55:00

Steffen [Steffen]

made the following comment.

2016-12-29 18:20:00

yes, it will. it is very old and does not look at that header line...

Magnus Forsberg [MagFors]

posted a vote of Hold.

2018-11-03 14:40:01

Renumber to flexible section.

Magnus Forsberg [MagFors]

submitted a new version of the part.

2024-11-06 21:19:58

Magnus Forsberg [MagFors]

edited the part header.

2024-11-06 21:21:01

Header Edits

qual:
Flexible_Section
to
Flexible_Section
keywords:

to

Magnus Forsberg [MagFors]

renamed the part.

2024-11-06 21:26:23

"parts/681.dat" to "parts/71372k02.dat"

Philippe Hurbain [Philo]

edited the part header.

2024-11-07 08:23:43

Header Edits

history:
0 !HISTORY 2000-09-30 [PTadmin] Official Update 2000-02 0 !HISTORY 2007-10-28 [PTadmin] Header formatted for Contributor Agreement 0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01 0 !HISTORY 2014-11-21 [roland] Auto-corrected with libfix version of LDCad 1.4 0 !HISTORY 2016-12-23 [MagFors] Made BFC, used primititves 0 !HISTORY 2024-11-06 [MagFors] Renumbered from 681
to
0 !HISTORY 2000-09-30 [PTadmin] Official Update 2000-02 0 !HISTORY 2007-10-28 [PTadmin] Header formatted for Contributor Agreement 0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01 0 !HISTORY 2014-11-21 [roland] Auto-corrected with libfix version of LDCad 1.4 0 !HISTORY 2016-12-23 [MagFors] Made BFC, used primitives 0 !HISTORY 2024-11-06 [MagFors] Renumbered from 681
keywords:

to
