Official File parts/69638.dat
Part Attributes:
File Header:

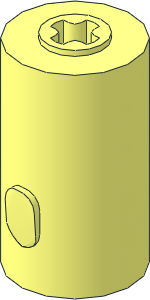

0 ~Technic Shock Absorber 18L Cap
0 Name: 69638.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BMW M 1000 RR, Set 42130
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
1 16 0 58 0 -16.28571 0 0 0 -56.5 0 0 0 16.28571 4-4cylc.dat
1 16 0 0 0 1 0 0 0 20 0 0 0 1 axlehole.dat
1 16 0 20 0 1 0 0 0 1 0 0 0 1 axl5end.dat
1 16 0 20 0 1 0 0 0 1 0 0 0 1 axlehol2.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axlehol2.dat
1 16 0 0 0 2 0 0 0 1 0 0 0 2 4-4ring3.dat
1 16 0 0 0 8 0 0 0 1.5 0 0 0 8 4-4cylo.dat
1 16 0 1.5 0 -16.28571 0 0 0 1 0 0 0 16.28571 1-4chrd.dat
4 16 -8 1.5 0 0 1.5 8 0 1.5 16.2857 -16.2857 1.5 0
1 16 0 1.5 0 0 0 16.28571 0 1 0 16.28571 0 0 1-4chrd.dat
4 16 0 1.5 8 8 1.5 0 16.2857 1.5 0 0 1.5 16.2857
1 16 0 1.5 0 16.28571 0 0 0 1 0 0 0 -16.28571 1-4chrd.dat
4 16 8 1.5 0 0 1.5 -8 0 1.5 -16.2857 16.2857 1.5 0
1 16 0 1.5 0 0 0 -16.28571 0 1 0 -16.28571 0 0 1-4chrd.dat
4 16 0 1.5 -8 -8 1.5 0 -16.2857 1.5 0 0 1.5 -16.2857
1 16 0 37 -18 -4.5 0 0 0 0 -4.5 0.8948 1.7143 0 1-4cylo.dat
1 16 0 37 -18 4.5 0 0 0 0 -4.5 0.8948 1.7143 0 1-4cylo.dat
1 16 0 37 -18 -4.5 1 0 0 0 -4.5 0.8948 0 0 1-4chrd.dat
1 16 0 37 -18 4.5 -1 0 0 0 -4.5 0.8948 0 0 1-4chrd.dat
1 16 0 43 -16.2857 0 0 -4.5 4.5 0 0 0 -1.3 0.8948 1-4cyls.dat
1 16 0 43 -16.2857 0 1 -4.5 4.5 0 0 0 0 0.8948 1-4edge.dat
1 16 0 43 -17.5857 0 1 -4.5 4.5 0 0 1.3 0 0.8948 1-4edge.dat
1 16 0 43 -17.5857 0 1 -4.5 4.5 0 0 1.3 0 0.8948 1-4chrd.dat
1 16 0 43 -16.2857 0 0 4.5 4.5 0 0 0 -1.3 0.8948 1-4cyls.dat
1 16 0 43 -16.2857 0 -1 4.5 4.5 0 0 0 0 0.8948 1-4edge.dat
1 16 0 43 -17.5857 0 -1 4.5 4.5 0 0 1.3 0 0.8948 1-4edge.dat
1 16 0 43 -17.5857 0 -1 4.5 4.5 0 0 1.3 0 0.8948 1-4chrd.dat
3 16 0 32.5 -18 -4.5 37 -17.1052 -4.5 43 -16.6909
3 16 -4.5 43 -16.6909 0 47.5 -16.2857 0 32.5 -18
2 24 -4.5 43 -15.3909 -4.5 37 -15.3909
2 24 -4.5 43 -16.6909 -4.5 37 -17.1052
4 16 -4.5 43 -15.3909 -4.5 43 -16.6909 -4.5 37 -17.1052 -4.5 37 -15.3909
5 24 -4.5 43 -16.6909 0 47.5 -16.2857 -4.1576 44.7222 -16.2615 0 32.5 -18
5 24 -4.5 43 -16.6909 0 32.5 -18 0 47.5 -16.2857 -4.5 37 -17.1052
5 24 -4.5 37 -17.1052 0 32.5 -18 -4.1576 35.2779 -17.1733 -4.5 43 -16.6909
3 16 0 32.5 -18 0 47.5 -16.2857 4.5 43 -16.6909
3 16 4.5 43 -16.6909 4.5 37 -17.1052 0 32.5 -18
2 24 4.5 43 -15.3909 4.5 37 -15.3909
2 24 4.5 43 -16.6909 4.5 37 -17.1052
4 16 4.5 37 -17.1052 4.5 43 -16.6909 4.5 43 -15.3909 4.5 37 -15.3909
5 24 4.5 43 -16.6909 0 47.5 -16.2857 4.1576 44.7222 -16.2615 0 32.5 -18
5 24 0 32.5 -18 4.5 43 -16.6909 0 47.5 -16.2857 4.5 37 -17.1052
5 24 4.5 37 -17.1052 0 32.5 -18 4.1576 35.2779 -17.1733 4.5 43 -16.6909
1 16 0 37 18 -4.5 0 0 0 0 -4.5 -0.8948 -1.7143 0 1-4cylo.dat
1 16 0 37 18 4.5 0 0 0 0 -4.5 -0.8948 -1.7143 0 1-4cylo.dat
1 16 0 37 18 -4.5 1 0 0 0 -4.5 -0.8948 0 0 1-4chrd.dat
1 16 0 37 18 4.5 -1 0 0 0 -4.5 -0.8948 0 0 1-4chrd.dat
1 16 0 43 16.2857 0 0 -4.5 4.5 0 0 0 1.3 -0.8948 1-4cyls.dat
1 16 0 43 16.2857 0 1 -4.5 4.5 0 0 0 0 -0.8948 1-4edge.dat
1 16 0 43 17.5857 0 1 -4.5 4.5 0 0 -1.3 0 -0.8948 1-4edge.dat
1 16 0 43 17.5857 0 1 -4.5 4.5 0 0 -1.3 0 -0.8948 1-4chrd.dat
1 16 0 43 16.2857 0 0 4.5 4.5 0 0 0 1.3 -0.8948 1-4cyls.dat
1 16 0 43 16.2857 0 -1 4.5 4.5 0 0 0 0 -0.8948 1-4edge.dat
1 16 0 43 17.5857 0 -1 4.5 4.5 0 0 -1.3 0 -0.8948 1-4edge.dat
1 16 0 43 17.5857 0 -1 4.5 4.5 0 0 -1.3 0 -0.8948 1-4chrd.dat
3 16 -4.5 37 17.1052 0 32.5 18 -4.5 43 16.6909
3 16 0 47.5 16.2857 -4.5 43 16.6909 0 32.5 18
2 24 -4.5 43 15.3909 -4.5 37 15.3909
2 24 -4.5 43 16.6909 -4.5 37 17.1052
4 16 -4.5 37 17.1052 -4.5 43 16.6909 -4.5 43 15.3909 -4.5 37 15.3909
5 24 -4.5 43 16.6909 0 47.5 16.2857 -4.1576 44.7222 16.2615 0 32.5 18
5 24 -4.5 43 16.6909 0 32.5 18 0 47.5 16.2857 -4.5 37 17.1052
5 24 -4.5 37 17.1052 0 32.5 18 -4.1576 35.2779 17.1733 -4.5 43 16.6909
3 16 0 47.5 16.2857 0 32.5 18 4.5 43 16.6909
3 16 4.5 37 17.1052 4.5 43 16.6909 0 32.5 18
2 24 4.5 43 15.3909 4.5 37 15.3909
2 24 4.5 43 16.6909 4.5 37 17.1052
4 16 4.5 43 15.3909 4.5 43 16.6909 4.5 37 17.1052 4.5 37 15.3909
5 24 4.5 43 16.6909 0 47.5 16.2857 4.1576 44.7222 16.2615 0 32.5 18
5 24 0 32.5 18 4.5 43 16.6909 0 47.5 16.2857 4.5 37 17.1052
5 24 4.5 37 17.1052 0 32.5 18 4.1576 35.2779 17.1733 4.5 43 16.6909
5 24 0 47.5 -16.2857 0 32.5 -18 -4.5 43 -16.6909 4.5 43 -16.6909
5 24 0 32.5 18 0 47.5 16.2857 -4.5 43 16.6909 4.5 43 16.6909
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2022-01-08 14:20:02
Added
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2022-01-31 20:40:01
[PTadmin]
renamed the part.
2022-04-13 22:01:43
"parts/u9561.dat" to "parts/69638.dat."
Broken dependencies.
2022-04-14 17:25:01
Fixed
2022-04-14 19:05:01
2024-05-20 15:41:44
2024-05-24 23:02:25
2024-05-28 02:57:19
Release 2024-04
