File Detail parts/69762.dat

Official File parts/69762.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

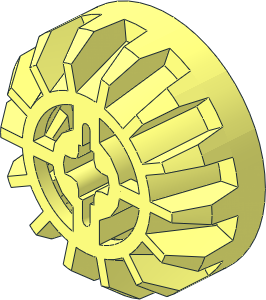

0 Technic Gear 14 Tooth Bevel
0 Name: 69762.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

1 16 0 0 10 1 0 0 0 0 -1 0 -20 0 axlehol5.dat
1 16 -1 -7.901 0 0 -1 0 0 0 2.0994 -10 0 0 rect3.dat
1 16 -1 7.901 0 0 -1 0 0 0 -2.0994 -10 0 0 rect3.dat
1 16 1 7.901 0 0 1 0 0 0 -2.0994 -10 0 0 rect3.dat
1 16 1 -7.901 0 0 1 0 0 0 2.0994 -10 0 0 rect3.dat
0 BFC INVERTNEXT
1 16 0 -10 -10 -1 0 0 0 0 -1 0 20 0 8\2-4cylo.dat
0 BFC INVERTNEXT
1 16 0 10 -10 1 0 0 0 0 1 0 20 0 8\2-4cylo.dat
1 16 -1.5 -5.7018 0 0 0 -.5 0 -1 .0998 10 0 0 rect3.dat
1 16 1.5 -5.7018 0 0 0 .5 0 -1 .0998 -10 0 0 rect3.dat
1 16 -1.5 5.7018 0 0 0 -.5 0 1 -.0998 -10 0 0 rect3.dat
1 16 1.5 5.7018 0 0 0 .5 0 1 -.0998 10 0 0 rect3.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\69762s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\69762s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\69762s01.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\69762s01.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\69762s02.dat
1 16 0 0 0 .90097 -.43388 0 .43388 .90097 0 0 0 1 s\69762s02.dat
1 16 0 0 0 .62349 -.78183 0 .78183 .62349 0 0 0 1 s\69762s02.dat
1 16 0 0 0 .22252 -.97493 0 .97493 .22252 0 0 0 1 s\69762s02.dat
1 16 0 0 0 -.22252 -.97493 0 .97493 -.22252 0 0 0 1 s\69762s02.dat
1 16 0 0 0 -.62349 -.78183 0 .78183 -.62349 0 0 0 1 s\69762s02.dat
1 16 0 0 0 -.90097 -.43388 0 .43388 -.90097 0 0 0 1 s\69762s02.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\69762s02.dat
1 16 0 0 0 -.90097 .43388 0 -.43388 -.90097 0 0 0 1 s\69762s02.dat
1 16 0 0 0 -.62349 .78183 0 -.78183 -.62349 0 0 0 1 s\69762s02.dat
1 16 0 0 0 -.22252 .97493 0 -.97493 -.22252 0 0 0 1 s\69762s02.dat
1 16 0 0 0 .22252 .97493 0 -.97493 .22252 0 0 0 1 s\69762s02.dat
1 16 0 0 0 .62349 .78183 0 -.78183 .62349 0 0 0 1 s\69762s02.dat
1 16 0 0 0 .90097 .43388 0 -.43388 .90097 0 0 0 1 s\69762s02.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Jens Brühl [jb70]

initially submitted the part.

2022-07-23 20:10:01

Gerald Lasser [GeraldLasser]

made the following comment.

2022-07-26 17:45:02

isnt it better rotated like 69761?

Jens Brühl [jb70]

submitted a new version of the part.

2022-07-26 23:10:02

Part rotated like 69761 and other bevel gears.

Existing certification-votes were deleted.

Philippe Hurbain [Philo]

made the following comment.

2022-10-06 09:25:01

- Same kind of primality mismatch as in 69761, the same solutions applies ;)
- Missing condlines in tooth subpart

Jens Brühl [jb70]

submitted a new version of the part.

2022-10-06 18:40:02

Fixed primality mismatch of 48-primitives and 14-tooth segments by replacing prims in the mainfile with quads in the tooth subfile.
Added some missing edge lines and cond lines.

Existing certification-votes were deleted.

Max Martin Richter [MMR1988]

posted a vote of Certify.

2023-01-05 21:35:01

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-05-18 17:43:19

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2024-05-26 00:23:45

Orion Pobursky [OrionP]

2024-05-28 02:57:19

Release 2024-04
