Official File parts/69964.dat
Part Attributes:
File Header:

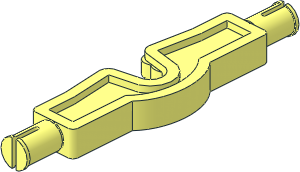

0 Car Wheel Holder Axle 3.3L for Tilt Steering
0 Name: 69964.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Centre at 1 16 0 -4 0 4 0 0 0 8 0 0 0 4 4-4cyli.dat
0 !HELP Rotate 45 degrees
0 !HELP Wheel at 1 15 0 0 -48 1 0 0 0 1 0 0 0 1 6014c03.dat
0 BFC CERTIFY CCW
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\69964s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\69964s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\69964s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 -1 s\69964s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\69964s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\69964s02.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
This turned out to be far more complex than I had expected. Think I got it now.
2024-06-04 16:41:48
Why did you use rect2ps instead of cylos?
2024-06-04 21:58:55
* Looks like it calls for a wpin without the bottom edge.
* I join Gerald in regard of the rect2ps
* The naming is unfortunate. This will be buried in the Wheels category as the only part which isn't a wheel. I guess that the BL and RE pick for "Vehicle" is much more appropriate.
* I join Gerald in regard of the rect2ps
* The naming is unfortunate. This will be buried in the Wheels category as the only part which isn't a wheel. I guess that the BL and RE pick for "Vehicle" is much more appropriate.
2024-11-11 21:49:13
2024-11-11 21:51:21
I suggest renaming the Plate to:
Car Wheel Holder Plate 2 x 4 for Tilt Steering
Car Wheel Holder Plate 2 x 4 for Tilt Steering
2024-11-12 09:37:53
How about rotating it by 90° on Y to be in sync with:
1 1 0 0 0 1 0 0 0 1 0 0 0 1 2926.dat
1 4 0 0 0 1 0 0 0 1 0 0 0 1 2484c01.dat
1 1 0 0 0 1 0 0 0 1 0 0 0 1 2926.dat
1 4 0 0 0 1 0 0 0 1 0 0 0 1 2484c01.dat
2024-11-12 16:22:08
I think it have to stay like this, because the axle socket plate, 69963 have already gone official.
Poor choice
2024-11-20 15:17:37
2024-11-29 17:18:59
2024-12-01 00:36:16
Release 2024-10
