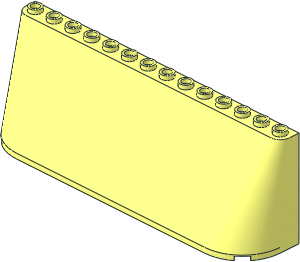

Windscreen 3 x 14 x 4 with Conical Sides

File Header:

0 Windscreen  3 x 14 x  4 with Conical Sides
0 Name: 70495.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-07-29 [OrionP] Official Update 2024-06

Show contents

0 // Bottom
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\70495s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\70495s01.dat

0 // Centre Parts
1 16 -40 92 -40 1 0 0 0 -1 0 0 0 1 stug3-1x7.dat
1 16 70 92 -40 1 0 0 0 -1 0 0 0 1 stug3-1x4.dat
0 BFC INVERTNEXT
1 16 0 96 -40 100 0 0 0 -4 0 0 0 6 box3u8p.dat
4 16 100 96 -30 100 96 -34 -100 96 -34 -100 96 -30
4 16 -100 96 -50 -100 96 -46 100 96 -46 100 96 -50
1 16 0 93.5 -50 100 0 0 0 0 -2.5 0 1 0 rect2p.dat
1 16 0 92 -30 -100 0 0 0 0 -4 0 -1 0 rect2p.dat
4 16 -98.2857 88 -45.3638 98.2857 88 -45.3638 100 88 -30 -100 88 -30
2 24 98.2857 88 -45.3638 -98.2857 88 -45.3638

4 16 117.1429 32 -21.697 98.2857 88 -45.3638 -98.2857 88 -45.3638 -117.1429 32 -21.697
4 16 126.5715 4 -9.8636 117.1429 32 -21.697 -117.1429 32 -21.697 -126.5715 4 -9.8636
2 24 -126.5715 4 -9.8636 126.5715 4 -9.8636

4 16 126.5715 4 -9.8636 -126.5715 4 -9.8636 -136 4 -1.3636 136 4 -1.3636
1 16 0 4 4.3182 0 0 136 0 -1 0 5.6818 0 0 rect2p.dat
4 16 140 0 10 136 4 10 -136 4 10 -140 0 10
1 16 0 0 5 0 0 -140 0 1 0 5 0 0 rect2p.dat
1 16 0 48 10 -140 0 0 0 0 -48 0 -1 0 recte3.dat
1 16 0 46 10 -136 0 0 0 0 -42 0 -1 0 recte3.dat
4 16 -140 0 0 -130 0 -10 130 0 -10 140 0 0
2 24 130 0 -10 -130 0 -10
4 16 -130 0 -10 -120 30.3334 -23.3334 120 30.3334 -23.3334 130 0 -10
4 16 -120 30.3334 -23.3334 -100 91 -50 100 91 -50 120 30.3334 -23.3334

1 16 0 0 0 0 0 -1 0 1 0 1 0 0 stug2-12x1.dat
1 16 -130 0 0 0 0 -1 0 1 0 1 0 0 stud2.dat
1 16 130 0 0 0 0 -1 0 1 0 1 0 0 stud2.dat
