Official File parts/70681.dat
Part Attributes:
File Header:

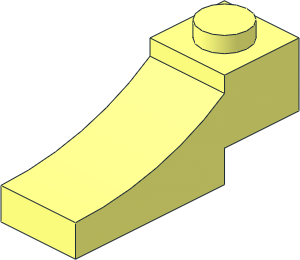

0 Slope Brick Curved 1 x 3 with 1 x 2 Inverted Cutout
0 Name: 70681.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2023-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03
Show contents
4 16 -10 24 -50 -6 24 -46 6 24 -46 10 24 -50
4 16 10 24 -50 6 24 -46 6 24 -14 10 24 -10
4 16 10 24 -10 6 24 -14 -6 24 -14 -10 24 -10
4 16 -10 24 -10 -6 24 -14 -6 24 -46 -10 24 -50
1 16 0 24 -30 -6 0 0 0 1 0 0 0 -16 recte4.dat
1 16 0 24 -30 -10 0 0 0 1 0 0 0 -20 recte4.dat
1 16 0 22 -46 -6 0 0 0 0 -2 0 -1 0 rect3.dat
1 16 0 18.325 -14 6 0 0 0 0 -5.675 0 1 0 rect3.dat
4 16 -6 19.6 -38.62 -6 20 -46 -6 24 -46 -6 24 -14
3 16 -6 16.83 -24.35 -6 19.6 -38.62 -6 24 -14
3 16 -6 16.83 -24.35 -6 24 -14 -6 12.65 -14
4 16 6 24 -46 6 20 -46 6 19.6 -38.62 6 24 -14
3 16 6 16.83 -24.35 6 24 -14 6 19.6 -38.62
3 16 6 24 -14 6 16.83 -24.35 6 12.65 -14
1 16 0 14.74 -19.175 0 0 -6 2.09 -1 0 -5.175 0 0 rect2p.dat
1 16 0 18.215 -31.485 0 0 -6 1.385 -1 0 -7.135 0 0 rect2p.dat
1 16 0 19.8 -42.31 0 0 -6 .2 -1 0 -3.69 0 0 rect2p.dat
5 24 6 19.6 -38.62 -6 19.6 -38.62 -6 16.83 -24.35 -6 20 -46
5 24 -6 16.83 -24.35 6 16.83 -24.35 6 19.6 -38.62 6 12.65 -14
1 16 -3.5 16 -25 -2.5 0 -2.5 0 7.5 0 2 0 -2 tri3a1.dat
1 16 3.5 16 -25 2.5 0 2.5 0 7.5 0 -2 0 2 tri3a1.dat
1 16 -3.5 18 -35 -2.5 0 -2.5 0 5.5 0 2 0 -2 tri3a1.dat
1 16 3.5 18 -35 2.5 0 2.5 0 5.5 0 -2 0 2 tri3a1.dat
2 24 3.5 18.8973 -35 6 19.2855 -37
2 24 6 18.5091 -33 3.5 18.8973 -35
2 24 -3.5 18.8973 -35 -6 18.5091 -33
2 24 -3.5 18.8973 -35 -6 19.2855 -37
2 24 -6 17.3444 -27 -3.5 16.9562 -25
2 24 3.5 16.9562 -25 6 17.3444 -27
2 24 6 16.2848 -23 4.3125 16.83 -24.35
2 24 3.5 16.9562 -25 4.3125 16.83 -24.35
2 24 -6 16.2848 -23 -4.3125 16.83 -24.35
2 24 -3.5 16.9562 -25 -4.3125 16.83 -24.35
3 16 -10 16 -10 -6 16 -10 -10 24 -10
3 16 6 16 -10 10 16 -10 10 24 -10
4 16 6 16 -10 10 24 -10 -10 24 -10 -6 16 -10
2 24 10 16 -10 10 24 -10
2 24 -10 16 -10 -10 24 -10
2 24 -10 16 -10 -6 16 -10
2 24 10 16 -10 6 16 -10
4 16 10 16 10 10 16 -10 6 16 -10 6 16 6
4 16 10 16 10 6 16 6 -6 16 6 -10 16 10
4 16 -10 16 10 -6 16 6 -6 16 -10 -10 16 -10
1 16 0 16 -2 -6 0 0 0 1 0 0 0 8 recte3.dat
1 16 0 16 0 -10 0 0 0 1 0 0 0 10 recte3.dat
1 16 0 13.24 -10 0 0 -6 2.76 0 0 0 -1 0 rect2p.dat
1 16 0 9.21 -7.75 0 0 -6 1.27 -1 0 -2.25 0 0 rect.dat
1 16 0 5.97 -5.5 -6 0 0 0 0 -1.97 0 -1 0 rect3.dat
0 BFC INVERTNEXT
1 16 0 10 .25 6 0 0 0 -6 0 0 0 5.75 box2-7.dat
4 16 6 16 -10 6 10.48 -10 6 7.94 -5.5 6 16 6
4 16 6 4 6 6 16 6 6 7.94 -5.5 6 4 -5.5
4 16 -6 4 6 -6 4 -5.5 -6 7.94 -5.5 -6 16 6
4 16 -6 10.48 -10 -6 16 -10 -6 16 6 -6 7.94 -5.5
1 16 0 12 -10 -1.5 0 0 0 0 4 0 4 0 box4-4a.dat
1 16 0 9.3511 -8 -1.5 0 0 0 -1 -1.1289 0 0 2 recte3.dat
0 // Outside
1 16 0 20 -50 10 0 0 0 0 -4 0 1 0 rect3.dat
4 16 10 15.6523 -42.616 10 16 -50 10 24 -50 10 24 -10
3 16 10 14.6036 -35.36 10 15.6523 -42.616 10 24 -10
3 16 10 14.6036 -35.36 10 24 -10 10 12.8826 -28.352
4 16 10 16 -10 10 10.5098 -21.716 10 12.8826 -28.352 10 24 -10
3 16 10 10.5098 -21.716 10 16 -10 10 7.5315 -15.564
4 16 10 0 10 10 0 -10 10 4 -10 10 16 10
4 16 10 7.5315 -15.564 10 16 -10 10 16 10 10 4 -10
4 16 -10 24 -50 -10 16 -50 -10 15.6523 -42.616 -10 24 -10
3 16 -10 15.6523 -42.616 -10 14.6036 -35.36 -10 24 -10
3 16 -10 24 -10 -10 14.6036 -35.36 -10 12.8826 -28.352
4 16 -10 12.8826 -28.352 -10 10.5098 -21.716 -10 16 -10 -10 24 -10
3 16 -10 16 -10 -10 10.5098 -21.716 -10 7.5315 -15.564
4 16 -10 4 -10 -10 0 -10 -10 0 10 -10 16 10
4 16 -10 16 10 -10 16 -10 -10 7.5315 -15.564 -10 4 -10
1 16 0 2 -10 0 0 -10 -2 0 0 0 1 0 rect.dat
1 16 0 8 0 10 0 0 0 -8 0 0 0 10 box2-7.dat
0 BFC INVERTNEXT
1 16 10 -24.9721 -50 0 -20 0 28.9719 0 28.9719 40 0 -40 48\1-8cylo.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 stud.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2021-01-08 12:20:01
2021-01-08 15:30:02
Use https://www.ldraw.org/parts/official-part-lookup.html?folder=p&;partid=48/1-8tang ?
2021-01-08 17:20:01
yes, the tan is better.
The bow itself needs some tweaking. Right now this is a mirror of the top bow (11477) which is also used in 24201, but 24201 has a slightly different bow. I will wait for the physical part to confirm the shape
I put it in the forum as well
The bow itself needs some tweaking. Right now this is a mirror of the top bow (11477) which is also used in 24201, but 24201 has a slightly different bow. I will wait for the physical part to confirm the shape
I put it in the forum as well
2021-01-23 13:35:01
Some more images of this new brick in this review.
https://www.newelementary.com/2021/01/lego-ideas-review-21325-medieval-blacksmith.html#more
Looks like our design of 92950 is wrong.
https://www.newelementary.com/2021/01/lego-ideas-review-21325-medieval-blacksmith.html#more
Looks like our design of 92950 is wrong.
2022-06-09 03:20:01
Either this part needs to be "Arch" or 78666 need to be "Slope". I prefer the latter.
2022-06-09 06:15:01
To me it is an inverted arch.
Origin should be centered on the top stud, not the center of the part.
changed origin
Existing certification-votes were deleted.
Existing certification-votes were deleted.
Contains a blue recte3.dat at line 68.
de-coloured
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2023-01-15 16:50:02
2023-04-18 07:16:54
2023-04-23 02:56:35
2023-06-24 02:37:24
Release 2023-03
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
