File Detail parts/71372-f1.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/71372-f1.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

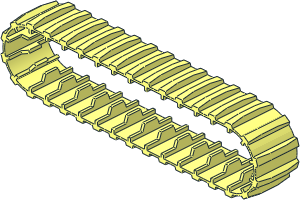

Technic Tread (Formed for 2 Sprocket Wheels)

File Header:

0 Technic Tread (Formed for 2 Sprocket Wheels)
0 Name: 71372-f1.dat
0 Author: Marc Klein [marckl]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Usage Notes: This part is arranged to fit around two Tread Hubs, part
0 !HELP 32007.dat. To make other configurations, you will need to rearrange the
0 !HELP segments which make up this file.
0 !HELP Segment files:
0 !HELP 71372k01.dat - Straight segment
0 !HELP 71372k02.dat - Transition segment, going from straight to curved
0 !HELP 71372k03.dat - Curved segment, fits around 32007.dat
0 !HELP To make odd-sized bends, you will probably use part 71372k01.dat,
0 !HELP unless you are making very large angles.

0 BFC CERTIFY CCW

0 !KEYWORDS BrickLink 680c01, Rebrickable 71372, Robotics Invention System
0 !KEYWORDS Set 3804, Set 7248, Set 8229, Set 8419, Set 9719, Set 9747

0 !HISTORY 2000-09-30 [PTadmin] Official Update 2000-02
0 !HISTORY 2007-10-28 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2009-05-24 [PTadmin] Renamed from 680c01
0 !HISTORY 2013-07-21 [PTadmin] Official Update 2013-01
0 !HISTORY 2016-12-23 [MagFors] bfc'd, closed thin gaps
0 !HISTORY 2024-11-06 [MagFors] Renumbered from 71372c01
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10

Show contents

1 16 -120 0 0 1 0 0 0 1 0 0 0 1 71372k02.dat
1 16 -120 0 0 1 0 0 0 -1 0 0 0 -1 71372k02.dat
1 16 120 0 0 -1 0 0 0 -1 0 0 0 1 71372k02.dat
1 16 120 0 0 -1 0 0 0 1 0 0 0 -1 71372k02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 71372k01.dat
1 16 20 0 0 1 0 0 0 1 0 0 0 1 71372k01.dat
1 16 40 0 0 1 0 0 0 1 0 0 0 1 71372k01.dat
1 16 60 0 0 1 0 0 0 1 0 0 0 1 71372k01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 -1 71372k01.dat
1 16 -80 0 0 1 0 0 0 -1 0 0 0 -1 71372k01.dat
1 16 -100 0 0 1 0 0 0 -1 0 0 0 -1 71372k01.dat
1 16 -60 0 0 1 0 0 0 -1 0 0 0 -1 71372k01.dat
1 16 -40 0 0 1 0 0 0 -1 0 0 0 -1 71372k01.dat
1 16 -20 0 0 1 0 0 0 -1 0 0 0 -1 71372k01.dat
1 16 100 0 0 1 0 0 0 -1 0 0 0 -1 71372k01.dat
1 16 80 0 0 1 0 0 0 -1 0 0 0 -1 71372k01.dat
1 16 60 0 0 1 0 0 0 -1 0 0 0 -1 71372k01.dat
1 16 40 0 0 1 0 0 0 -1 0 0 0 -1 71372k01.dat
1 16 20 0 0 1 0 0 0 -1 0 0 0 -1 71372k01.dat
1 16 80 0 0 1 0 0 0 1 0 0 0 1 71372k01.dat
1 16 100 0 0 1 0 0 0 1 0 0 0 1 71372k01.dat
1 16 -20 0 0 1 0 0 0 1 0 0 0 1 71372k01.dat
1 16 -40 0 0 1 0 0 0 1 0 0 0 1 71372k01.dat
1 16 -60 0 0 1 0 0 0 1 0 0 0 1 71372k01.dat
1 16 -80 0 0 1 0 0 0 1 0 0 0 1 71372k01.dat
1 16 -100 0 0 1 0 0 0 1 0 0 0 1 71372k01.dat
1 16 -120 0 0 0.80902 -0.58779 0 0.58779 0.80902 0 0 0 1 71372k03.dat
1 16 -120 0 0 0.30902 -0.95106 0 0.95106 0.30902 0 0 0 1 71372k03.dat
1 16 -120 0 0 0.30902 -0.95106 0 -0.95106 -0.30902 0 0 0 -1 71372k03.dat
1 16 -120 0 0 0.80902 -0.58779 0 -0.58779 -0.80902 0 0 0 -1 71372k03.dat
1 16 120 0 0 -0.80902 0.58779 0 -0.58779 -0.80902 0 0 0 1 71372k03.dat
1 16 120 0 0 -0.30902 0.95106 0 -0.95106 -0.30902 0 0 0 1 71372k03.dat
1 16 120 0 0 -0.30902 0.95106 0 0.95106 0.30902 0 0 0 -1 71372k03.dat
1 16 120 0 0 -0.80902 0.58779 0 0.58779 0.80902 0 0 0 -1 71372k03.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Magnus Forsberg [MagFors]

initially submitted the part.

2016-12-29 17:30:00

Steffen [Steffen]

submitted a new version of the part.

2016-12-29 18:25:01

fixed typo "spocket" -> "sprocket"
changed type to "Part"

Philippe Hurbain [Philo]

posted a vote of Certify.

2016-12-29 18:35:00

Magnus Forsberg [MagFors]

posted a vote of Hold.

2018-11-03 14:40:01

Shouldn't this become a flexible part?

Philippe Hurbain [Philo]

posted a vote of Certify.

2018-11-05 10:20:01

Yes it should...

Magnus Forsberg [MagFors]

submitted a new version of the part.

2024-11-06 21:19:58

Magnus Forsberg [MagFors]

renamed the part.

2024-11-06 21:27:47

"parts/71372c01.dat" to "parts/71372-f1.dat"

Philippe Hurbain [Philo]

posted a vote of Certify.

2024-11-07 08:25:05

Rene Rechthaler [Blechtaler]

made the following comment.

2024-11-07 11:18:49

any chance for a triangular formed version? some sets have the same Sprocket layout...

Philippe Hurbain [Philo]

made the following comment.

2024-11-07 13:12:07

Philippe Hurbain [Philo]

made the following comment.

2024-11-07 13:13:32

I'm considering doing the triangular tread of 8414 set. But I'm afraid there are many different configurations...

Rene Rechthaler [Blechtaler]

made the following comment.

2024-11-07 15:19:18

why that one? it has a unique track form...
looks like these Sets use the same Layout:
7297, 7476, 8539, 8549

Philippe Hurbain [Philo]

made the following comment.

2024-11-08 14:06:44

Two different shapes actually... -f3 is the configuration of 7297/7476

Rene Rechthaler [Blechtaler]

made the following comment.

2024-11-08 15:17:16

i thougt they are the same, just flipped vertically...

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2024-11-18 13:04:42

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2024-11-18 18:57:39

Philippe Hurbain [Philo]

edited the part header.

2024-11-19 16:21:07

Header Edits

keywords:

to
Robotics Invention System, Set 9719, Set 9747, Set 3804

Comment:
some kw...

Philippe Hurbain [Philo]

edited the part header.

2024-11-19 16:59:15

Header Edits

keywords:
Robotics Invention System, Set 9719, Set 3804, Set 9747
to
Robotics Invention System, Set 9719, Set 3804, Set 9747, Set 8229, Set 8419, Set 7248

Comment:
Some more.

Orion Pobursky [OrionP]

2024-12-01 00:36:16

Release 2024-10
