Official File parts/71708.dat
Part Attributes:
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

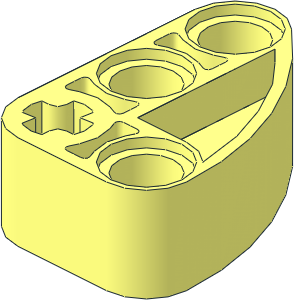

Technic Beam 2 x 3 Liftarm Bent 90 Quarter Ellipse
File Header:
0 Technic Beam 2 x 3 Liftarm Bent 90 Quarter Ellipse 0 Name: 71708.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Part UPDATE 2024-08 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2020-12-17 [GeraldLasser] Derived from 64683s01 by Philo 0 !HISTORY 2023-05-14 [technicbasics] Optimised 0 !HISTORY 2023-06-01 [GeraldLasser] Sub-Filed 0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\71708s01.dat 1 16 20 -10 0 9 0 0 0 20 0 0 0 -9 1-4cylo.dat 1 16 0 -10 0 0 0 -9 0 20 0 -9 0 0 1-4cylo.dat 1 16 10 0 -9 -10 0 0 0 0 10 0 1 0 rect2p.dat 1 16 0 -10 0 0 0 -1 0 20 0 1 0 0 axl3hole.dat 1 16 0 -10 0 0 0 3 0 1 0 -3 0 0 4-4ring2.dat 1 16 0 -10 0 0 0 6 0 1 0 -6 0 0 4-4ering.dat 1 16 0 10 0 0 0 3 0 -1 0 -3 0 0 4-4ring2.dat 1 16 0 10 0 0 0 6 0 -1 0 -6 0 0 4-4ering.dat 4 16 16.556 -10 -8.315 3.444 -10 -8.315 0 -10 -9 20 -10 -9 4 16 20 10 -9 0 10 -9 3.444 10 -8.315 16.556 10 -8.315 4 16 11.532 10 -6.364 16.556 10 -8.315 3.444 10 -8.315 10 10 -6.364 3 16 6.364 10 -6.364 8.468 10 -6.364 3.444 10 -8.315 3 16 3.444 10 -8.315 8.468 10 -6.364 10 10 -6.364 3 16 6.364 -10 -6.364 3.444 -10 -8.315 8.468 -10 -6.364 3 16 8.468 -10 -6.364 3.444 -10 -8.315 10 -10 -6.364 4 16 3.444 -10 -8.315 16.556 -10 -8.315 11.532 -10 -6.364 10 -10 -6.364 4 16 28.336 10 8.558 28.336 -10 8.558 29 -10 0 29 10 0
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Gerald Lasser [GeraldLasser]
Part Library Admin
initially submitted the part.
2020-12-17 12:25:01
Orientation, shall it be along the liftarms or like the panels...
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2020-12-17 13:20:02
Thansk to Philo for the number
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2020-12-17 15:15:01
Either works... OK with beam naming+beam orientation. Nonetheless:
- Panel keyword?
- Erings around axlehole?
Franklin W. Cain [fwcain]
Part Reviewer
posted a vote of Certify.
2021-11-27 03:35:01
Max Martin Richter [MMR1988]
Senior Part Reviewer
made the following comment.
2021-12-10 20:35:02
Yes, an ering around the axle hole would be nice.
I would prefer an orientation like 32250.dat.
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2021-12-10 21:05:01
Orientation is the same....

I don't get you, origin is at the corner axle hole at both parts
Philippe Hurbain [Philo]
Senior Part Reviewer
posted a vote of Certify.
2021-12-11 07:30:01
I confirm that origin/orientation are fine and matches 32250
Max Martin Richter [MMR1988]
Senior Part Reviewer
made the following comment.
2021-12-12 16:55:01
What's about the ering?
Willy Tschager [Holly-Wood]
Senior Part Reviewer
made the following comment.
2022-09-28 09:10:02
* I agree with Max on the ering.
* Some T-Junk should be fixed.
* Has rounding issues (example):

2 11 24.365 -2 15.9715 24.365 -2 15.971
2 11 6.3639 -10 13.6361 6.36 -10 13.64
2 11 6.3639 -10 6.3639 6.36 -10 6.36
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Hold.
2023-02-16 01:26:57
The issues mentioned above should be fixed.
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2023-02-16 21:05:27
inserted the ering

do you mean to convert the rects to normal quads?
Orion Pobursky [OrionP]
Part Library Admin
made the following comment.
2023-02-16 21:33:27
I was specifically referring to Willy's comments:
"Some T-Junk should be fixed ... Has rounding issues (example)"
Orion Pobursky [OrionP]
Part Library Admin
submitted a new version of the part.
2023-02-17 05:22:28
Resubmit
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2023-02-17 21:27:49
The inside is coloured.
Johann Eisner [technicbasics]
Part Author
submitted a new version of the part.
2023-05-10 16:46:12
Changed colored inside to main color
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2023-05-11 10:56:14
* Overlap:

2 2 13.64 10 -6.36 16.5557 10 -8.3151
2 2 3.4443 10 -8.3151 6.3639 10 -6.3639

* And still T-junk:

2 1 6.3639 -10 6.3639 8.4679 -10 6.3639
2 1 6.36397 -10 6.36396 13.6361 -10 6.3639
2 1 6.36397 10 6.36396 6.36 10 13.64
2 1 -6.3639 -10 6.3639 -6.3639 -10 13.6361
2 1 6.3639 -10 13.6361 6.36397 -10 6.36396
2 1 6.3639 10 6.3639 6.3639 10 8.4679
2 1 6.3639 -10 13.6361 6.3639 -10 11.5321
2 1 6.36 10 -6.36 13.64 10 -6.36
2 1 11.5321 10 -6.3639 13.6361 10 -6.3639
2 1 -6.3639 -10 11.5321 -6.3639 -10 13.6361
2 1 6.3639 10 6.3639 8.4679 10 6.3639
2 1 13.6361 10 6.3639 6.36397 10 6.36396
2 1 9 10 9 9 10 40
2 1 9 -10 9 9 -10 40
Johann Eisner [technicbasics]
Part Author
submitted a new version of the part.
2023-05-11 16:49:52
I didn't know that the part was not finished, so I just replaced the wrong color.
No idea what, I should do how, so have removed some T-junks that were obvious to me.
For deeper optimizations I have too little experience and idea which tools I should/can use best.
Am grateful for any help.
Johann Eisner [technicbasics]
Part Author
made the following comment.
2023-05-12 04:28:10
Please do not review, I will still optimise the part.
Johann Eisner [technicbasics]
Part Author
submitted a new version of the part.
2023-05-13 20:57:28
Removed T-Junctions, closed gaps
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2023-05-13 21:26:19
why the many stripes at the long side? normally its ok to have one rect2p going from hole to hole...
Willy Tschager [Holly-Wood]
Senior Part Reviewer
made the following comment.
2023-05-13 23:25:34
My suggestion. As an excerice to eliminate as many T-junk as possible.
Johann Eisner [technicbasics]
Part Author
made the following comment.
2023-05-14 07:53:45
Perhaps I could have saved the two narrow strips and thus accepted 4 T-Junc. Everyone has their own point of view. It's like a Lego model. It's never finished, because there's always something to find and improve. For my part, I have done my best, changes, improvements,... from other authors are welcome and can be changed.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2023-05-14 10:18:38
* Part is fine but there is one superfluouse triangle inside:

3 12 7.86 .35 -.25 3.444 10 -8.315 6.364 10 -6.364
Johann Eisner [technicbasics]
Part Author
submitted a new version of the part.
2023-05-14 17:59:33
Deleted!
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Certify.
2024-01-14 21:12:07
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2024-05-01 17:49:08
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2024-05-01 19:53:52
used subfile
Magnus Forsberg [MagFors]
Part Library Admin
edited the part header.
2024-05-04 09:17:28
Header Edits

history:
0 !HISTORY 2020-12-17 [GeraldLasser] Derived from 64683s01 by Philo
0 !HISTORY 2023-05-14 [technicbasics] Optimiced
0 !HISTORY 2023-06-01 [GeraldLasser] Sub-Filed
to
0 !HISTORY 2020-12-17 [GeraldLasser] Derived from 64683s01 by Philo
0 !HISTORY 2023-05-14 [technicbasics] Optimised
0 !HISTORY 2023-06-01 [GeraldLasser] Sub-Filed

Comment:
Corrected spelling of Optimised
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Certify.
2024-09-18 11:46:24
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2024-09-18 13:22:39
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2024-09-20 15:56:51
Orion Pobursky [OrionP]
Part Library Admin
2024-09-30 03:57:10
Release 2024-08
