File Detail parts/72008.dat

Official File parts/72008.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

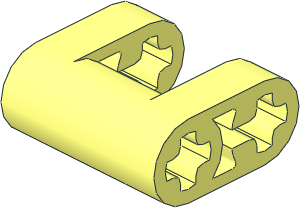

Technic Connector Block 2 x 2 with 1 x 1 Cutout

File Header:

0 Technic Connector Block  2 x  2 with  1 x  1 Cutout
0 Name: 72008.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

1 16 -10 0 0 0 -10 0 -9 0 0 0 0 9 2-4cylo.dat
1 16 -10 0 0 0 -10 0 -1 0 0 0 0 -1 axlehol4.dat
1 16 -10 0 -10 0 -10 0 -1 0 0 0 0 -1 npeghol5.dat
1 16 -10 0 0 0 -1 0 -3 0 0 0 0 3 2-4ring2.dat
1 16 -20 0 0 0 1 0 -3 0 0 0 0 3 2-4ring2.dat
1 16 -15 9 -10 0 0 -5 0 -1 0 10 0 0 rect2p.dat
1 16 -15 -9 -10 0 0 -5 0 1 0 -10 0 0 rect2p.dat
1 16 -20 0 -20 0 10 0 0 0 9 9 0 0 1-8cyli.dat
1 16 -20 0 -20 0 1 0 0 0 9 9 0 0 1-8edge.dat
1 16 -20 0 -20 0 10 0 0 0 -9 9 0 0 1-8cyli.dat
1 16 -20 0 -20 0 1 0 0 0 -9 9 0 0 1-8edge.dat
1 16 -15 6.3639 -11.81805 -5 0 0 0 1 0 0 0 -1.81805 rect3.dat
1 16 -15 -6.3639 -11.81805 -5 0 0 0 -1 0 0 0 -1.81805 rect3.dat

1 16 20 0 0 0 -10 0 -9 0 0 0 0 9 2-4cylo.dat
1 16 20 0 0 0 -10 0 -1 0 0 0 0 -1 axlehol4.dat
1 16 20 0 -10 0 -10 0 -1 0 0 0 0 -1 npeghol5.dat
1 16 10 0 0 0 1 0 -3 0 0 0 0 3 2-4ring2.dat
1 16 20 0 0 0 -1 0 -3 0 0 0 0 3 2-4ring2.dat
1 16 15 9 -10 0 0 -5 0 -1 0 10 0 0 rect2p.dat
1 16 15 -9 -10 0 0 -5 0 1 0 -10 0 0 rect2p.dat
1 16 20 0 -20 0 -10 0 0 0 9 9 0 0 1-8cyli.dat
1 16 20 0 -20 0 1 0 0 0 9 9 0 0 1-8edge.dat
1 16 20 0 -20 0 -10 0 0 0 -9 9 0 0 1-8cyli.dat
1 16 20 0 -20 0 1 0 0 0 -9 9 0 0 1-8edge.dat
1 16 15 6.3639 -11.81805 -5 0 0 0 1 0 0 0 -1.81805 rect3.dat
1 16 15 -6.3639 -11.81805 -5 0 0 0 -1 0 0 0 -1.81805 rect3.dat

1 16 20 0 -20 0 1 0 -9 0 0 0 0 -9 2-4edge.dat
1 16 20 0 -20 0 -10 0 -9 0 0 0 0 -9 2-4cyli.dat
1 16 10 0 -20 0 -20 0 -9 0 0 0 0 -9 4-4cyli.dat
1 16 -10 0 -20 0 -10 0 -9 0 0 0 0 -9 2-4cyli.dat
1 16 -20 0 -20 0 1 0 -9 0 0 0 0 -9 2-4edge.dat

1 16 20 0 -20 0 -1 0 -1 0 0 0 0 -1 axl5hol9.dat
1 16 .25 0 -20 0 -1 0 -1 0 0 0 0 -1 axl5hol9.dat
1 16 .25 0 -20 0 -1 0 -1 0 0 0 0 -1 axlehol2.dat
1 16 20 0 -20 0 -1 0 -1 0 0 0 0 -1 axl5ho10.dat
1 16 20 0 -20 0 -19.75 0 -1 0 0 0 0 -1 axl5hol8.dat
1 16 20 0 -20 0 -1 0 -6 0 0 0 0 -6 1-16chrd.dat
1 16 20 0 -20 0 -1 0 0 0 -6 -6 0 0 1-16chrd.dat
1 16 20 0 -20 0 -1 0 0 0 6 -6 0 0 1-16chrd.dat
1 16 20 0 -20 0 -1 0 6 0 0 0 0 -6 1-16chrd.dat
1 16 20 0 -20 0 -1 0 6 0 0 0 0 6 1-16chrd.dat
1 16 20 0 -20 0 -1 0 0 0 6 6 0 0 1-16chrd.dat
1 16 20 0 -20 0 -1 0 0 0 -6 6 0 0 1-16chrd.dat
1 16 20 0 -20 0 -1 0 -6 0 0 0 0 6 1-16chrd.dat
1 16 20 0 -20 0 1 0 -1 0 0 0 0 -1 axlehol2.dat

0 BFC INVERTNEXT
1 16 -.25 0 -20 0 .5 0 0 0 3.5 3.5 0 0 4-4cylo.dat
1 16 .25 0 -20 0 -1 0 0 0 3.5 -3.5 0 0 4-4ring1.dat
1 16 -.25 0 -20 0 1 0 0 0 3.5 3.5 0 0 4-4ring1.dat

1 16 -20 0 -20 0 1 0 -1 0 0 0 0 -1 axl5hol9.dat
1 16 -.25 0 -20 0 1 0 -1 0 0 0 0 -1 axl5hol9.dat
1 16 -.25 0 -20 0 1 0 -1 0 0 0 0 -1 axlehol2.dat
1 16 -20 0 -20 0 1 0 -1 0 0 0 0 -1 axl5ho10.dat
1 16 -20 0 -20 0 19.75 0 -1 0 0 0 0 -1 axl5hol8.dat
1 16 -20 0 -20 0 1 0 -6 0 0 0 0 -6 1-16chrd.dat
1 16 -20 0 -20 0 1 0 0 0 -6 -6 0 0 1-16chrd.dat
1 16 -20 0 -20 0 1 0 0 0 6 -6 0 0 1-16chrd.dat
1 16 -20 0 -20 0 1 0 6 0 0 0 0 -6 1-16chrd.dat
1 16 -20 0 -20 0 1 0 6 0 0 0 0 6 1-16chrd.dat
1 16 -20 0 -20 0 1 0 0 0 6 6 0 0 1-16chrd.dat
1 16 -20 0 -20 0 1 0 0 0 -6 6 0 0 1-16chrd.dat
1 16 -20 0 -20 0 1 0 -6 0 0 0 0 6 1-16chrd.dat
1 16 -20 0 -20 0 -1 0 -1 0 0 0 0 -1 axlehol2.dat

1 16 20 0 -20 0 -1 0 3 0 0 0 0 -3 4-4ring2.dat
1 16 -20 0 -20 0 1 0 3 0 0 0 0 -3 4-4ring2.dat
4 16 20 -6.3639 -13.6361 20 -6.3639 -10 20 -9 -10 20 -8.3151 -16.5557
4 16 20 9 -10 20 6.3639 -10 20 6.3639 -13.6361 20 8.3151 -16.5557
4 16 10 6.3639 -13.6361 10 6.3639 -10 10 9 -10 10 9 -20
4 16 -10 6.3639 -10 -10 6.3639 -13.6361 -10 9 -20 -10 9 -10
4 16 10 -9 -10 10 -6.3639 -10 10 -6.3639 -13.6361 10 -9 -20
4 16 -10 -9 -20 -10 -6.3639 -13.6361 -10 -6.3639 -10 -10 -9 -10
4 16 -20 -9 -10 -20 -6.3639 -10 -20 -6.3639 -13.6361 -20 -8.3151 -16.5557
4 16 -20 6.3639 -13.6361 -20 6.3639 -10 -20 9 -10 -20 8.3151 -16.5557
3 16 20 -9 -20 20 -8.3151 -16.5557 20 -9 -10
3 16 20 8.3151 -16.5557 20 9 -20 20 9 -10
3 16 -20 9 -20 -20 8.3151 -16.5557 -20 9 -10
3 16 -20 -8.3151 -16.5557 -20 -9 -20 -20 -9 -10
1 16 10 0 -20 0 1 0 9 0 0 0 0 9 1-8edge.dat
1 16 10 0 -20 0 1 0 -9 0 0 0 0 9 1-8edge.dat
1 16 -10 0 -20 0 1 0 9 0 0 0 0 9 1-8edge.dat
1 16 -10 0 -20 0 1 0 -9 0 0 0 0 9 1-8edge.dat
1 16 20 0 -20 0 -1 0 6 0 0 0 0 6 4-4ering.dat
1 16 -20 0 -20 0 1 0 6 0 0 0 0 6 4-4ering.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2021-01-02 22:00:02

Not sure if the hole at the 2L section goes all the way through or if there's a stop.

Whan do you think of placing 1-16 chrds to close the gaps at the axle hole in hi res?

Magnus Forsberg [MagFors]

made the following comment.

2021-01-13 20:15:01

Adding ering prims, or 1-16chrd, is a really good idea. But I wonder if it shouldn't be done to the axle prims instead?

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2022-09-14 09:45:01

Max Murtazin [SwampKryakwa]

made the following comment.

2022-09-14 18:15:01

Better use npeghol4 instead of npeghol5, would curve corners on both sides of the npeghol

Magnus Forsberg [MagFors]

made the following comment.

2022-09-14 19:50:01

Not possible, since npeghol4 adds unwanted edge lines.

Max Murtazin [SwampKryakwa]

made the following comment.

2022-09-14 21:15:02

Should then have new npeghole shape hard-modeled in I guess?

Max Murtazin [SwampKryakwa]

submitted a new version of the part.

2022-09-25 00:35:01

Replaced all of npeghol geometry with a primitive

Existing certification-votes were deleted.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2022-09-30 09:15:01

Magnus Forsberg [MagFors]

made the following comment.

2022-10-04 17:55:01

I can't find any support for a open, nor a blocked hole...

Max Murtazin [SwampKryakwa]

made the following comment.

2022-10-04 19:00:01

Page 9 of BI for set 75335 suggests it is a blocked hole - instead of using a 4L axle, two 2L ones are used

Max Martin Richter [MMR1988]

posted a vote of Hold.

2024-01-09 21:14:18

The Builder app shows a stopper inside.

Max Murtazin [SwampKryakwa]

made the following comment.

2024-01-10 06:30:48

Is it a normal stopping like in 2L axle connectors? Don't know much about variations of those

Max Martin Richter [MMR1988]

made the following comment.

2024-01-10 08:04:47

I would say yes - just a simple thin ring in the middle.

Gerald Lasser [GeraldLasser]

made the following comment.

2024-01-10 10:52:12

correct there is a stopper inside, when I authored it I did not have the part, forgot to change it

Max Martin Richter [MMR1988]

made the following comment.

2024-01-10 12:08:49

Who wants to do the fix?

Gerald Lasser [GeraldLasser]

made the following comment.

2024-01-10 16:05:29

I will do it later

Magnus Forsberg [MagFors]

made the following comment.

2024-01-10 16:53:49

This is perhaps a good opportunity to discuss the error in all similar parts.
The hole needs to be exactly 20 ldu deep, but in most cases it has been modeled with a divider at 19.5, 1 ldu thick.
That's not correct.

All Technic Axle are made using the axle.dat primitive. Or something more suitable, when needed.
That primitive is not correct. A real axle has a slightly bevelled, convex end. Making it possible to have the 2 axles pushed all the way into the stopper ring, wich has a coresponding concave bevelled design

The axlehole primitives in this part need to be 20 ldu deep, to allow a correct position of a mounted axle.
But we need to also have a stopper, 1 ldu thick. It doesn't add up.

When I reworked the axlehole primitive I found that many parts use a primitive that is only 19.5 ldu.
This will be a problem in connection seeking SW, that will not allow a correct position of the axle. The hole isn't deep enough.

Max Martin Richter [MMR1988]

made the following comment.

2024-01-10 18:24:00

All axles I measure are shorter than our models.
2L = 15.7 mm
3L = 23.4 mm
4L = 31.7 mm
5L = 39.4 mm
6L = 47.7 mm
7L = 55.5 mm
8L = 63.5 mm
10L = 79.4 mm
12L = 95.2 mm

(Note that I checked only one piece for every length. I think, it differs a bit from part to part.)

Therefore we should think about reworking the axles maybe?

Max Martin Richter [MMR1988]

made the following comment.

2024-01-10 18:24:01
