Official File parts/72869.dat
Part Attributes:
File Header:

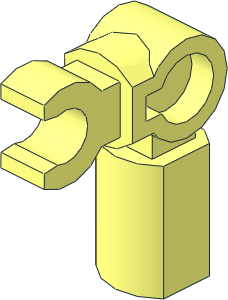

0 Bar Tube with Clip Angled 90 Degrees
0 Name: 72869.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
0 // Clip
1 16 0 0 -20 0 1 0 -1 0 0 0 0 1 clip5.dat
1 16 0 0 -10 0 0 -4 -4.19094 0 0 0 1 0 recte4.dat
0 // Central Part
1 16 -6.25 0 0 0 12.5 0 0 0 -7.5 7.5 0 0 3-8cylo.dat
1 16 -6.25 0 0 0 12.5 0 0 0 7.5 7.5 0 0 3-8cylo.dat
0 BFC INVERTNEXT
1 16 6.25 0 0 0 -4 0 0 0 5 5 0 0 7-16cylo.dat
0 BFC INVERTNEXT
1 16 6.25 0 0 0 -4 0 0 0 -5 5 0 0 7-16cylo.dat
1 16 2.25 0 0 0 -1 0 0 0 -5 5 0 0 7-16chrd.dat
1 16 2.25 0 0 0 -1 0 0 0 5 5 0 0 7-16chrd.dat
0 BFC INVERTNEXT
1 16 4.25 0 -4.6195 0 0 -2 1.9135 0 0 0 -2.8806 0 box4-2p.dat
3 16 2.25 -1.9135 -4.6195 2.25 1.9135 -4.6195 2.25 0 5
1 16 6.25 0 0 0 -1 0 5 0 0 0 0 -5 3-16ndis.dat
1 16 6.25 0 0 0 -1 0 -5 0 0 0 0 -5 3-16ndis.dat
1 16 6.25 0 0 0 -1 0 -7.5 0 0 0 0 -7.5 1-8chrd.dat
1 16 6.25 0 0 0 -1 0 7.5 0 0 0 0 -7.5 1-8chrd.dat
1 16 6.25 0 0 0 -1 0 -2.5 0 0 0 0 2.5 2-4ring2.dat
4 16 6.25 -5.3033 -5.3033 6.25 -4.2373 -6.0156 6.25 -1.9135 -4.6195 6.25 -5 -5
4 16 6.25 -5.3033 -5.3033 6.25 -5 -5 6.25 -5 0 6.25 -7.5 0
4 16 6.25 5.3033 -5.3033 6.25 7.5 0 6.25 5 0 6.25 5 -5
4 16 6.25 1.9135 -4.6195 6.25 4.2373 -6.0156 6.25 5.3033 -5.3033 6.25 5 -5
4 16 6.25 1.9135 -7.5 6.25 -1.9135 -7.5 6.25 -4.2373 -10 6.25 4.237 -10
4 16 6.25 -4.2373 -6.0156 6.25 -4.2373 -10 6.25 -1.9135 -7.5 6.25 -1.9135 -4.6195
4 16 6.25 1.9135 -7.5 6.25 4.237 -10 6.25 4.2373 -6.0156 6.25 1.9135 -4.6195
1 16 6.25 0 -8.0078 0 -1 0 -4.2373 0 0 0 0 -1.9922 recte3.dat
4 16 3.3825 -6.1803 -3.9909 0 -6.8622 -2.9705 0 -6.8622 -10 3.3825 -6.1803 -10
3 16 4.6769 -5.3033 -5.3033 3.3825 -6.1803 -3.9909 3.3825 -6.1803 -10
4 16 4.6769 -5.3033 -5.3033 3.3825 -6.1803 -10 6.25 -4.2373 -10 6.25 -4.2373 -6.0156
3 16 6.25 -4.2373 -6.0156 6.25 -5.3033 -5.3033 4.6769 -5.3033 -5.3033
4 16 6.25 4.2373 -6.0156 6.25 4.237 -10 3.3825 6.1803 -10 4.6769 5.3033 -5.3033
3 16 3.3825 6.1803 -3.9909 4.6769 5.3033 -5.3033 3.3825 6.1803 -10
4 16 0 6.8622 -10 0 6.8622 -3.99 3.3825 6.1803 -3.9909 3.3825 6.1803 -10
3 16 6.25 5.3033 -5.3033 6.25 4.2373 -6.0156 4.6769 5.3033 -5.3033
2 24 4.6769 5.3033 -5.3033 6.25 4.2373 -6.0156
2 24 4.6769 5.3033 -5.3033 3.3825 6.1803 -3.9909
2 24 3.3825 -6.1803 -3.9909 0 -6.8622 -2.9705
2 24 4.6769 -5.3033 -5.3033 3.3825 -6.1803 -3.9909
2 24 6.25 -4.2373 -6.0156 4.6769 -5.3033 -5.3033
2 24 6.25 -5.3033 -5.3033 6.25 -4.2373 -6.0156
2 24 6.25 4.2373 -6.0156 6.25 5.3033 -5.3033
4 16 6.25 4.237 -10 6.25 -4.2373 -10 3.3825 -6.1803 -10 3.3825 6.1803 -10
4 16 0 6.8622 -10 3.3825 6.1803 -10 3.3825 -6.1803 -10 0 -6.8622 -10
2 24 0 -6.8622 -10 3.3825 -6.1803 -10
2 24 3.3825 -6.1803 -10 6.25 -4.2373 -10
2 24 6.25 4.237 -10 3.3825 6.1803 -10
2 24 3.3825 6.1803 -10 0 6.8622 -10
0 BFC INVERTNEXT
1 16 -6.25 0 0 0 4 0 0 0 5 5 0 0 7-16cylo.dat
0 BFC INVERTNEXT
1 16 -6.25 0 0 0 4 0 0 0 -5 5 0 0 7-16cylo.dat
1 16 -2.25 0 0 0 1 0 0 0 -5 5 0 0 7-16chrd.dat
1 16 -2.25 0 0 0 1 0 0 0 5 5 0 0 7-16chrd.dat
0 BFC INVERTNEXT
1 16 -4.25 0 -4.6195 0 0 2 1.9135 0 0 0 -2.8806 0 box4-2p.dat
3 16 -2.25 1.9135 -4.6195 -2.25 -1.9135 -4.6195 -2.25 0 5
1 16 -6.25 0 0 0 1 0 5 0 0 0 0 -5 3-16ndis.dat
1 16 -6.25 0 0 0 1 0 -5 0 0 0 0 -5 3-16ndis.dat
1 16 -6.25 0 0 0 1 0 -2.5 0 0 0 0 2.5 2-4ring2.dat
1 16 -6.25 0 0 0 1 0 -7.5 0 0 0 0 -7.5 1-8chrd.dat
1 16 -6.25 0 0 0 1 0 7.5 0 0 0 0 -7.5 1-8chrd.dat
4 16 -6.25 -1.9135 -4.6195 -6.25 -4.2373 -6.0156 -6.25 -5.3033 -5.3033 -6.25 -5 -5
4 16 -6.25 -5 0 -6.25 -5 -5 -6.25 -5.3033 -5.3033 -6.25 -7.5 0
4 16 -6.25 5 0 -6.25 7.5 0 -6.25 5.3033 -5.3033 -6.25 5 -5
4 16 -6.25 5.3033 -5.3033 -6.25 4.2373 -6.0156 -6.25 1.9135 -4.6195 -6.25 5 -5
4 16 -6.25 -4.2373 -10 -6.25 -1.9135 -7.5 -6.25 1.9135 -7.5 -6.25 4.237 -10
4 16 -6.25 -1.9135 -7.5 -6.25 -4.2373 -10 -6.25 -4.2373 -6.0156 -6.25 -1.9135 -4.6195
4 16 -6.25 4.2373 -6.0156 -6.25 4.237 -10 -6.25 1.9135 -7.5 -6.25 1.9135 -4.6195
1 16 -6.25 0 -8.0078 0 1 0 -4.2373 0 0 0 0 -1.9922 recte3.dat
4 16 0 -6.8622 -10 0 -6.8622 -2.9705 -3.3825 -6.1803 -3.9909 -3.3825 -6.1803 -10
3 16 -3.3825 -6.1803 -3.9909 -4.6769 -5.3033 -5.3033 -3.3825 -6.1803 -10
4 16 -6.25 -4.2373 -10 -3.3825 -6.1803 -10 -4.6769 -5.3033 -5.3033 -6.25 -4.2373 -6.0156
3 16 -6.25 -5.3033 -5.3033 -6.25 -4.2373 -6.0156 -4.6769 -5.3033 -5.3033
4 16 -3.3825 6.1803 -10 -6.25 4.237 -10 -6.25 4.2373 -6.0156 -4.6769 5.3033 -5.3033
3 16 -4.6769 5.3033 -5.3033 -3.3825 6.1803 -3.9909 -3.3825 6.1803 -10
4 16 -3.3825 6.1803 -3.9909 0 6.8622 -3.99 0 6.8622 -10 -3.3825 6.1803 -10
3 16 -6.25 4.2373 -6.0156 -6.25 5.3033 -5.3033 -4.6769 5.3033 -5.3033
2 24 -4.6769 5.3033 -5.3033 -6.25 4.2373 -6.0156
2 24 -4.6769 5.3033 -5.3033 -3.3825 6.1803 -3.9909
2 24 -3.3825 -6.1803 -3.9909 0 -6.8622 -2.9705
2 24 -4.6769 -5.3033 -5.3033 -3.3825 -6.1803 -3.9909
2 24 -6.25 -4.2373 -6.0156 -4.6769 -5.3033 -5.3033
2 24 -6.25 -5.3033 -5.3033 -6.25 -4.2373 -6.0156
2 24 -6.25 4.2373 -6.0156 -6.25 5.3033 -5.3033
4 16 -3.3825 -6.1803 -10 -6.25 -4.2373 -10 -6.25 4.237 -10 -3.3825 6.1803 -10
4 16 -3.3825 -6.1803 -10 -3.3825 6.1803 -10 0 6.8622 -10 0 -6.8622 -10
2 24 0 -6.8622 -10 -3.3825 -6.1803 -10
2 24 -3.3825 -6.1803 -10 -6.25 -4.2373 -10
2 24 -6.25 4.237 -10 -3.3825 6.1803 -10
2 24 -3.3825 6.1803 -10 0 6.8622 -10
5 24 3.3825 -6.1803 -10 3.3825 -6.1803 -3.9909 4.6769 -5.3033 -5.3033 0 -6.8622 -2.9705
5 24 0 -6.8622 -10 0 -6.8622 -2.9705 3.3825 -6.1803 -3.9909 -3.3825 -6.1803 -3.9909
5 24 -3.3825 -6.1803 -10 -3.3825 -6.1803 -3.9909 0 -6.8622 -2.9705 -4.6769 -5.3033 -5.3033
5 24 3.3825 6.1803 -10 3.3825 6.1803 -3.9909 4.6769 5.3033 -5.3033 0 6.8622 -3.99
5 24 0 6.8622 -10 0 6.8622 -3.99 3.3825 6.1803 -3.9909 -3.3825 6.1803 -3.9909
5 24 -3.3825 6.1803 -10 -3.3825 6.1803 -3.9909 0 6.8622 -3.99 -4.6769 5.3033 -5.3033
0 // Bar Tube with Clip
1 16 0 30 -2.1 6.25 0 -6.25 0 -20 0 6.33731 0 6.33731 1-4cylo.dat
1 16 0 30 2.1 6.25 0 -6.25 0 -20 0 -6.33731 0 -6.33731 1-4cylo.dat
1 16 0 30 -2.1 -6.25 0 6.25 0 -1 0 6.33731 0 6.33731 1-4chrd.dat
1 16 0 30 2.1 -6.25 0 6.25 0 -1 0 -6.33731 0 -6.33731 1-4chrd.dat
1 16 0 10 -2.1 -6.25 0 6.25 0 1 0 6.33731 0 6.33731 1-4chrd.dat
1 16 0 10 2.1 -6.25 0 6.25 0 1 0 -6.33731 0 -6.33731 1-4chrd.dat
1 16 0 30 0 0 0 4 0 -1 0 4 0 0 4-4ndis.dat
4 16 -6.25 30 4.237 6.25 30 4.237 4 30 4 -4 30 4
4 16 -6.25 30 4.237 -4 30 4 -4 30 -4 -6.25 30 -4.237
4 16 -6.25 30 -4.237 -4 30 -4 4 30 -4 6.25 30 -4.237
4 16 6.25 30 -4.237 4 30 -4 4 30 4 6.25 30 4.237
4 16 -6.25 10 -4.237 6.25 10 -4.237 6.25 10 4.237 -6.25 10 4.237
1 16 6.25 20 0 0 -1 0 0 0 10 -4.23731 0 0 rect.dat
1 16 -6.25 20 0 0 1 0 0 0 10 4.23731 0 0 rect.dat
0 BFC INVERTNEXT
1 16 0 20 0 0 0 -4 0 10 0 4 0 0 4-4cylc.dat
1 16 0 10 0 0 0 -3.9 0 -3.8191 0 3.99 0 0 box4.dat
2 24 3.9 7.5 0 3.9 6.9293 2.8703
2 24 -3.9 6.9293 2.8703 -3.9 7.5 0
2 24 3.9 6.1809 3.99 3.9 6.9293 2.8703
2 24 -3.9 6.9293 2.8703 -3.9 6.1809 3.99
2 24 3.9 6.1809 -3.99 3.9 6.9293 -2.8703
2 24 -3.9 6.1809 -3.99 -3.9 6.9293 -2.8703
2 24 3.9 7.5 0 3.9 6.9293 -2.8703
2 24 -3.9 6.9293 -2.8703 -3.9 7.5 0
2 24 0 6.8622 -3.99 -3.3795 6.1809 -3.99
2 24 0 6.8622 -3.99 3.3795 6.1809 -3.99
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2021-04-10 21:05:01
2021-04-21 19:45:02
Might want to use a ring2 for the central part?
2021-04-21 21:15:01
The centre uses a two 7-16 cylo segemtns the outside two 3-8 segments, as they are not the same number of segments, I cannot cover them with a ring, a prim-substitution would not lead to a good result.
2021-05-30 15:20:01
It is possible to use a 2-4ring2, and it would be more efficient.
2022-11-15 00:10:01
updated to more efficient prim usage
2024-06-24 07:43:52
2024-06-24 14:54:09
2024-06-25 04:56:50
2024-06-30 00:13:29
Release 2024-05
