Official File parts/73398.dat
Part Attributes:
File Header:

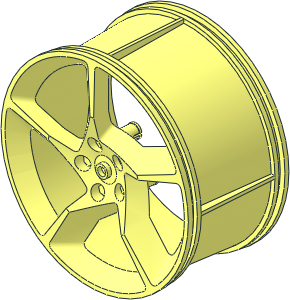

0 Wheel Rim 41 x 75 with 5 Spokes and 3 Pins #1 (Left)
0 Name: 73398.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Part UPDATE 2024-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 75 x 41, BrickLink 80281, Daytona, Ferrari, set 42143
0 !HISTORY 2024-01-29 [OrionP] Official Update 2024-01
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\73398s01.dat
1 16 0 0 -10 1 0 0 0 0 -1 0 1 0 stud2.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Changed name
Adapted outer front ring to cylo primitive
Missing edges around inside and outside of all 3 pins.
Missing 2 edges on the flat side of the spoke.
Missing 2 edges on the flat side of the spoke.
Rearranged subfiles to get unmirrored studs in the main file
@MagFors: I think the 2 lines you are missing aren't sharp edges in the real part. They are smooth and rounded. I used as cond line instead of a line at a first step to get a "smoother" look in LDView. But that may be a bad workaround?
Smoothing 3D shaped corners like that is not so easy using LDPE. Are there any best practices?
Existing certification-votes were deleted.
@MagFors: I think the 2 lines you are missing aren't sharp edges in the real part. They are smooth and rounded. I used as cond line instead of a line at a first step to get a "smoother" look in LDView. But that may be a bad workaround?
Smoothing 3D shaped corners like that is not so easy using LDPE. Are there any best practices?
Existing certification-votes were deleted.
2022-08-12 22:20:02
The edges of the spokes have been rounded. No I am satisfied with the results.
2024-01-07 12:51:23
2024-01-20 18:20:05
bump
2024-01-27 17:28:51
2024-01-29 02:24:01
Release 2024-01
