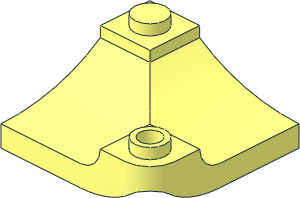

Slope Brick Curved 3 x 3 Corner with Inverted Cutout

File Header:

0 Slope Brick Curved 3 x 3 Corner with Inverted Cutout
0 Name: 73682.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Brick

0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\73682s01.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\73682s01.dat

0 // Bottom
3 16 -10 24 6 -10 24 10 -6 24 10
1 16 -10 24 10 4 0 0 0 -1 0 0 0 -4 1-4chrd.dat
1 16 -10 24 10 4 0 0 0 -11.35 0 0 0 -4 1-4cylo.dat
1 16 -10 12.65 10 4 0 0 0 -1 0 0 0 -4 1-4ndis.dat
2 24 4.35 16.83 -4.35 -6 12.65 6
2 24 8.4953 16.2388 -8.4953 4.35 16.83 -4.35
2 24 8.4953 16.2388 -8.4953 11.1939 14.7742 -11.1939
2 24 11.1939 14.7742 -11.1939 13.1336 12 -13.1336
5 24 27.071 16 -27.071 24.2426 16 -24.2426 23.827 16.761 -29.239 29.239 16.761 -23.827

0 BFC INVERTNEXT
1 16 20 12 -20 6 0 0 0 4 0 0 0 -6 1-4cyli.dat
1 16 20 12 -20 2 0 0 0 -1 0 0 0 -2 1-4ring2.dat
1 16 20 12 -20 6 0 0 0 1 0 0 0 -6 1-4edge.dat
1 16 20 12 -20 4 0 0 0 1 0 0 0 -4 4-4edge.dat
1 16 20 12 -20 4 0 0 0 -1 0 0 0 4 3-4ndis.dat

1 16 10 16 10 1 0 0 0 -2 0 0 0 1 stud4a.dat
1 16 10 16 -10 1 0 0 0 -2 0 0 0 1 stud4a.dat
1 16 -10 15.6 -10 1 0 0 0 -2.1 0 0 0 1 stud4a.dat
1 16 10 16 -10 8 0 0 0 -4 0 0 0 -8 1-4cyli.dat
1 16 10 12 -10 8 0 0 0 1 0 0 0 -8 1-4edge.dat
0 BFC INVERTNEXT
1 16 10 16 -10 6 0 0 0 -4 0 0 0 -6 1-4cyli.dat
1 16 10 12 -10 6 0 0 0 1 0 0 0 -6 1-4edge.dat

0 BFC INVERTNEXT
1 16 -20.25 5.97 20.25 5.75 0 0 0 -1.97 0 0 0 -5.75 box3-3.dat
2 24 -10 10.48 10 -10 24 10
2 24 -14.5 7.94 14.5 -10 10.48 10
2 24 -26 4 26 -26 16 26

0 // Top
1 16 -20 2 20 10 0 0 0 -2 0 0 0 -10 box3-3.dat
1 16 -20 0 20 0 0 1 0 1 0 -1 0 0 stud.dat
2 24 -30 0 30 -30 16 30

2 24 1.716 10.5098 -1.716 5.9694 12.0306 -5.9694
2 24 10 8 -10 9.6956 9.5308 -9.6956
2 24 9.6956 9.5308 -9.6956 8.8284 10.8284 -8.8284
2 24 7.5308 11.6956 -7.5308 8.8284 10.8284 -8.8284
2 24 -4.436 7.5315 4.436 1.716 10.5098 -1.716
2 24 -4.436 7.5315 4.436 -10 4 10
2 24 5.9694 12.0306 -5.9694 7.5308 11.6956 -7.5308
4 16 10 8 -15.36 14 8 -14 15.36 8 -10 10 8 -10
1 16 20 8 -20 10 0 0 0 8 0 0 0 -10 1-4cyli.dat
1 16 20 8 -20 10 0 0 0 1 0 0 0 -10 1-8chrd.dat
1 16 20 8 -20 0 0 10 0 1 0 -10 0 0 1-8chrd.dat
1 16 20 8 -20 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 20 8 -20 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 20 8 -20 10 0 0 0 1 0 0 0 -10 1-4edge.dat

1 16 20 8 -20 1 0 0 0 1 0 0 0 1 stud2a.dat
0 BFC INVERTNEXT
1 16 20 8 -20 4 0 0 0 4 0 0 0 4 4-4cyli.dat

3 16 27.071 16 -27.071 23.827 16 -29.239 23.827 16.761 -29.239
4 16 23.827 16.761 -29.239 23.827 16 -29.239 20 16 -30 19.9989 19.3136 -30
3 16 29.239 16 -23.827 27.071 16 -27.071 29.239 16.761 -23.827
4 16 30 16 -20 29.239 16 -23.827 29.239 16.761 -23.827 30 19.3136 -19.99887695
5 24 20 16 -30 19.9989 19.3136 -30 23.827 16.761 -29.239 10 16 -30
5 24 29.239 16.761 -23.827 29.239 16 -23.827 27.071 16 -27.071 30 19.3136 -19.99887695
5 24 23.827 16.761 -29.239 23.827 16 -29.239 20 16 -30 27.071 16 -27.071
5 24 30 19.3136 -19.99887695 30 16 -20 29.239 16 -23.827 30 16 -10
5 24 22.2962 16.4565 -25.5434 22.2962 16 -25.5434 24.2426 16 -24.2426 20.4897 16.761 -25.9026
5 24 25.5434 16.4565 -22.2962 25.5434 16 -22.2962 24.2426 16 -24.2426 25.9026 16.761 -20.4897
5 24 26 17.0876 -20 26 16 -20 26 19.3136 -15.9989 25.9026 16.761 -20.4897

1 16 -7.3825 18.075 7.3825 1.06066 3.13991 0 0 0 5.425 1.06066 -3.13991 0 box4-2p.dat
2 24 -5.3033 13.7881 3.1819 -4.2426 13.3598 4.2426
2 24 -8.1213 12.65 6 -5.3033 13.7881 3.1819
2 24 -4.2426 13.3598 4.2426 -3.1819 13.7881 5.3033
2 24 -6 12.65 8.1213 -3.1819 13.7881 5.3033
2 24 -6.3218 23.5 8.4431 -7.1716 23.5 7.1716
2 24 -7.1716 23.5 7.1716 -8.4431 23.5 6.3218

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2021-02-27 23:10:02

I think we need a better name for this...

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2024-10-18 15:25:32

* Missing cond:

5 24 20 16 -26 20 17.0876 -26 20.4897 16.761 -25.9026 15.9989 19.3136 -26

* BL calls it an Arc

* Gaps:

2 11 20 19.3136 -30 19.99887695 19.3136 -30
2 11 30 19.3136 -20 30 19.3136 -19.9989

* T-junk:

2 4 16 12 -16 16 12 -24
2 4 20 12 -16 16 12 -16
2 4 16 12 -16 24 12 -16
2 4 16 12 -16 16 12 -20

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2025-01-23 22:51:26

Correcting and smoothed underside

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2025-01-24 08:30:34

* Missing conds on both sides:

2 13 -10 12.65 6 -8.1213 12.65 6
2 13 -8.1213 12.65 6 -6 12.65 6

Gerald Lasser [GeraldLasser]

made the following comment.

2025-01-25 20:57:25

added in subpart

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-01-26 14:13:45

Philippe Hurbain [Philo]

posted a vote of Certify.

2025-02-26 08:32:25

I'd like to see the description aligned with matching 70681.
Currently 70681 is "Slope Brick Curved 1 x 3 with 1 x 2 Inverted Cutout" so maybe "Slope Brick Curved 3 x 3 Corner with Inverted Cutout"?

Orion Pobursky [OrionP]

edited the part header.

2025-02-26 20:40:01

Header Edits

keywords:

to

description:
Brick 3 x 3 with Rounded Inverted Cutout and Rounded Corner
to
Slope Brick Curved 3 x 3 Corner with Inverted Cutout

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2025-02-26 20:40:08

Orion Pobursky [OrionP]

2025-02-27 19:16:35

Release 2025-02
