File Detail parts/73697a.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/73697a.dat

Part Attributes:

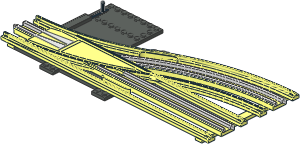

~Train Track 12V Slotted Point Left Base (Straight)

File Header:

0 ~Train Track 12V Slotted Point Left Base (Straight)
0 Name: 73697a.dat
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Shortcut UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CMDLINE -c7

0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2020-08-03 [PTadmin] Renamed from 73696 to correct numbering error
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09

Show contents

0 // Needs Work: This assembly does not yet reference the point's moving rail
0 // part. It has to be added in its proper position, and the
0 // position of the actuator adjusted accordingly.

1 16 0 0 0 1 0 0 0 1 0 0 0 1 864.dat
1 8 0 16 0 0 0 1 0 1 0 -1 0 0 u9033.dat
1 8 -180 16 180 1 0 0 0 1 0 0 0 1 u9035.dat
1 0 -248.6 16 183 -1 0 0 0 1 0 0 0 -1 u9037.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Steffen [Steffen]

initially submitted the part.

2020-08-03 06:40:45

[PTadmin]

renamed the part.

2020-08-03 06:40:45

"parts/73696.dat" to "parts/73697a.dat."

[PTadmin]

edited the part header.

2020-08-03 06:50:01

Rene Rechthaler [Blechtaler]

made the following comment.

2023-09-10 12:31:52

I think 864.dat should be fixed first before certifying this
(864 is a very old part which has errors and a NEEDS WORK)

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2023-09-11 13:08:32

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2023-09-11 15:34:48

please fix 864.dat first

Steffen [Steffen]

made the following comment.

2024-02-10 19:25:23

sorry, that hold vote is invalid.
this is a shortcut, meaning, an assembly of other parts.
it is not valid to post a hold vote on this one when in fact one of the other parts has that flaw.

nothing can be done on THIS part to fix that flaw there.

could you please lift your hold

Steffen [Steffen]

made the following comment.

2024-02-10 19:27:49

especially annoying about this hold vote is
- that 864 itself currently is NOT on the PT
- that 864 already carries a "Needs Work" in the title because it is very, very complex and can need lots of improvements FOREVER
- you are holding up the intention of this PT correction which is adjusting the numbering, which is a completely independent topic.

Rene Rechthaler [Blechtaler]

cancelled their vote.

2024-02-10 19:42:23

hm, the moving "tongue" should be a separate part (gets moved by the pin)
as of now the "straight" and "curved" assembly are the same

Rene Rechthaler [Blechtaler]

posted a vote of Certify.

2025-09-23 19:38:14

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2025-09-24 23:22:51

Orion Pobursky [OrionP]

2025-09-29 04:46:03
