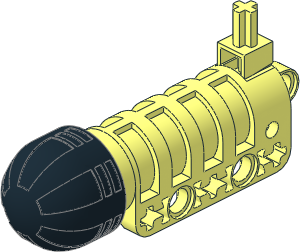

Technic Competition Cannon with Round Bottom (Loaded with Arrow)

File Header:

0 Technic Competition Cannon with Round Bottom (Loaded with Arrow)
0 Name: 76100c02.dat
0 Author: Santeri Piippo [arezey]
0 !LDRAW_ORG Shortcut UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-09-11 [MagFors] Restructured parts
0 !HISTORY 2024-09-15 [GeraldLasser] Corrected spring position
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 32074c02.dat
1 494 0 -20 25.5 0 0 1 -1 0 0 0 -1 0 71830-f2.dat
0 // Trigger, long
1 16 0 -14 37 1 0 0 0 1 0 0 0 1 32075.dat
0 // Arrow
1 16 0 -20 0 1 0 0 0 1 0 0 0 1 76110p01.dat
