Unofficial File parts/77823.dat
Part Attributes:
File Header:

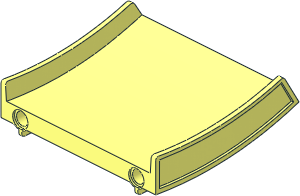

0 Sports Stuntz Loop Ramp Section
0 Name: 77823.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Ramp angle:30°
0 !HELP Ramp radius = 250 ldu (axis at y = -250)
0 BFC CERTIFY CCW
0 !CATEGORY Slope
0 !KEYWORDS Set 60338
0 !HISTORY 2022-12-29 {LEGO Instructions App} Original part shape
0 !HISTORY 2023-01-15 [Philo] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\77823s01.dat
1 16 20 -33.4936 125 -1 0 0 0 0.86603 0.5 0 0.5 -0.86603 s\77823s01.dat
5 24 -69.8 -30.239 60.1652 -69.8 -33.3996 59.1683 -71.5 -27.7529 50.2567 -68.3 -35.8 67.4
5 24 89.8 -5.8797 63.8681 87.7 -6.2279 63.7614 88.3 -3.6843 54.5687 89.4 -9.3 74.6
5 24 62.85 -14.1148 63.2052 -42.85 -14.1148 63.2052 -40.2 -17.6 75.2 60.2 -11.1357 51.0749
5 24 -69.8 -30.239 60.1652 -67.7 -29.8908 60.2719 -68.3 -32.7 68.5 -69.4 -27.4431 50.3201
5 24 -67.7 -29.8908 60.2719 -67.7 -7.0065 66.6671 -69.4 -4.2477 55.7445 -66.2 -9.7 75.8
5 24 -64.4 -17.7703 62.2258 84.4 -17.7703 62.2258 -63.2 -19.8 69.4 83.2 -15.941 54.9978
5 24 -67.7 -7.0065 66.6671 -69.8 -6.6516 66.7488 -69.4 -4.2477 55.7445 -68.3 -9.4 75.9
5 24 -64.6 -14.8317 60.8658 -65.3 -2.5695 67.5426 -62.9 -18 71.2 -67 0.1396 56.5455
5 24 -65.3 -33.4929 59.0933 -69.8 -33.3996 59.1683 -68.3 -35.8 67.4 -67.1 -31.0974 49.2495
5 24 -69.8 -2.7128 67.6542 -65.3 -2.5695 67.5426 -67 0.1396 56.5455 -68.3 -5.4 76.8
5 24 87.7 -29.2439 57.8576 89.8 -29.5988 57.7759 88.3 -27.5627 49.3273 89.4 -32.1 67.7
5 24 89.8 -32.8344 57.0589 85.3 -32.9527 57.0773 88.3 -30.7974 48.7299 87.1 -35.8 66.8
5 24 -65.3 -33.4929 59.0933 -64.4 -17.7703 62.2258 -63.2 -19.8 69.4 -67.1 -31.0974 49.2495
5 24 -62.1 -15.0366 60.5975 -64.6 -14.8317 60.8658 -63.7 -12.9079 50.7445 -62.9 -18 71.2
5 24 -69.8 -2.7128 67.6542 -69.8 -6.6516 66.7488 -71.4 -3.9379 55.8079 -68.3 -5.4 76.8
5 24 85.3 -1.9477 65.2216 89.8 -2.016 65.0533 88.3 0.2298 55.7892 87 -5.1 76.1
5 24 82.1 -16.217 65.0027 84.6 -15.9054 64.8728 83.7 -19.3 74.6 82.9 -13.4821 54.339
5 24 89.8 -5.8797 63.8681 89.8 -2.016 65.0533 91.4 -9 74.7 88.3 0.2298 55.7892
5 24 89.8 -32.8344 57.0589 89.8 -29.5988 57.7759 88.3 -30.7974 48.7299 91.5 -32.4 67.6
5 24 84.4 -17.7703 62.2258 85.3 -32.9527 57.0773 83.2 -15.941 54.9978 87.1 -35.8 66.8
5 24 87.7 -6.2279 63.7614 87.7 -29.2439 57.8576 86.2 -3.9941 54.5053 89.4 -9.3 74.6
5 24 85.3 -1.9477 65.2216 84.6 -15.9054 64.8728 87 -5.1 76.1 82.9 -13.4821 54.339
Status:
Awaiting Admin Review (CCN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| Holly-Wood | Certify |
| WUIt | Certify |
Official parents and subparts
Part Events:
2023-01-15 14:40:01
2023-01-16 23:05:02
I recommend adding a couple of lines of !HELP with the position of the pins and the next piece of ramp. Or indicating in the description the angle covered by the ramp.
Added !HELP
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2023-01-18 13:25:02
Should we make a c01 that includes the 2780 pins?
2023-01-18 14:45:02
I don't see much the point...
2023-01-18 16:35:02
Ease of placement? On the other hand, part snapping makes it good to handle
2023-01-18 22:55:01
Since the rotation point is not the origin (and I don't think it should be), I think it would be reasonable to have a !HELP for the rotation point relative to the origin.
This was implied by radius value, but made it more explicit.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2023-01-19 23:40:01
In the future, you can header edit instead of recycling the part.
