File Detail parts/78594.dat

Official File parts/78594.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

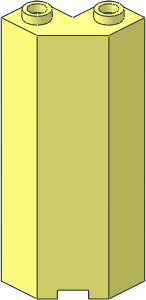

0 Panel Wall  2 x  2 x  5 Corner Faceted
0 Name: 78594.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2021-07-13 [GeraldLasser] Derieved from 87620 by [Duq]
0 !HISTORY 2024-07-29 [OrionP] Official Update 2024-06

Show contents

0 // Bottom
4 16 2.61594 120 -11.3841 5.61594 120 -14.3841 0 120 -20 -2 120 -16
3 16 -4 120 -16 -2 120 -16 0 120 -20
4 16 -4 120 -16 0 120 -20 -20 120 -20 -16 120 -16
4 16 -16 120 -16 -20 120 -20 -20 120 0 -16 120 -4
4 16 -16 120 -4 -20 120 0 0 120 0 -4 120 -4
3 16 0 120 -4 -2 120 -4 0 120 0
3 16 -2 120 -4 -4 120 -4 0 120 0
1 16 0 120 0 4 0 0 0 -1 0 0 0 -4 1-4disc.dat
3 16 4 120 4 4 120 2 0 120 0
3 16 4 120 2 4 120 0 0 120 0
4 16 4 120 4 0 120 0 0 120 20 4 120 16
4 16 4 120 16 0 120 20 20 120 20 16 120 16
4 16 16 120 16 20 120 20 20 120 0 16 120 4
3 16 16 120 4 20 120 0 16 120 2
4 16 16 120 2 20 120 0 14.3841 120 -5.61594 11.3841 120 -2.61594
4 16 4 120 4 16 120 4 16 120 2 4 120 2
4 16 -2 120 -4 -2 120 -16 -4 120 -16 -4 120 -4
2 24 0 120 20 20 120 20
2 24 -20 120 0 -20 120 -20
2 24 0 120 -20 5.6159 120 -14.3841
2 24 14.3841 120 -5.6159 20 120 0

0 BFC INVERTNEXT
1 16 -10 120 -10 0 0 -6 0 -4 0 6 0 0 box5.dat
0 BFC INVERTNEXT
1 16 10 120 10 0 0 6 0 -4 0 6 0 0 box5.dat

0 BFC INVERTNEXT
1 16 -1 118 -10 0 0 -1 -2 0 0 0 6 0 box2-7.dat
0 BFC INVERTNEXT
1 16 10 118 1 0 -6 0 2 0 0 0 0 1 box2-7.dat
1 16 0 116 0 0 0 4 0 4 0 -4 0 0 1-4cylo.dat
1 16 0 116 0 4 0 0 0 -1 0 0 0 -4 1-4ndis.dat
0 BFC INVERTNEXT
1 16 8.5 120 -8.5 -1.5 0 4.38406 0 -4 0 1.5 0 4.38406 box3u5p.dat
1 16 13.69203 118 -.30797 0 1 2.30797 -2 0 0 0 0 2.30797 rect.dat
1 16 .30797 118 -13.69203 0 1 -2.30797 2 0 0 0 0 -2.30797 rect.dat
3 16 2.61594 116 -11.38406 -2 116 -16 -2 116 -4
3 16 4 116 -4 2.61594 116 -11.38406 -2 116 -4
3 16 2.61594 116 -11.38406 4 116 -4 11.38406 116 -2.61594
3 16 11.38406 116 -2.61594 4 116 -4 4 116 2
3 16 16 116 2 11.38406 116 -2.61594 4 116 2

0 // Bottom Inside
0 BFC INVERTNEXT
1 16 -10 116 10 0 10 0 -4 0 0 0 0 -10 box2-5.dat
4 16 0 112 20 16 112 20 20 120 20 0 120 20
4 16 -20 112 -16 -20 112 0 -20 120 0 -20 120 -20
3 16 -1.6568 112 -16 16 112 1.6568 0 112 0
4 16 0 112 0 16 112 1.6568 16 112 20 0 112 20
4 16 -20 112 -16 -1.6568 112 -16 0 112 0 -20 112 0
2 24 -20 112 -16 -20 112 0
2 24 16 112 20 0 112 20

0 // Walls
1 16 7.17155 58 -7.17155 0 1 -8.82845 54 0 0 0 0 -8.82845 rect.dat
1 16 16 58 10.82845 0 1 0 -54 0 0 0 0 9.17155 rect3.dat
1 16 -10.82845 58 -16 0 0 -9.17155 54 0 0 0 -1 0 rect3.dat
4 16 0 120 -20 5.6159 120 -14.3841 5.6159 116 -14.3841 0 0 -20
4 16 5.6159 116 -14.3841 14.3841 116 -5.6159 20 0 0 0 0 -20
4 16 14.3841 120 -5.6159 20 120 0 20 0 0 14.3841 116 -5.6159
1 16 10 60 -10 10 -1 0 0 0 -60 10 0 0 recte3.dat
1 16 20 60 10 0 -1 0 60 0 0 0 0 10 rect3.dat
1 16 -10 60 -20 0 0 -10 -60 0 0 0 1 0 rect3.dat
4 16 20 120 20 16 112 20 16 4 20 20 0 20
4 16 -20 0 -20 -20 4 -16 -20 112 -16 -20 120 -20

0 // Top
1 16 2.5 0 17.5 0 0 -2.5 0 4 0 2.5 0 0 1-4cylo.dat
1 16 -17.5 0 -2.5 0 0 -2.5 0 4 0 2.5 0 0 1-4cylo.dat
1 16 2.5 4 17.5 0 0 -2.5 0 -1 0 2.5 0 0 1-4chrd.dat
1 16 -17.5 4 -2.5 0 0 -2.5 0 -1 0 2.5 0 0 1-4chrd.dat
1 16 2.5 0 17.5 0 0 -2.5 0 1 0 2.5 0 0 1-4chrd.dat
1 16 -17.5 0 -2.5 0 0 -2.5 0 1 0 2.5 0 0 1-4chrd.dat

3 16 0 4 0 16 4 1.6569 -1.6569 4 -16
4 16 -17.5 4 0 0 4 0 -1.6569 4 -16 -20 4 -2.5
3 16 -1.6569 4 -16 -20 4 -16 -20 4 -2.5
4 16 2.5 4 20 16 4 20 16 4 1.6569 0 4 17.5
3 16 0 4 17.5 16 4 1.6569 0 4 0
2 24 2.5 4 20 16 4 20
2 24 -20 4 -2.5 -20 4 -16
0 BFC INVERTNEXT
1 16 -8.75 2 8.75 0 8.75 0 -2 0 0 0 0 -8.75 box2-7.dat
4 16 16 4 20 2.5 4 20 2.5 0 20 20 0 20
4 16 -20 0 -20 -20 0 -2.5 -20 4 -2.5 -20 4 -16
2 24 -20 0 -2.5 -20 0 -20
2 24 2.5 0 20 20 0 20

3 16 -20 0 -2.5 -20 0 -20 0 0 -20
4 16 20 0 0 20 0 20 2.5 0 20 0 0 17.5
3 16 0 0 0 0 0 -20 20 0 0

3 16 0 0 17.5 0 0 0 20 0 0
4 16 -17.5 0 0 -20 0 -2.5 0 0 -20 0 0 0

1 16 -10 0 -10 -1 0 0 0 1 0 0 0 -1 stud2.dat
1 16 10 0 10 -1 0 0 0 1 0 0 0 -1 stud2.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2021-07-13 15:25:01

Origin question:

it is now like the brick in the same shape
This follows also the origin of Panel Wall 3 x 3 x 6 Corner (87421)

Or should it be like 30987 ?

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2021-07-13 15:50:01

wrong studs were used

Magnus Forsberg [MagFors]

made the following comment.

2021-08-29 14:45:01

Why 1-4disc, on the 2 top corners?

I prefer this origin.

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2024-06-03 20:34:44

chnged disc to chrd.

those were remains from an old ppart as I recyled one
