Official File parts/79387.dat
Part Attributes:
File Header:

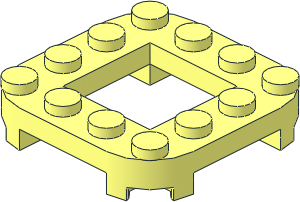

0 Plate 4 x 4 x 0.667 with Rounded Corners and 2 x 2 Centre Cutout
0 Name: 79387.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2023-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\79387s01.dat
0 BFC INVERTNEXT
1 16 0 6 -36 20 0 0 0 0 -2 0 12 0 box4-7a.dat
2 24 -20 4 -36 20 4 -36
3 16 -20 16 -20 -20 8 -24 -20 8 -36
3 16 20 8 -24 20 16 -20 20 8 -36
3 16 -20 16 -20 -20 8 -20 -20 8 -24
3 16 20 8 -24 20 8 -20 20 16 -20
1 16 0 4 -22 -20 0 0 0 4 0 0 0 2 box2-5.dat
0 BFC INVERTNEXT
1 16 36 6 0 0 -12 0 0 0 -2 20 0 0 box4-7a.dat
2 24 36 4 -20 36 4 20
3 16 20 16 -20 24 8 -20 36 8 -20
3 16 24 8 20 20 16 20 36 8 20
3 16 20 16 -20 20 8 -20 24 8 -20
3 16 24 8 20 20 8 20 20 16 20
1 16 22 4 0 0 0 -2 0 4 0 -20 0 0 box2-9p.dat
0 BFC INVERTNEXT
1 16 0 6 36 -20 0 0 0 0 -2 0 -12 0 box4-7a.dat
2 24 20 4 36 -20 4 36
3 16 20 16 20 20 8 24 20 8 36
3 16 -20 8 24 -20 16 20 -20 8 36
3 16 20 16 20 20 8 20 20 8 24
3 16 -20 8 24 -20 8 20 -20 16 20
1 16 0 4 22 20 0 0 0 4 0 0 0 -2 box2-5.dat
0 BFC INVERTNEXT
1 16 -36 6 0 0 12 0 0 0 -2 -20 0 0 box4-7a.dat
2 24 -36 4 20 -36 4 -20
3 16 -20 16 20 -24 8 20 -36 8 20
3 16 -24 8 -20 -20 16 -20 -36 8 -20
3 16 -20 16 20 -20 8 20 -24 8 20
3 16 -24 8 -20 -20 8 -20 -20 16 -20
1 16 -22 4 0 0 0 2 0 4 0 20 0 0 box2-9p.dat
2 24 20 8 20 24 8 20
2 24 20 8 -20 24 8 -20
2 24 -24 8 20 -20 8 20
2 24 -24 8 -20 -20 8 -20
2 24 -20 8 -20 -20 16 -20
2 24 -20 8 20 -20 16 20
2 24 20 8 20 20 16 20
2 24 20 8 -20 20 16 -20
0 // Bottom Antistuds
1 16 -30 4 0 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 30 4 0 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 0 4 30 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 0 4 -30 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 -30 4 18 1.5 0 0 0 4 0 0 0 -2 box4-1.dat
1 16 -30 4 -18 1.5 0 0 0 4 0 0 0 2 box4-1.dat
1 16 -18 4 -30 0 0 2 0 4 0 1.5 0 0 box4-1.dat
1 16 -18 4 30 0 0 2 0 4 0 -1.5 0 0 box4-1.dat
1 16 30 4 -18 -1.5 0 0 0 4 0 0 0 2 box4-1.dat
1 16 30 4 18 -1.5 0 0 0 4 0 0 0 -2 box4-1.dat
1 16 18 4 30 0 0 -2 0 4 0 -1.5 0 0 box4-1.dat
1 16 18 4 -30 0 0 -2 0 4 0 -1.5 0 0 box4-1.dat
0 // Top
3 16 20 0 40 20 0 20 40 0 20
3 16 40 0 -20 20 0 -20 20 0 -40
3 16 -20 0 -40 -20 0 -20 -40 0 -20
3 16 -20 0 20 -20 0 40 -40 0 20
4 16 -20 0 40 -20 0 20 20 0 20 20 0 40
4 16 40 0 -20 40 0 20 20 0 20 20 0 -20
4 16 20 0 -40 20 0 -20 -20 0 -20 -20 0 -40
4 16 -40 0 -20 -20 0 -20 -20 0 20 -40 0 20
1 16 30 0 0 0 0 1 0 1 0 -1 0 0 stug-1x4.dat
1 16 -30 0 0 0 0 1 0 1 0 -1 0 0 stug-1x4.dat
1 16 0 0 30 0 0 1 0 1 0 -1 0 0 stug-2x1.dat
1 16 0 0 -30 0 0 1 0 1 0 -1 0 0 stug-2x1.dat
1 16 30 0 30 6 0 0 0 -1 0 0 0 6 1-4chrd.dat
1 16 30 0 -30 0 0 6 0 -1 0 -6 0 0 1-4chrd.dat
1 16 -30 0 -30 -6 0 0 0 -1 0 0 0 -6 1-4chrd.dat
1 16 -30 0 30 0 0 -6 0 -1 0 6 0 0 1-4chrd.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2021-10-11 16:50:02
Missing a box prim.
the box prim was not correctly flipped...
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2021-12-26 10:20:01
Misses some whitespace in the beginning of the description.
2022-06-21 14:55:01
"studs on edge" is not really meaningful here...
2022-06-21 15:20:01
studs can go then from the description, plate with a hole in the centre implies studs on the remaining surface, I'll edit
[PTadmin]
edited the part header.
2022-06-21 15:20:01
2022-06-21 15:25:01
Please add the whitespace too...
[PTadmin]
edited the part header.
2022-06-21 16:25:02
2022-06-21 16:25:02
Added whitespace in the beginning of the description.
2022-06-21 16:30:01
2023-10-29 21:40:47
2023-10-30 10:44:29
Should a different stud be used in the corners to prevent the slight overlap?
2023-10-31 03:34:36
Release 2023-05
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
