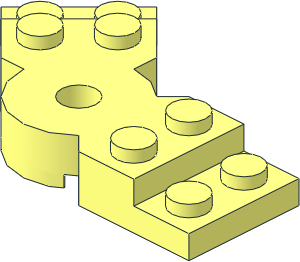

Plate 2 x 6 Angled 135 Degrees with Centre Hole

File Header:

0 Plate  2 x  6 Angled 135 Degrees with Centre Hole
0 Name: 79846.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2023-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-11-19 [OrionP] Official Update 2023-06

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\79846s01.dat
1 16 30 0 0 1 0 0 0 1 0 0 0 1 stug-2x1.dat
1 16 50 8 0 1 0 0 0 1 0 0 0 1 stug-2x1.dat

1 16 0 0 0 -.70711 0 .70711 0 1 0 .70711 0 .70711 s\79846s01.dat
1 16 -21.2132 0 21.2132 -.70711 0 -.70711 0 1 0 .70711 0 -.70711 stug-2x1.dat
1 16 -35.3553 8 35.3553 -.70711 0 -.70711 0 1 0 .70711 0 -.70711 stug-2x1.dat

0 // Centre Bottom and Inside
1 16 0 4 0 1 0 0 0 -3 0 0 0 1 stud4a.dat
1 16 0 4 0 0 0 8 0 1 0 8 0 0 4-4edge.dat
1 16 0 4 0 0 0 8 0 -1 0 8 0 0 4-4ring1.dat
1 16 0 4 0 0 0 16 0 1 0 16 0 0 4-4edge.dat

0 BFC INVERTNEXT
1 16 0 4 0 16 0 0 0 8 0 0 0 16 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 12 0 0 0 16 0 4 0 -16 0 0 1-16cyli.dat
0 BFC INVERTNEXT
1 16 0 12 0 0 0 -16 0 4 0 -16 0 0 3-16cyli.dat
1 16 0 16 0 0 0 -16 0 1 0 -16 0 0 3-16edge.dat
1 16 0 16 0 0 0 16 0 1 0 -16 0 0 1-16edge.dat
1 16 0 12 0 0 0 16 0 1 0 16 0 0 1-8edge.dat

1 16 0 16 0 -3.69552 0 1.53073 0 -1 0 -1.53073 0 -3.69552 1-4ring4.dat
1 16 0 12 0 0 0 4 0 -1 0 4 0 0 1-8ring4.dat
1 16 0 16 0 0 0 -20 0 1 0 -20 0 0 3-16edge.dat
1 16 0 16 0 0 0 20 0 1 0 -20 0 0 1-16edge.dat

0 // Outside
1 16 0 0 0 0 0 20 0 12 0 20 0 0 1-8cylo.dat
1 16 0 0 0 0 0 20 0 12 0 -20 0 0 1-8cyli.dat
1 16 0 0 0 0 0 -20 0 12 0 -20 0 0 1-4cyli.dat
1 16 0 12 0 0 0 -20 0 4 0 -20 0 0 3-16cyli.dat
1 16 0 12 0 0 0 20 0 4 0 -20 0 0 1-16cyli.dat
1 16 0 0 0 0 0 20 0 1 0 -20 0 0 1-8edge.dat
1 16 0 0 0 0 0 -20 0 1 0 -20 0 0 1-4edge.dat

1 16 0 0 0 0 0 -20 0 1 0 -20 0 0 1-4chrd.dat
1 16 0 0 0 0 0 20 0 1 0 -20 0 0 1-8chrd.dat
1 16 0 0 0 0 0 20 0 1 0 20 0 0 1-8chrd.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 0 0 6 0 0 0 4 0 0 0 6 4-4cyli.dat

3 16 0 0 -6 -6 0 -6 0 0 -20
3 16 6 0 -6 0 0 -6 0 0 -20
3 16 6 0 -6 0 0 -20 14.142 0 -14.142
3 16 0 0 -20 -6 0 -6 -20 0 0
3 16 -20 0 0 -6 0 -6 -6 0 0
3 16 -20 0 0 -6 0 0 -6 0 6
3 16 -20 0 0 -6 0 6 0 0 20
3 16 0 0 20 -6 0 6 0 0 6
3 16 0 0 20 0 0 6 6 0 6
3 16 0 0 20 6 0 6 14.142 0 14.142
3 16 6 0 6 6 0 0 14.142 0 14.142
3 16 14.142 0 14.142 6 0 0 14.142 0 -14.142
3 16 14.142 0 -14.142 6 0 0 6 0 -6
