Official File parts/79896.dat
Part Attributes:
File Header:

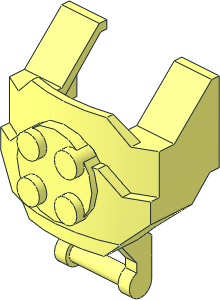

0 Cockpit 4 x 2 x 5 with Handle
0 Name: 79896.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS battle suit, body, breastplate, mech, Ninjago, slope
0 !HISTORY 2022-01-30 {LEGO Instructions App} Original part shape
0 !HISTORY 2022-02-02 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\79896s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\79896s01.dat
1 16 -10 -40 -26 0 0 1 1 0 0 0 1 0 studa.dat
1 16 -10 -60 -26 0 0 1 1 0 0 0 1 0 studa.dat
1 16 10 -40 -26 0 0 1 1 0 0 0 1 0 studa.dat
1 16 10 -60 -26 0 0 1 1 0 0 0 1 0 studa.dat
1 16 14 0 0 0 -28 0 0 0 -4 4 0 0 4-4cylo.dat
3 16 0 -20 -22.05 -14 -20 -1 14 -20 -1
1 16 0 -10 4 14 0 0 0 -1 0 0 0 -2 rect2p.dat
1 16 0 -13.75 2 0 0 -14 -3.75 0 0 0 1 0 rect1.dat
1 16 0 -18.75 .5 0 0 -14 -1.25 -1 0 -1.5 0 0 rect1.dat
4 16 14 -10 6 -14 -10 6 -20 -19 6 20 -19 6
1 16 0 -21.5 3.5 -20 0 0 0 0 -2.5 0 -1 -2.5 rect2p.dat
4 16 8 -30 -23 -8 -30 -23 -16.2 -50 -23 16.2 -50 -23
2 24 -16.2 -50 -23 16.2 -50 -23
3 16 6 -30 -18 0 -30 -17.112 -6 -30 -18
1 16 0 -30 -20.5 0 0 6 0 1 0 -2.5 0 0 rect1.dat
3 16 -20 -24 1 0 -24 -17.112 20 -24 1
1 16 0 -50 -20.5 -1 0 0 0 4 0 0 0 2.5 box4-2p.dat
1 16 0 -51.5 -18 0 0 20 -1.5 0 0 0 -1 0 rect1.dat
2 24 16.274 -53 -23 -16.274 -53 -23
4 16 -20 -53 -18 -20 -53 -20.7 20 -53 -20.7 20 -53 -18
4 16 -16.274 -53 -23 16.274 -53 -23 20 -53 -20.7 -20 -53 -20.7
3 16 16.274 -53 -23 -16.274 -53 -23 0 -66.275 -23
5 24 0 -66.275 -17.25 0 -80 -17.25 10.167 -80 -16.59 -10.167 -80 -16.59
5 24 0 -66.275 -23 0 -66.275 -17.25 5 -65.488 -16.9254 -5 -65.488 -16.9254
5 24 0 -24 -17.112 0 -30 -17.112 5.952 -30 -16.782 -5.952 -30 -16.782
5 24 0 -30 -25.55 0 -28.7 -25.55 10.167 -28.7 -24.89 -10.167 -28.7 -24.89
5 24 0 -28.7 -22.05 0 -20 -22.05 10.167 -20 -21.39 -10.167 -20 -21.39
5 24 0 -80 -20.85 0 -70 -20.85 10.167 -66.7985 -20.19 -10.167 -66.7985 -20.19
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2022-02-02 09:40:01
2022-02-02 21:50:01
Misses a condline:
5 24 18.478 3.2 -7.654 18.478 0 -7.654 15.6145 2.2125 -11.9387 20 0 0
5 24 18.478 3.2 -7.654 18.478 0 -7.654 15.6145 2.2125 -11.9387 20 0 0
Sorry, my hold vote was for the subpart...
2022-02-11 18:50:02
I'm open to better names... I already put cockpit as keyword.
This is a Cockpit part and should be oriented as 27167 and have the origin in the hinge/handle.
I know it doesn't fit 27168, but it's made for, and used as the front of the mech suits in Ninjago.
https://brickset.com/sets/containing-design-79896
I know it doesn't fit 27168, but it's made for, and used as the front of the mech suits in Ninjago.
https://brickset.com/sets/containing-design-79896
Makes sense... changed orientation. Not fully sure about dimensions in description.
2023-08-27 14:15:07
2024-06-03 21:20:48
2024-06-13 16:11:49
