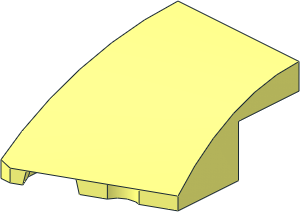

Slope Brick Curved 3 x 2 with Cutout Left

File Header:

0 Slope Brick Curved  3 x  2 with Cutout Left
0 Name: 80177.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2023-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2022-03-15 {LEGO Instructions App} Original part shape
0 !HISTORY 2022-03-17 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2023-11-19 [OrionP] Official Update 2023-06

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\80177s01.dat

3 16 20 0 30 -20 0 30 -20 0.5872 18.9266
3 16 -20 0.5872 18.9266 20 0.5872 22.6177 20 0 30
3 16 20 0.5872 22.6177 -20 0.5872 18.9266 -20 2.3284 8.0399
3 16 -20 2.3284 8.0399 20 2.3284 15.3599 20 0.5872 22.6177
3 16 -20 2.3284 8.0399 -20 5.1963 -2.4735 20 2.3284 15.3599
3 16 -20 5.1963 -2.4735 -20 9.1499 -12.4268 20 5.1963 8.351
3 16 20 5.1963 8.351 20 2.3284 15.3599 -20 5.1963 -2.4735
3 16 20 5.1963 8.351 -20 9.1499 -12.4268 -20 14.1072 -21.6589
3 16 -20 14.1072 -21.6589 20 9.1499 1.7155 20 5.1963 8.351
3 16 20 9.1499 1.7155 -20 14.1072 -21.6589 -20 18.9403 -28.5
3 16 20 9.1499 1.7155 -20 18.9403 -28.5 -17 20 -28.5
3 16 -17 20 -28.5 20 14.1072 -4.4392 20 9.1499 1.7155
3 16 20 14.1072 -4.4392 -17 20 -28.5 20 20 -10
5 24 -17 20 -28.5 20 9.1499 1.7155 20 14.1072 -4.4392 -20 18.9403 -28.5
5 24 20 5.1963 8.351 -20 5.1963 -2.4735 20 2.3284 15.3599 -20 9.1499 -12.4268
5 24 -17 20 -28.5 20 14.1072 -4.4392 20 20 -10 -20 18.9403 -28.5
5 24 -20 9.1499 -12.4268 20 5.1963 8.351 20 2.3284 15.3599 -20 14.1072 -21.6589
5 24 -20 2.3284 8.0399 20 0.5872 22.6177 -20 0.5872 18.9266 20 2.3284 15.3599
5 24 -20 5.1963 -2.4735 20 2.3284 15.3599 -20 2.3284 8.0399 -20 9.1499 -12.4268
5 24 -20 14.1072 -21.6589 20 5.1963 8.351 -20 9.1499 -12.4268 20 9.1499 1.7155
5 24 -20 0.5872 18.9266 20 0.5872 22.6177 20 0 30 -20 2.3284 8.0399
5 24 -20 14.1072 -21.6589 20 9.1499 1.7155 20 5.1963 8.351 -20 18.9403 -28.5
5 24 -20 2.3284 8.0399 20 2.3284 15.3599 20 0.5872 22.6177 -20 5.1963 -2.4735
5 24 -20 18.9403 -28.5 20 9.1499 1.7155 -20 14.1072 -21.6589 20 14.1072 -4.4392
5 24 -20 0.5872 18.9266 20 0 30 -20 0 30 20 0.5872 22.6177
