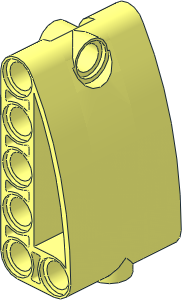

0 Technic Panel 3 x 2 x 5
0 Name: 80285.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 42#
0 !HISTORY 2024-01-01 [MMR1988] Fixed lenght of 3 inner surfaces
0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\80285s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\80285s01.dat
0 // Peghole Tall End
1 16 0 10 0 -9 0 0 0 -1 0 0 0 -9 4-4cyli.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 -1 connhol3.dat
1 16 0 7 0 0 0 -8 0 -15 0 8 0 0 2-4cylo.dat
1 16 0 10 0 -9 0 0 0 -1 0 0 0 -9 4-4edge.dat
1 16 0 -8 0 0 0 -2 0 1 0 2 0 0 2-4ring3.dat
1 16 0 -8 0 0 0 6 0 1 0 6 0 0 2-4ndis.dat
4 16 5.393 -15.4 10 5.83595 -10 5.38874 5.83595 -10 -5.38874 5.393 -15.4 -10
1 16 5.5 -20 0 0 -13.5 0 0 0 1 10 0 0 box3u4a.dat
2 24 4.72689 -21 10 4.72689 -21 -10
2 24 4.96479 -19 -10 4.96479 -19 10
3 16 8 -10 0 5.83595 -10 -5.38874 5.83595 -10 5.38874
2 24 5.83595 -10 5.38874 5.83595 -10 -5.38874
2 24 5.83595 -10 -5.38874 6 -8 -5.14327
2 24 6 -8 5.143266 5.835946 -10 5.388742
0 // Peghole Small Side
1 16 -30 -80 0 0 20 0 0 0 -9 9 0 0 2-4cyli.dat
1 16 -20 -80 0 0 1 0 -1 0 0 0 0 1 connhole.dat
1 16 -10 -80 0 0 -1 0 0 0 1 -1 0 0 2-4ring9.dat
1 16 -30 -80 0 0 19 0 0 0 9 -9 0 0 2-4cyli.dat
1 16 -12.85 -80 0 0 1 0 0 0 3 -3 0 0 2-4ring3.dat
1 16 -12.85 -80 0 0 1 0 0 0 9 -9 0 0 2-4edge.dat
1 16 -30 -80 0 0 1 0 0 0 -9 9 0 0 4-4edge.dat
1 16 -10 -80 0 0 1 0 -3.4442 0 -8.3149 8.3149 0 -3.4442 3-8edge.dat
1 16 -12.85 -80 0 0 1 0 0 0 12 -12 0 0 2-4edge.dat
1 16 -10 -80 0 0 1 0 0 0 10 -10 0 0 2-4edge.dat
0 // Centre
1 16 -61.623 0 -12 70.6233 0 0 0 0 -118.008 0 24 0 48\1-12cyli.dat
3 16 -4.855 -70 0 -.464 -59.004 -12 -.464 -59.004 12
5 24 -.464 -59.004 -12 -.464 -59.004 12 -5.591 -71.843 -12 3.62586687 -45.1616616 -12
3 16 -3.464 -59.004 -10 -7.056 -68 0 -3.464 -59.004 10
4 16 5.393 -15.4 -10 3.592 -30.541 -10 3.592 -30.541 10 5.393 -15.4 10
4 16 3.592 -30.541 -10 .626 -45.162 -10 .626 -45.162 10 3.592 -30.541 10
4 16 .626 -45.162 -10 -3.464 -59.004 -10 -3.464 -59.004 10 .626 -45.162 10
5 24 6 -8 -10 6 -8 12 5.393 -15.4 -10 7 0 -10
5 24 5.393 -15.4 -10 5.393 -15.4 12 3.592 -30.541 -10 6 -8 -10
5 24 3.592 -30.541 -10 3.592 -30.541 12 .626 -45.162 -10 5.393 -15.4 -10
5 24 .626 -45.162 -10 .626 -45.162 12 -3.464 -59.004 -10 3.592 -30.541 -10
5 24 -3.464 -59.004 -10 -3.464 -59.004 12 -8.591 -71.843 -10 .626 -45.162 -10
