Official File parts/80545.dat
Part Attributes:
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

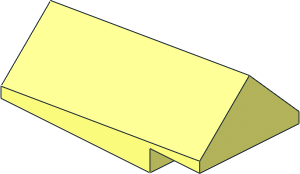

Slope Brick 45  2 x  4 x  1.333 Double, Wedge
File Header:
0 Slope Brick 45 2 x 4 x 1.333 Double, Wedge 0 Name: 80545.dat 0 Author: Gerald Lasser [GeraldLasser] 0 !LDRAW_ORG Part UPDATE 2024-05 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2022-10-24 [mkennedy] added missing edge lines, used 2-4stud4a, combined some triangles into quads, moved origin 0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
4 16 20 32 20 16 32 16 -36 32 16 -40 32 20 4 16 -40 32 20 -36 32 16 -36 32 -16 -40 32 -20 4 16 -40 32 -20 -36 32 -16 16 32 -16 20 32 -20 4 16 20 32 -20 16 32 -16 16 32 16 20 32 20 1 16 -10 32 0 -26 0 0 0 -1 0 0 0 16 recte4.dat 1 16 -10 32 0 -30 0 0 0 -1 0 0 0 20 recte4.dat 1 16 -36 30.1 0 0 -1 0 -1.9 0 0 0 0 16 rect2p.dat 4 16 -36 32 -16 -36 28.2 -16 16 23 -16 16 32 -16 4 16 16 23 16 -36 28.2 16 -36 32 16 16 32 16 1 16 16 27.5 0 0 1 0 4.5 0 0 0 0 16 rect2p.dat 3 16 16 23 16 16 23 -16 16 7 0 3 16 -36 28.2 16 -36 12.2 0 -36 28.2 -16 0 BFC INVERTNEXT 1 16 -10 25.6 0 -26 0 0 2.6 -8 -8 0 -8 8 box2-5.dat 1 16 -20 19.4 0 1 0 0 0 -3.15 0 0 0 1 stud4a.dat 0 BFC INVERTNEXT 1 16 -20 19.4 0 -6 0 0 0 -2.2 0 0 0 6 4-4cyli.dat 0 BFC INVERTNEXT 1 16 -20 17.2 0 -6 0 0 0 -0.6 0 0 0 6 4-4cyls.dat 1 16 -20 19.4 0 -8 0 0 0 -0.8 0 0 0 8 4-4cyls.dat 1 16 -20 10.6 0 6 0 0 -0.6 1 6 0 0 6 2-4edge.dat 1 16 -20 10.6 0 6 0 0 -0.6 1 6 0 0 -6 2-4edge.dat 1 16 -20 10.6 0 8 0 0 -0.8 1 8 0 0 8 2-4edge.dat 1 16 -20 10.6 0 8 0 0 -0.8 1 8 0 0 -8 2-4edge.dat 0 BFC INVERTNEXT 1 16 -20 16.6 0 0 0 6 0 -6 -0.6 -6 0 0 1-4cyls.dat 0 BFC INVERTNEXT 1 16 -20 16.6 0 0 0 -6 0 -6 0.6 -6 0 0 1-4cyls.dat 0 BFC INVERTNEXT 1 16 -20 16.6 0 0 0 6 0 -6 -0.6 6 0 0 1-4cyls.dat 0 BFC INVERTNEXT 1 16 -20 16.6 0 0 0 -6 0 -6 0.6 6 0 0 1-4cyls.dat 1 16 -20 18.6 0 0 0 8 0 -8 -0.8 -8 0 0 1-4cyls.dat 1 16 -20 18.6 0 0 0 -8 0 -8 0.8 -8 0 0 1-4cyls.dat 1 16 -20 18.6 0 0 0 8 0 -8 -0.8 8 0 0 1-4cyls.dat 1 16 -20 18.6 0 0 0 -8 0 -8 0.8 8 0 0 1-4cyls.dat 1 16 0 17.4 0 1 0 0 0 -3.65 0 0 0 1 stud4a.dat 0 BFC INVERTNEXT 1 16 0 17.4 0 -6 0 0 0 -2.2 0 0 0 6 4-4cyli.dat 0 BFC INVERTNEXT 1 16 0 15.2 0 -6 0 0 0 -0.6 0 0 0 6 4-4cyls.dat 1 16 0 17.4 0 -8 0 0 0 -0.8 0 0 0 8 4-4cyls.dat 1 16 0 8.6 0 6 0 0 -0.6 1 6 0 0 6 2-4edge.dat 1 16 0 8.6 0 6 0 0 -0.6 1 6 0 0 -6 2-4edge.dat 1 16 0 8.6 0 8 0 0 -0.8 1 8 0 0 8 2-4edge.dat 1 16 0 8.6 0 8 0 0 -0.8 1 8 0 0 -8 2-4edge.dat 0 BFC INVERTNEXT 1 16 0 14.6 0 0 0 6 0 -6 -0.6 -6 0 0 1-4cyls.dat 0 BFC INVERTNEXT 1 16 0 14.6 0 0 0 -6 0 -6 0.6 -6 0 0 1-4cyls.dat 0 BFC INVERTNEXT 1 16 0 14.6 0 0 0 6 0 -6 -0.6 6 0 0 1-4cyls.dat 0 BFC INVERTNEXT 1 16 0 14.6 0 0 0 -6 0 -6 0.6 6 0 0 1-4cyls.dat 1 16 0 16.6 0 0 0 8 0 -8 -0.8 -8 0 0 1-4cyls.dat 1 16 0 16.6 0 0 0 -8 0 -8 0.8 -8 0 0 1-4cyls.dat 1 16 0 16.6 0 0 0 8 0 -8 -0.8 8 0 0 1-4cyls.dat 1 16 0 16.6 0 0 0 -8 0 -8 0.8 8 0 0 1-4cyls.dat 4 16 40 24 -20 36 24 -16 36 24 16 40 24 20 4 16 36 24 -16 40 24 -20 20 24 -20 20 24 -16 4 16 36 24 16 20 24 16 20 24 20 40 24 20 3 16 20 24 -16 20 24 -20 20 32 -20 3 16 20 24 20 20 24 16 20 32 20 4 16 20 32 -20 20 32 20 20 24 16 20 24 -16 1 16 36 22.5 0 0 1 0 1.5 0 0 0 0 -16 rect2p.dat 3 16 20 6.6 0 20 22.6 -16 20 22.6 16 3 16 36 5 0 36 21 16 36 21 -16 1 16 20 23.3 0 0 -1 0 -0.7 0 0 0 0 -16 rect2p.dat 4 16 20 24 -16 20 22.6 -16 30 21.6 -16 36 24 -16 3 16 36 24 -16 30 21.6 -16 36 21 -16 4 16 20 22.6 16 20 24 16 36 24 16 30 21.6 16 3 16 36 21 16 30 21.6 16 36 24 16 1 16 28 24 0 0 0 8 0 1 0 16 0 0 recte3.dat 1 16 30 24 0 0 0 10 0 1 0 20 0 0 recte3.dat 2 24 20 24 -20 20 24 -16 2 24 20 24 20 20 24 16 2 24 20 24 -20 20 32 -20 2 24 20 24 20 20 32 20 1 16 40 22 0 0 -1 0 -2 0 0 0 0 -20 rect2p.dat 2 24 25.7574 20.2669 14.2426 27.7038 21.373 15.5434 2 24 25.7574 20.2669 14.2426 25.5663 20 13.9566 2 24 32.2962 20.9138 15.5434 30 21.6 16 2 24 30 21.6 16 27.7038 21.373 15.5434 2 24 32.2962 20.9138 15.5434 33.4855 20 14.7486 2 24 25.5663 20 13.9566 33.4855 20 14.7486 2 24 27.7038 20 15.5434 25.7574 20 14.2426 2 24 30 20 16 27.7038 20 15.5434 2 24 32.2962 20 15.5434 30 20 16 2 24 32.2962 20 15.5434 33.4855 20 14.7486 2 24 25.5663 20 13.9566 25.7574 20 14.2426 4 16 30 20 16 27.7038 20 15.5434 27.7038 21.373 15.5434 30 21.6 16 4 16 27.7038 20 15.5434 25.7574 20 14.2426 25.7574 20.2669 14.2426 27.7038 21.373 15.5434 4 16 32.2962 20 15.5434 30 20 16 30 21.6 16 32.2962 20.9138 15.5434 3 16 32.2962 20 15.5434 32.2962 20.9138 15.5434 33.4855 20 14.7486 3 16 25.7574 20 14.2426 25.5663 20 13.9566 25.7574 20.2669 14.2426 4 16 30 20 16 32.2962 20 15.5434 33.4855 20 14.7486 27.7038 20 15.5434 4 16 25.7574 20 14.2426 27.7038 20 15.5434 33.4855 20 14.7486 25.5663 20 13.9566 3 16 30 21.6 16 27.7038 21.373 15.5434 20 22.6 16 3 16 20 22.6 16 27.7038 21.373 15.5434 25.7574 20.2669 14.2426 3 16 20 22.6 16 25.7574 20.2669 14.2426 25.5663 20 13.9566 3 16 20 22.6 16 25.5663 20 13.9566 20 6.6 0 4 16 20 6.6 0 25.5663 20 13.9566 33.4855 20 14.7486 36 5 0 3 16 36 5 0 33.4855 20 14.7486 36 21 16 3 16 36 21 16 33.4855 20 14.7486 32.2962 20.9138 15.5434 3 16 36 21 16 32.2962 20.9138 15.5434 30 21.6 16 2 24 30 21.6 16 20 22.6 16 2 24 30 21.6 16 36 21 16 2 24 36 21 16 36 5 0 2 24 36 5 0 20 6.6 0 2 24 20 6.6 0 20 22.6 16 2 24 25.7574 20.2669 -14.2426 27.7038 21.373 -15.5434 2 24 25.7574 20.2669 -14.2426 25.5663 20 -13.9566 2 24 32.2962 20.9138 -15.5434 30 21.6 -16 2 24 30 21.6 -16 27.7038 21.373 -15.5434 2 24 32.2962 20.9138 -15.5434 33.4855 20 -14.7486 2 24 25.5663 20 -13.9566 33.4855 20 -14.7486 2 24 27.7038 20 -15.5434 25.7574 20 -14.2426 2 24 30 20 -16 27.7038 20 -15.5434 2 24 32.2962 20 -15.5434 30 20 -16 2 24 32.2962 20 -15.5434 33.4855 20 -14.7486 2 24 25.5663 20 -13.9566 25.7574 20 -14.2426 4 16 27.7038 21.373 -15.5434 27.7038 20 -15.5434 30 20 -16 30 21.6 -16 4 16 25.7574 20.2669 -14.2426 25.7574 20 -14.2426 27.7038 20 -15.5434 27.7038 21.373 -15.5434 4 16 30 21.6 -16 30 20 -16 32.2962 20 -15.5434 32.2962 20.9138 -15.5434 3 16 32.2962 20.9138 -15.5434 32.2962 20 -15.5434 33.4855 20 -14.7486 3 16 25.5663 20 -13.9566 25.7574 20 -14.2426 25.7574 20.2669 -14.2426 4 16 33.4855 20 -14.7486 32.2962 20 -15.5434 30 20 -16 27.7038 20 -15.5434 4 16 33.4855 20 -14.7486 27.7038 20 -15.5434 25.7574 20 -14.2426 25.5663 20 -13.9566 3 16 27.7038 21.373 -15.5434 30 21.6 -16 20 22.6 -16 3 16 27.7038 21.373 -15.5434 20 22.6 -16 25.7574 20.2669 -14.2426 3 16 25.7574 20.2669 -14.2426 20 22.6 -16 25.5663 20 -13.9566 3 16 25.5663 20 -13.9566 20 22.6 -16 20 6.6 0 4 16 20 6.6 0 36 5 0 33.4855 20 -14.7486 25.5663 20 -13.9566 3 16 33.4855 20 -14.7486 36 5 0 36 21 -16 3 16 33.4855 20 -14.7486 36 21 -16 32.2962 20.9138 -15.5434 3 16 32.2962 20.9138 -15.5434 36 21 -16 30 21.6 -16 2 24 30 21.6 -16 20 22.6 -16 2 24 30 21.6 -16 36 21 -16 2 24 36 21 -16 36 5 0 2 24 20 6.6 0 20 22.6 -16 5 24 25.7574 20 -14.2426 25.7574 20.2669 -14.2426 25.5663 20 -13.9566 27.7038 20 -15.5434 5 24 27.7038 20 -15.5434 27.7038 21.373 -15.5434 30 20 -16 25.7574 20.2669 -14.2426 5 24 30 21.6 -16 30 20 -16 32.2962 20 -15.5434 27.7038 21.373 -15.5434 5 24 32.2962 20.9138 -15.5434 32.2962 20 -15.5434 33.4855 20 -14.7486 30 21.6 -16 5 24 32.2962 20 15.5434 32.2962 20.9138 15.5434 33.4855 20 14.7486 30 20 16 5 24 27.7038 20 15.5434 27.7038 21.373 15.5434 30 21.6 16 25.7574 20 14.2426 5 24 25.7574 20.2669 14.2426 25.7574 20 14.2426 27.7038 21.373 15.5434 25.5663 20 13.9566 5 24 30 21.6 16 30 20 16 32.2962 20.9138 15.5434 27.7038 20 15.5434 0 // Raised 2-4 Stud 4 0 BFC INVERTNEXT 1 16 20 14.6 0 0 0 6 0 -2 0 6 0 0 2-4cyli.dat 0 BFC INVERTNEXT 1 16 20 12.6 0 -6 0 0 0 -0.6 0 0 0 6 1-4cyls2.dat 0 BFC INVERTNEXT 1 16 20 12.6 0 -6 0 0 0 -0.6 0 0 0 -6 1-4cyls2.dat 1 16 20 14.6 0 -8 0 0 0 -0.8 0 0 0 8 1-4cyls2.dat 1 16 20 14.6 0 -8 0 0 0 -0.8 0 0 0 -8 1-4cyls2.dat 1 16 20 14.6 0 0 0 1 0 -2.35 0 -1 0 0 2-4stud4a.dat 1 16 20 6.6 0 6 0 0 -0.6 1 6 0 0 6 1-4edge.dat 1 16 20 6.6 0 6 0 0 -0.6 1 6 0 0 -6 1-4edge.dat 1 16 20 6.6 0 8 0 0 -0.8 1 8 0 0 8 1-4edge.dat 1 16 20 6.6 0 8 0 0 -0.8 1 8 0 0 -8 1-4edge.dat 0 BFC INVERTNEXT 1 16 20 12.6 0 0 0 6 0 -6 -0.6 -6 0 0 1-4cyls.dat 0 BFC INVERTNEXT 1 16 20 12.6 0 0 0 6 0 -6 -0.6 6 0 0 1-4cyls.dat 1 16 20 14.6 0 0 0 8 0 -8 -0.8 -8 0 0 1-4cyls.dat 1 16 20 14.6 0 0 0 8 0 -8 -0.8 8 0 0 1-4cyls.dat 2 24 20 14.6 -8 20 24 -8 2 24 20 12.6 -6 20 24 -6 2 24 20 24 -8 20 24 -6 2 24 20 24 6 20 24 8 2 24 20 24 6 20 12.6 6 2 24 20 14.6 8 20 24 8 0 // Outside 3 16 40 20 20 40 0 0 40 20 -20 3 16 -40 28 20 -40 28 -20 -40 8 0 1 16 0 24 0 -40 0 0 4 -10 -10 0 -10 10 box2-5.dat 1 16 -40 30 0 0 1 0 -2 0 0 0 0 20 rect2p.dat 3 16 40 24 -20 40 20 -20 20 24 -20 3 16 20 32 -20 20 24 -20 -40 32 -20 4 16 -40 28 -20 -40 32 -20 20 24 -20 40 20 -20 4 16 -40 28 20 40 20 20 20 24 20 -40 32 20 3 16 -40 32 20 20 24 20 20 32 20 3 16 40 20 20 40 24 20 20 24 20
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Gerald Lasser [GeraldLasser]
Part Library Admin
initially submitted the part.
2022-03-22 08:45:02
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2022-03-22 19:40:01
There's a big overlap inside middle bottom tube.
Mark Kennedy [mkennedy]
Part Reviewer
made the following comment.
2022-04-03 15:45:01
Possible duplicate surface in middle stud and two missing edge lines.
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Hold.
2022-04-19 20:30:01
Misses two edges:
2 24 20 16 -20 20 16 -16
2 24 20 16 16 20 16 20
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2022-04-19 21:40:02
corrected overlaps, added edge lines

Existing certification-votes were deleted.
Max Martin Richter [MMR1988]
Senior Part Reviewer
made the following comment.
2022-04-20 18:00:01
As you have splitted this quad on the other side I suggest to do it here as well:

4 16 20 16 -16 20 14.6 -16 36 13 -16 36 16 -16
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2022-04-24 17:05:01
split the quad

Existing certification-votes were deleted.
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Certify.
2022-04-25 19:40:01
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2022-05-07 16:35:01
* Conds missing:

5 24 25.7574 12 -14.2426 25.7574 12.2669 -14.2426 25.5663 12 -13.9566 27.7038 12 -15.5434
5 24 27.7038 12 -15.5434 27.7038 13.373 -15.5434 30 12 -16 25.7574 12.2669 -14.2426
5 24 30 13.6 -16 30 12 -16 32.2962 12 -15.5434 27.7038 13.373 -15.5434
5 24 32.2962 12.9138 -15.5434 32.2962 12 -15.5434 33.4855 12 -14.7486 30 13.6 -16
5 24 32.2962 12 15.5434 32.2962 12.9138 15.5434 33.4855 12 14.7486 30 12 16
5 24 27.7038 12 15.5434 27.7038 13.373 15.5434 30 13.6 16 25.7574 12 14.2426
5 24 25.7574 12.2669 14.2426 25.7574 12 14.2426 27.7038 13.373 15.5434 25.5663 12 13.9566
5 24 30 13.6 16 30 12 16 32.2962 12.9138 15.5434 27.7038 12 15.5434

* More information here:

https://www.facebook.com/NewElementary/posts/4807415679371288
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Certify.
2022-05-10 19:00:01
Yes, but they are optional.
Gerald Lasser [GeraldLasser]
Part Library Admin
submitted a new version of the part.
2022-07-10 12:45:01
added missing conds

Existing certification-votes were deleted.
Philippe Hurbain [Philo]
Senior Part Reviewer
posted a vote of Certify.
2022-10-08 16:35:01
Vincent Messenet [Cheenzo]
Part Header Editor
posted a vote of Certify.
2022-10-14 06:40:01
Mark Kennedy [mkennedy]
Part Reviewer
made the following comment.
2022-10-14 16:00:01
Seems to be missing two edge lines near the half stud. Maybe use 2-4stud4a.dat? Also duplicated surfaces in the middle stud.
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2022-10-14 16:55:02
Confirmed.
Mark Kennedy [mkennedy]
Part Reviewer
made the following comment.
2022-10-14 23:15:01
You could add the following:
1 16 20 6.6 0 0 0 1 0 -2.35 0 -1 0 0 2-4stud4a.dat
2 16 20 16 -20 20 16 -16
2 16 20 16 20 20 16 16

to replace lines 177 to 183
Vincent Messenet [Cheenzo]
Part Header Editor
made the following comment.
2022-10-15 08:25:01
confirmed, removing my cert vote
Mark Kennedy [mkennedy]
Part Reviewer
made the following comment.
2022-10-16 07:10:01
Lines 51 and 68 seem to be the cause of the duplicate surfaces in the middle stud.
Mark Kennedy [mkennedy]
Part Reviewer
submitted a new version of the part.
2022-10-24 20:05:01
Fixed mentioned errors, hope this is OK.

Existing certification-votes were deleted.
Max Martin Richter [MMR1988]
Senior Part Reviewer
made the following comment.
2023-01-01 20:30:01
Please split this quad as it is done on the opposite site to avoid a t-jucntion:
4 16 20 16 -16 20 14.6 -16 36 13 -16 36 16 -16
Mark Kennedy [mkennedy]
Part Reviewer
submitted a new version of the part.
2023-01-08 21:30:02
Changes made as suggested.

For the orientation of the part should it be adjusted by 8 so it aligns with the topmost point?

Existing certification-votes were deleted.
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Hold.
2023-01-10 20:55:01
You are right, that the orientation is odd, but in my eyes the origin should be at the bottom of the part.
Mark Kennedy [mkennedy]
Part Reviewer
submitted a new version of the part.
2023-01-11 09:05:02
Moved origin to top of part as that's where it is in part 3041.

Existing certification-votes were deleted.
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Certify.
2023-12-26 23:11:07
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Certify.
2024-06-01 13:15:59
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Certify.
2024-06-15 12:33:06
I think this is the best choise of the origin.
Same as all the other Slope Brick 45 Double
1 25 -265 0 0 1 0 0 0 1 0 0 0 1 3041.dat
1 25 -180 0 0 1 0 0 0 1 0 0 0 1 3042.dat
1 25 -120 0 0 1 0 0 0 1 0 0 0 1 3043.dat
1 25 -80 0 0 1 0 0 0 1 0 0 0 1 3044b.dat
1 25 0 0 0 1 0 0 0 1 0 0 0 1 80545.dat
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2024-06-15 13:02:42
Mark Kennedy [mkennedy]
Part Reviewer
made the following comment.
2024-06-16 16:25:27
For the name I'm guessing the 'wedge' part comes it being sloped? Would 'angled' be more appropriate since the slopes are applied to two different axis?
Orion Pobursky [OrionP]
Part Library Admin
2024-06-30 00:13:30
Release 2024-05
