File Detail parts/80563.dat

Official File parts/80563.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

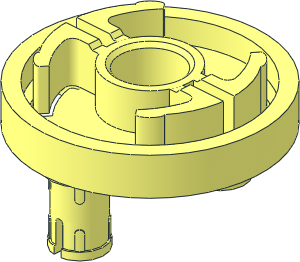

Technic Rotation Joint Socket with Two Friction Pins

File Header:

0 Technic Rotation Joint Socket with Two Friction Pins
0 Name: 80563.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2022-06-07 [GeraldLasser] Derieved from Part 44224 by Guy Vivan
0 !HISTORY 2023-10-25 [MagFors] used new subfile
0 !HISTORY 2024-01-29 [OrionP] Official Update 2024-01
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\44224s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\44224s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\44224s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\44224s01.dat

1 16 0 10 20 0 0 -1 0 -1 0 1 0 0 confric.dat
1 16 0 10 20 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 0 10 20 4 0 0 0 1 0 0 0 4 4-4edge.dat

1 16 0 10 -20 0 0 -1 0 -1 0 1 0 0 confric.dat
1 16 0 10 -20 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 0 10 -20 4 0 0 0 1 0 0 0 4 4-4edge.dat

1 16 0 0 0 21.2132 0 21.2132 0 10 0 21.2132 0 -21.2132 48\4-4cylo.dat
1 16 0 0 0 1.41421 0 1.41421 0 1 0 1.41421 0 -1.41421 48\4-4ring13.dat
1 16 0 0 0 1.41421 0 1.41421 0 1 0 1.41421 0 -1.41421 48\4-4ring14.dat
0 BFC INVERTNEXT
1 16 0 0 0 18.3848 0 18.3848 0 6 0 18.3848 0 -18.3848 48\4-4cylo.dat
1 16 0 -4 0 9 0 0 0 1 0 0 0 -9 48\4-4edge.dat
0 BFC INVERTNEXT
1 16 0 -4 0 1 0 0 0 1 0 0 0 -1 48\4-4con8.dat
1 16 0 -4 0 1 0 0 0 1 0 0 0 -1 48\4-4ring9.dat
1 16 0 -4 0 1 0 0 0 1 0 0 0 -1 48\4-4ring10.dat

1 16 0 -4 0 0 0 11 0 1 0 -11 0 0 48\1-6edge.dat
1 16 0 -4 0 0 0 -11 0 1 0 -11 0 0 48\1-6edge.dat
1 16 0 -4 0 0 0 11 0 1 0 11 0 0 48\1-6edge.dat
1 16 0 -4 0 0 0 -11 0 1 0 11 0 0 48\1-6edge.dat
2 24 9.526 -4 5.5 10.02 -4 4.5
2 24 -9.526 -4 5.5 -10.02 -4 4.5
2 24 -9.526 -4 -5.5 -10.02 -4 -4.5
2 24 9.526 -4 -5.5 10.02 -4 -4.5

2 24 10.892 -4 1.5 11 -4 0
2 24 -10.892 -4 1.5 -11 -4 0
2 24 -10.892 -4 -1.5 -11 -4 0
2 24 10.892 -4 -1.5 11 -4 0
1 16 0 -4 0 11 0 0 0 10 0 0 0 -11 48\4-4cyli.dat
1 16 0 6 0 11 0 0 0 1 0 0 0 -11 48\4-4edge.dat
1 16 0 6 0 1 0 0 0 -1 0 0 0 -1 48\4-4ring8.dat
0 BFC INVERTNEXT
1 16 0 -3 0 8 0 0 0 9 0 0 0 -8 48\4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 6 0 9 0 0 0 4 0 0 0 -9 48\4-4cylo.dat
1 16 0 10 0 9 0 0 0 -1 0 0 0 -9 48\4-4ndis.dat
1 16 0 6 0 11 0 0 0 1 0 0 0 -11 48\4-4ndis.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2022-06-07 08:00:01

A common Subfile for the centre with 44224 might make sense

Philippe Hurbain [Philo]

made the following comment.

2022-06-07 09:00:01

The complementary condlines at the tip of internal arms are missing.

Mark Kennedy [mkennedy]

made the following comment.

2022-06-23 06:20:01

You may want to divide into quarters and use a subpart.

Max Martin Richter [MMR1988]

posted a vote of Hold.

2022-11-16 22:15:01

Confirmed missing conds.

I like the idea of a common subfile, maybe a quarter subfile.
Is it neccessary to have the inner hole in high-res?

Gerald Lasser [GeraldLasser]

made the following comment.

2023-02-23 09:46:03

@Max, as I am going through the prim-ref, I would even go that far to say that (a quarter of) this kind of connection would be a candidate for a prim.
Also the counterpart.

Magnus Forsberg [MagFors]

made the following comment.

2023-07-25 13:12:46

Maybe something like this?
https://library.ldraw.org/tracker/32309

And yes, I'm reworking 44224.

Magnus Forsberg [MagFors]

submitted a new version of the part.

2023-10-25 21:17:11

Used new subfile.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2023-10-26 05:23:54

Max Martin Richter [MMR1988]
