File Detail parts/87556.dat

Unofficial File parts/87556.dat

Part Attributes:

File Header:

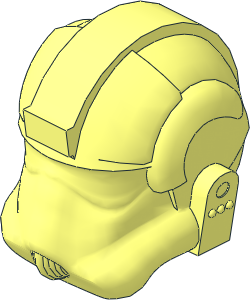

0 Minifig Helmet Stormtrooper Type 2
0 Name: 87556.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Headwear

0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2022-11-06 [ejboer] File preparation for LDraw Parts Tracker

Show contents

1 16 0 -4 0 1 0 0 0 -1 0 0 0 -1 stud16.dat
1 16 0 -4 0 8 0 0 0 -1 0 0 0 8 4-4disc.dat
0 BFC INVERTNEXT
1 16 0 0 0 0 0 8 0 -6.4 0 8 0 0 t04o6250.dat
0 BFC INVERTNEXT
1 16 0 0 0 -8 0 0 0 -6.4 0 0 0 8 t04o6250.dat
0 BFC INVERTNEXT
1 16 0 0 0 0 0 -8 0 -6.4 0 -8 0 0 t04o6250.dat
0 BFC INVERTNEXT
1 16 0 0 0 8 0 0 0 -6.4 0 0 0 -8 t04o6250.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\87556s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\87556s01.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\87556s02.dat

5 24 0 3.579 -20.658 0 3.812 -20.294 1.625 3.574 -20.531 -1.625 3.574 -20.531
5 24 0 27.835 -13 0 0 -13 -4.9752 0 -12.0104 4.9752 0 -12.0104
5 24 0 7.761 -20.056 0 8.189 -20.125 .832 8.193 -20.052 -.832 8.193 -20.052
5 24 0 18.086 -23.406 0 19.045 -23.612 2 19.28 -23.158 -2 19.28 -23.158
5 24 0 1.584 -19.747 0 3.579 -20.658 -1.625 3.574 -20.531 1.625 3.574 -20.531
5 24 0 9.088 -20.541 0 9.554 -20.787 -2.042 9.723 -20.37 2.042 9.723 -20.37
5 24 0 28.462 -15.065 0 27.835 -13 1.625 28.029 -13.51 -1.625 28.029 -13.51
5 24 0 10.028 -21.017 0 11.701 -21.514 -2.043 10.457 -20.711 2.043 10.457 -20.711
5 24 0 8.629 -20.281 0 9.088 -20.541 2.042 9.723 -20.37 -2.042 9.723 -20.37
5 24 0 19.045 -23.612 0 20.394 -23.636 -1.022 20.532 -23.461 1.022 20.532 -23.461
5 24 0 3.812 -20.294 0 4.082 -19.963 1.625 4.046 -19.841 -1.625 4.046 -19.841
5 24 0 16.37 -22.949 0 18.086 -23.406 -2.028 18.51 -22.988 2.028 18.51 -22.988
5 24 0 8.189 -20.125 0 8.629 -20.281 .816 8.697 -20.249 -.816 8.697 -20.249
5 24 0 28.353 -17.392 0 28.462 -15.065 -1.625 28.461 -16.378 1.625 28.461 -16.378
5 24 0 12.194 13 0 12.043 17.31 -2.5 11.999 17.331 2.5 11.999 17.331
5 24 0 7.022 -20.188 0 7.761 -20.056 .817 7.091 -20.093 -.817 7.091 -20.093
5 24 0 4.082 -19.963 0 4.747 -19.469 -1.625 4.046 -19.841 1.625 4.046 -19.841
5 24 0 0 13 0 12.194 13 4.9751 12.240624 12.0107 -4.9751 12.240624 12.0107
5 24 0 9.554 -20.787 0 10.028 -21.017 -2.042 9.723 -20.37 2.042 9.723 -20.37

Status:

Needs More Votes (CN)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/87556s01.dat (Needs More Votes)
parts/s/87556s02.dat (Needs More Votes)

Current Votes:

User	Vote
fwcain	Certify

Official parents and subparts

Part Events:

Evert-Jan Boer [ejboer]

initially submitted the part.

2022-11-06 14:25:02

Open for suggestions on this part, regarding areas, subfiles etc.
Areas for patterns (I hope I got them all) in a single subfile, in most cases the pattern could be mirrored, but not everywhere.

Also replaced some details on the side with prims, but could not get a totally flat result.

Franklin W. Cain [fwcain]

posted a vote of Certify.

2022-11-07 01:35:01

[PTadmin]

edited the part header.

2022-12-21 01:05:01
