Official File parts/87775.dat
Part Attributes:

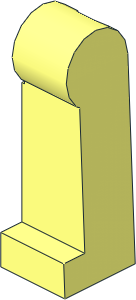

Minifig Leg Left Long with Closed Hole
File Header:
0 Minifig Leg Left Long with Closed Hole 0 Name: 87775.dat 0 Author: Magnus Forsberg [MagFors] 0 !LDRAW_ORG Part UPDATE 2023-03 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 !HELP Move down 12 units to align with hips 0 !HELP Move at z=1.25 relative to stud grid 0 BFC CERTIFY CCW 0 !KEYWORDS Jessie, Toy Story, Woody 0 !HISTORY 2019-06-07 [MagFors] Reworked with 3817b as reference 0 !HISTORY 2023-02-11 [MagFors] Reworked with 3817c as reference 0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\87775s01.dat 0 // Rounded Front 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\87775s03.dat 0 // Flat Front 4 16 1.25 7.65 -5.25 1.25001 40 -5.25 19.1476 40 -5.25 2 7.65 -5.25 4 16 19.1476 40 -5.25 17.6856 6.8134 -5.25 2 6.8134 -5.25 2 7.65 -5.25 0 // Foot Top 4 16 1.25001 40 -5.25 1.25001 40 -11.25 19.1476 40 -11.25 19.1476 40 -5.25 0 // Foot Front 4 16 19.5 48 -11.25 19.1476 40 -11.25 1.25001 40 -11.25 1.25 48 -11.25
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Steffen [Steffen]
Senior Part Reviewer
initially submitted the part.
2018-01-02 03:10:01
Steffen [Steffen]
Senior Part Reviewer
submitted a new version of the part.
2018-01-02 03:45:01
removed surfaces from subfile for patterning preparation
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2018-01-02 09:05:01
This part is 87775
Steffen [Steffen]
Senior Part Reviewer
made the following comment.
2018-01-02 17:55:00
please renumber as neccessary
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2018-01-24 21:50:01
These legs suffer from the same error as described here:
https://forums.ldraw.org/thread-18102-post-18102.html#pid18102
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2019-06-07 13:15:02
I'm reworking this, to correct the position of the foot.
[PTadmin]
Part Author
renamed the part.
2019-06-07 13:42:20
"parts/u9247.dat" to "parts/87775.dat."
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2019-06-07 16:20:01

Could someone verify the length of this leg?
I think it is 4 ldu too long.
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2019-06-07 17:00:02
I don't have the part, but I agree with you (in fact, I see it 5 ldu too long at bottom). Measurement done from an image extracted from this video: https://youtu.be/dDxhzZmkzCo?t=80
Also: top of leg seems too wide, if you look closely the videos, the leg is significantly narrower than hips (I'd say 1 ldu)
Steffen [Steffen]
Senior Part Reviewer
made the following comment.
2019-06-07 20:30:01
yikes. sorry for the height error.
I don't know how it slipped in last year.
I'm happy for the help to get it correct.
Magnus Forsberg [MagFors]
Part Library Admin
submitted a new version of the part.
2019-06-08 14:50:02
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2019-06-08 15:15:02

I decided to place the bottom surface of the foot 4 ldu below the lower stud edge. That is the only logical position.
Hip+leg correspond to a 2x3 plate, as the normal hip+leg correspond to a 2x2 plate.

I hope Steffen don't mind me replacing him as author of the subfiles...

I cant find any picture showing it to be printed on the inside of the leg.
Steffen [Steffen]
Senior Part Reviewer
made the following comment.
2019-06-08 15:25:01
you can replace me as author in this file as well.
your overhaul is so big that I do not claim the authorship
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2019-06-11 14:25:02
You should take authorship
Magnus Forsberg [MagFors]
Part Library Admin
submitted a new version of the part.
2019-06-11 19:25:01
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2019-07-12 06:50:02
I measured the top of the leg because it looked a bit too narrow compared to the real part, and it is 0.5 LDU wider than what it is now.

It is 6 mm for the real part and 14,5 LDU (5,8mm) for the digital part.

So not really much, would it be worth the effort?
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2019-07-12 16:05:01
Absolutely doable, but could you give me a bit more info.?
Do you mean this:
0 !LPE DISTANCE 24 2 -8.75 0 17 -8.75 0
Gerald Lasser [GeraldLasser]
Part Library Admin
made the following comment.
2019-07-12 17:20:02
Exactly, that's it.

I've done all but one pattern, but that would not be too much effort to change them, so I wait with the upload.
Magnus Forsberg [MagFors]
Part Library Admin
submitted a new version of the part.
2019-07-13 14:45:02
Thanks Gerald
Corrected width of the top of the leg, as suggested.

Existing certification-votes were deleted.
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2020-10-27 15:45:01
All of the printed legs and assemblies are done. Could I please have some reviews on the uncolored leg and subfiles?
Max Martin Richter [MMR1988]
Senior Part Reviewer
posted a vote of Certify.
2021-09-17 20:50:01
Vincent Messenet [Cheenzo]
Part Header Editor
posted a vote of Certify.
2022-02-03 13:30:01
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2022-12-19 23:35:01
Magnus Forsberg [MagFors]
Part Library Admin
submitted a new version of the part.
2023-02-12 09:33:59
Reworked the foot position.
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2023-02-13 14:26:28
* Should contain HELP information for positioning:

0 !HELP Move down 12 units to align with hips
0 !HELP Move at z=1.25 relative to stud grid
0 !HELP 1 16 0 0 1.25 1 0 0 0 1 0 0 0 1 87775.dat
0 !HELP 1 16 0 48 0 1 0 0 0 1 0 0 0 1 stug-1x2.dat
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2023-02-23 16:48:25
Collision with the hip in a seated position. I'll have to change this again...
Magnus Forsberg [MagFors]
Part Library Admin
submitted a new version of the part.
2023-02-25 16:11:01
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2023-02-26 09:20:46
Magnus Forsberg [MagFors]
Part Library Admin
edited the part header.
2023-02-27 22:16:50
Vincent Messenet [Cheenzo]
Part Header Editor
posted a vote of Certify.
2023-06-20 06:51:20
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2023-06-22 01:49:11
Orion Pobursky [OrionP]
Part Library Admin
2023-06-24 02:37:25
Release 2023-03
