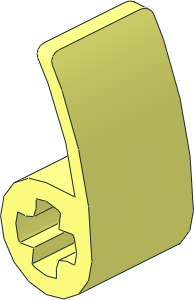

0 Technic Panel Curved 1 x 2 x 1
0 Name: 89679.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2022-07-24 [GeraldLasser] Adapted to use subfile
0 !HISTORY 2023-01-04 [jb70] Replaced rect2p by quads and moved lines to subfile
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\89679s01.dat
1 16 0 0 10 3 0 0 0 0 3 0 -1 0 1-8ring2.dat
1 16 0 0 -10 3 0 0 0 0 3 0 1 0 1-8ring2.dat
1 16 0 0 10 9 0 0 0 0 9 0 -20 0 1-8cylo.dat
4 16 3.121 -25.096 -10 3.121 -25.096 10 1.228 -28.351 10 1.228 -28.351 -10
4 16 6.365 -16.971 10 3.121 -25.096 10 3.121 -25.096 -10 6.365 -16.971 -10
4 16 8.336 -8.558 10 6.365 -16.971 10 6.365 -16.971 -10 8.336 -8.558 -10
4 16 9 0 10 8.336 -8.558 10 8.336 -8.558 -10 9 0 -10
I think, there should be added 2 erings to avoid gaps around the axle hole when using primitive substitution:
1 16 0 0 10 0 0 6 6 0 0 0 -1 0 4-4ering.dat
1 16 0 0 -10 0 0 6 6 0 0 0 1 0 4-4ering.dat
And I submitted a subfile (s\89679s01.dat) without side, since there is at least one printed part of this one in 42143 Ferrari Daytona SP3 (89679pt0.dat) where I used the subfile.
I already added the erings to the subfile. I needed to reduce the 3-4cyclo and 3-4ring2 primitives to 5-8 to get free space to include the printed pattern.
Please review the subfile and think about to reuse the subfile in this part as well.
4 13 8.3151 3.4443 10 6.3639 6.3639 10 4.2426 4.2426 10 5.543 2.296 10
3 13 8.3151 3.4443 10 5.543 2.296 10 5.602 2 10
4 13 8.3151 3.4443 10 5.602 2 10 6 0 10 9 0 10
4 13 5.543 2.296 -10 4.2426 4.2426 -10 6.3639 6.3639 -10 8.3151 3.4443 -10
3 13 5.543 2.296 -10 8.3151 3.4443 -10 5.602 2 -10
4 13 6 0 -10 5.602 2 -10 8.3151 3.4443 -10 9 0 -10
plus some lines
from the s01 subfile, this would
A) help draw patterns as you require them
B) also help to add a fine curve in the plain part (add a 1-8 chrd etc)
Now the main file could be reduced to:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\89679s01.dat
1 16 0 0 -10 3 0 0 0 0 3 0 1 0 1-8ring2.dat
1 16 0 0 10 3 0 0 0 0 3 0 -1 0 1-8ring2.dat
1 16 0 0 10 9 0 0 0 0 9 0 -20 0 1-8cylo.dat
1 16 8.668 -4.279 0 -.332 0 0 -4.279 1 0 0 0 -10 rect2p.dat
1 16 7.3505 -12.7645 0 .9855 0 0 4.2065 1 0 0 0 10 rect2p.dat
1 16 4.743 -21.0335 0 -1.622 0 0 -4.0625 1 0 0 0 -10 rect2p.dat
1 16 2.1745 -26.7235 0 .9465 0 0 1.6275 1 0 0 0 10 rect2p.dat
btw,
is there a way to find subfiles that are used in a patterned part, but is not used in the unpatterned version of the part?
IMHO it's bad practice to derive a new subfile from an existing part and then not update the file it came from.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
history:
0 !HISTORY 2022-07-24 [GeraldLasser] Adapted to use subfile
to
0 !HISTORY 2022-07-24 [GeraldLasser] Adapted to use subfile
0 !HISTORY 2023-01-04 [jb70] Replaced rect2p by quads and moved lines to subfile
Add edits by jb70
