File Detail parts/89832.dat

Official File parts/89832.dat

Part Attributes:

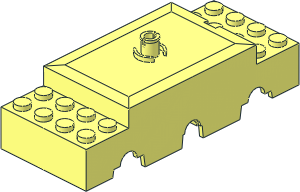

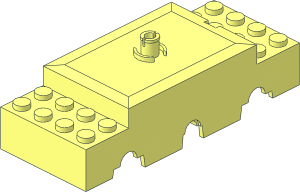

~Electric Power Functions Train Motor - Top

File Header:

0 ~Electric Power Functions Train Motor - Top
0 Name: 89832.dat
0 Author: Santeri Piippo [arezey]
0 !LDRAW_ORG Part UPDATE 2023-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05

Show contents

0 // Needs Work: Interior details missing

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\89832s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\89832s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\89832s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\89832s01.dat
1 16 -28 34 -40 2.5 0 0 0 -1 0 0 0 2.5 4-4ring1.dat
1 16 28 34 40 2.5 0 0 0 -1 0 0 0 2.5 4-4ring1.dat
0 BFC INVERTNEXT
1 16 28 4.5 40 2.5 0 0 0 29.5 0 0 0 -2.5 4-4cylo.dat
1 16 28 4.5 40 5 0 0 0 29.5 0 0 0 -5 4-4cylo.dat
1 16 -28 4.5 -40 5 0 0 0 29.5 0 0 0 -5 4-4cylo.dat
0 BFC INVERTNEXT
1 16 -28 4.5 -40 2.5 0 0 0 29.5 0 0 0 -2.5 4-4cylo.dat
1 16 -20 16 -80 0 0 -1 0 1 0 1 0 0 stug-2x2.dat
1 16 -20 16 80 0 0 -1 0 1 0 1 0 0 stug-2x2.dat
1 16 20 16 -80 0 0 -1 0 1 0 1 0 0 stug-2x2.dat
1 16 20 16 80 0 0 -1 0 1 0 1 0 0 stug-2x2.dat
1 16 0 -4 0 -6 0 0 0 4 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 0 0 0 0 4 0 -4 0 -4 0 0 4-4cyli.dat
1 16 0 -4 0 0 0 1 0 1 0 1 0 0 connect4.dat
1 16 0 0 0 0 0 6 0 1 0 -6 0 0 4-4edge.dat
1 16 0 0 0 0 0 4 0 1 0 -4 0 0 4-4edge.dat
4 16 40 1 60 30 0 50 30 0 -50 40 1 -60
2 24 30 0 50 -30 0 50
2 24 30 0 50 40 1 60
2 24 30 0 -50 30 0 50
4 16 -30 0 50 -30 0 -50 30 0 -50 30 0 50
4 16 40 1 -60 30 0 -50 -30 0 -50 -40 1 -60
2 24 -30 0 50 -30 0 -50
2 24 -30 0 -50 -40 1 -60
2 24 -30 0 -50 30 0 -50
4 16 -40 1 -60 -30 0 -50 -30 0 50 -40 1 60
2 24 -40 1 60 -30 0 50
2 24 30 0 -50 40 1 -60
2 24 4 12 60 -4 12 60
2 24 4 12 60 5.5 10 60
2 24 5.5 10 60 5.5 1 60
2 24 -4 12 60 -5.5 10 60
2 24 -5.5 10 60 -5.5 1 60
4 16 40 1 -60 -40 1 -60 -40 16 -60 40 16 -60
2 24 40 1 -60 -40 1 -60
4 16 -36.5 15 -55 -36.5 3.5 -55 36.5 3.5 -55 36.5 15 -55
2 24 5.5 3.5 55 5.5 7.5 55
2 24 -5.5 7.5 55 -5.5 3.5 55
4 16 5.5 3.5 55 5.5 7.5 55 36.5 15 55 36.5 3.5 55
4 16 5.5 7.5 55 -5.5 7.5 55 -36.5 15 55 36.5 15 55
4 16 -5.5 3.5 55 -36.5 3.5 55 -36.5 15 55 -5.5 7.5 55
2 24 5.5 1 60 5.5 0.6 56
2 24 -5.5 0.6 56 -5.5 1 60
4 16 -40 1 60 -30 0 50 -5.5 0.6 56 -5.5 1 60
4 16 5.5 1 60 5.5 0.6 56 30 0 50 40 1 60
4 16 5.5 0.6 56 -5.5 0.6 56 -30 0 50 30 0 50
2 24 -40 1 60 -5.5 1 60
2 24 5.5 1 60 40 1 60
4 16 40 1 60 40 16 60 5.5 10 60 5.5 1 60
3 16 5.5 10 60 40 16 60 4 12 60
4 16 4 12 60 40 16 60 -40 16 60 -4 12 60
3 16 -5.5 10 60 -4 12 60 -40 16 60
4 16 -5.5 1 60 -5.5 10 60 -40 16 60 -40 1 60
0 BFC INVERTNEXT
1 16 5.5 7.5 60 0 -11 0 2.5 0 0 0 0 -2.5 1-4cylo.dat
1 16 5.5 7.5 60 0 1 0 2.5 0 0 0 0 -2.5 1-4chrd.dat
4 16 5.5 10 60 4 12 60 -4 12 60 -5.5 10 60
2 24 5.5 10 60 -5.5 10 60
1 16 -5.5 7.5 60 0 -1 0 2.5 0 0 0 0 -2.5 1-4chrd.dat
2 24 5.5 7.5 55 5.5 7.5 57.5
2 24 -5.5 7.5 55 -5.5 7.5 57.5
4 16 5.5 7.5 55 5.5 7.5 57.5 -5.5 7.5 57.5 -5.5 7.5 55
2 24 5.5 7.5 57.5 -5.5 7.5 57.5
2 24 5.5 7.5 55 -5.5 7.5 55
2 24 -5.5 3.5 55 -5.5 0.6 56
2 24 5.5 3.5 55 5.5 0.6 56
4 16 -5.5 3.5 55 -5.5 0.6 56 5.5 0.6 56 5.5 3.5 55
2 24 -5.5 0.6 56 5.5 0.6 56
4 16 5.5 7.5 57.5 5.5 7.5 55 5.5 3.5 55 5.5 0.6 56
4 16 5.5 1 60 5.5 10 60 5.5 7.5 57.5 5.5 0.6 56
4 16 -5.5 0.6 56 -5.5 7.5 57.5 -5.5 10 60 -5.5 1 60
4 16 -5.5 0.6 56 -5.5 3.5 55 -5.5 7.5 55 -5.5 7.5 57.5

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Santeri Piippo [arezey]

initially submitted the part.

2018-08-12 14:05:02

Santeri Piippo [arezey]

submitted a new version of the part.

2018-08-12 14:15:01

Rotated studs

Santeri Piippo [arezey]

submitted a new version of the part.

2018-09-29 10:55:01

Fixed gaps

Ulrich Röder [UR]

posted a vote of Certify.

2020-09-22 14:35:01

Max Martin Richter [MMR1988]

posted a vote of Hold.

2021-09-26 09:05:01

Scaled 2D-Prims:

Line 15: Flat subfile is scaled in flat direction 1 16 -28 34 -40 2.5 0 0 0 -2.5 0 0 0 2.5 4-4ring1.dat
Line 16: Flat subfile is scaled in flat direction 1 16 28 34 40 2.5 0 0 0 -2.5 0 0 0 2.5 4-4ring1.dat
Line 32: Flat subfile is scaled in flat direction 1 16 0 0 0 0 0 4 0 4 0 -4 0 0 4-4edge.dat
Line 72: Flat subfile is scaled in flat direction 1 16 5.5 7.5 60 0 11 0 2.5 0 0 0 0 -2.5 1-4chrd.dat
Line 75: Flat subfile is scaled in flat direction 1 16 -5.5 7.5 60 0 -11 0 2.5 0 0 0 0 -2.5 1-4chrd.dat

Max Martin Richter [MMR1988]

submitted a new version of the part.

2022-01-02 21:45:01

Forgot the upgrade to novote. Anyway I fixed these issues now.

Existing certification-votes were deleted.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2023-07-31 13:31:09

I wonder about these edges though:

2 4 4 12 60 -4 12 60
2 4 4 12 60 5.5 10 60
2 4 -4 12 60 -5.5 10 60

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2023-08-01 01:26:58

Orion Pobursky [OrionP]
