Official File parts/92011.dat
Part Attributes:
File Header:

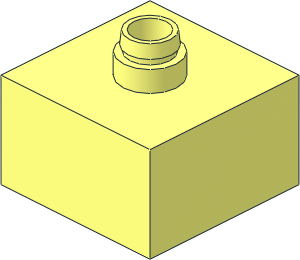

0 Duplo Brick 2 x 2 with Top Snapping Pin
0 Name: 92011.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Brick
0 !KEYWORDS turntable
0 !HISTORY 2020-12-12 {LEGO/Unity Microgame} Original part shape
0 !HISTORY 2021-01-19 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 dsnappin.dat
1 16 0 4 0 1 0 0 0 -10 0 0 0 1 stud8.dat
0 BFC INVERTNEXT
1 16 0 48 0 36 0 0 0 -44 0 0 0 36 box5.dat
4 16 40 48 40 36 48 36 -36 48 36 -40 48 40
4 16 -40 48 40 -36 48 36 -36 48 -36 -40 48 -40
4 16 -40 48 -40 -36 48 -36 36 48 -36 40 48 -40
4 16 40 48 -40 36 48 -36 36 48 36 40 48 40
1 16 0 48 0 0 0 40 0 -48 0 -40 0 0 box5.dat
1 16 20 4 -34 1.5 0 0 0 43 0 0 0 2 box4-1.dat
1 16 -20 4 -34 1.5 0 0 0 43 0 0 0 2 box4-1.dat
1 16 20 4 34 1.5 0 0 0 43 0 0 0 -2 box4-1.dat
1 16 -20 4 34 1.5 0 0 0 43 0 0 0 -2 box4-1.dat
1 16 -34 4 -20 0 0 2 0 43 0 -1.5 0 0 box4-1.dat
1 16 34 4 -20 0 0 -2 0 43 0 1.5 0 0 box4-1.dat
1 16 -34 4 20 0 0 2 0 43 0 -1.5 0 0 box4-1.dat
1 16 34 4 20 0 0 -2 0 43 0 1.5 0 0 box4-1.dat
1 16 25.9006 4 0 10.0994 0 0 0 31 0 0 0 1 box3u4p.dat
2 24 16 35 0 15.8012 35 -1
2 24 16 35 0 15.8012 35 1
2 24 36 35 -1 36 35 1
1 16 0 4 -25.9006 0 0 1 0 31 0 -10.0994 0 0 box3u4p.dat
2 24 0 35 -16 -1 35 -15.8012
2 24 0 35 -16 1 35 -15.8012
2 24 -1 35 -36 1 35 -36
1 16 -25.9006 4 0 -10.0994 0 0 0 31 0 0 0 -1 box3u4p.dat
2 24 -16 35 0 -15.8012 35 1
2 24 -16 35 0 -15.8012 35 -1
2 24 -36 35 1 -36 35 -1
1 16 0 4 25.9006 0 0 -1 0 31 0 10.0994 0 0 box3u4p.dat
2 24 0 35 16 1 35 15.8012
2 24 0 35 16 -1 35 15.8012
2 24 1 35 36 -1 35 36
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2021-01-19 18:05:01
2021-02-06 17:30:01
Corrected wrong length. No hole according to unity mesh..
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2021-05-14 19:10:01
Top photo: https://photos.app.goo.gl/Kf8v2sxsEj8hKncTA
2022-10-18 13:50:02
2024-05-20 20:57:58
2024-05-21 04:10:41
2024-05-28 02:57:19
Release 2024-04
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
length should be 10.0994 instead of 10.01
The snapping pin has no throughhole?
