Official File parts/93086.dat
Part Attributes:
File Header:

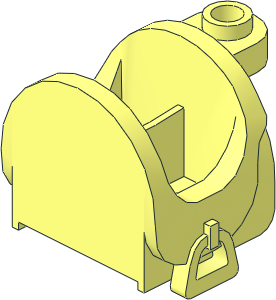

0 Animal Horse Saddle Friends
0 Name: 93086.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2020-12-06 {LEGO/Unity Microgame} Original part shape
0 !HISTORY 2020-12-07 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\93086s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\93086s01.dat
0 BFC INVERTNEXT
1 16 0 0 0 16 0 0 0 -5 0 0 0 16 box5.dat
1 16 0 -5 0 -1 0 0 0 -1.25 0 0 0 1 stud4.dat
3 16 0 -44.767 -20 -20 0 -20 20 0 -20
4 16 -20 0 -20 -16 0 -16 16 0 -16 20 0 -20
2 24 -20 0 -20 20 0 -20
2 24 20 0 20 -20 0 20
4 16 -20 0 20 20 0 20 16 0 16 -16 0 16
3 16 -1 -25.825 14.457 1 -25.825 14.457 0 -44.942 14.473
3 16 1 -25.865 -14.582 -1 -25.865 -14.582 0 -44.767 -14.582
2 24 -1 -25.865 -14.582 1 -25.865 -14.582
2 24 -1 -25.825 14.457 1 -25.825 14.457
5 24 -1 -24.907 4.914 1 -24.907 4.914 -1 -25.825 14.457 -1 -24.913 -4.676
5 24 -1 -24.913 -4.676 1 -24.913 -4.676 -1 -24.907 4.914 -1 -25.865 -14.582
4 16 1 -25.825 14.457 -1 -25.825 14.457 -1 -24.907 4.914 1 -24.907 4.914
4 16 -1 -24.907 4.914 -1 -24.913 -4.676 1 -24.913 -4.676 1 -24.907 4.914
4 16 -1 -24.913 -4.676 -1 -25.865 -14.582 1 -25.865 -14.582 1 -24.913 -4.676
1 16 0 -40.8 30 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 0 -40.8 30 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 -32.8 30 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 0 -32.8 30 4 0 0 0 -1 0 0 0 4 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -32.8 30 4 0 0 0 -8 0 0 0 4 4-4cyli.dat
4 16 -20 0 20 -2.538 -32.8 20 2.538 -32.8 20 20 0 20
4 16 -2.591 -32.8 23.803 2.591 -32.8 23.803 2.538 -32.8 20 -2.538 -32.8 20
2 24 2.538 -32.8 20 -2.538 -32.8 20
3 16 -2.591 -32.8 23.803 0 -32.8 26 2.591 -32.8 23.803
5 24 0 -44.767 -14.582 0 -44.767 -20 6.668 -43.888 -14.582 -6.668 -43.888 -14.582
5 24 0 -44.942 20 0 -44.942 14.473 5.321 -44.421 20 -5.321 -44.421 20
3 16 -10 -40.8 20 0 -44.942 20 10 -40.8 20
3 16 -10 -40.8 20 10 -40.8 20 0 -40.8 24
2 24 10 -40.8 20 -10 -40.8 20
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2020-12-07 21:20:02
2020-12-08 12:50:01
Nice, thank you for making!!
2021-04-17 13:40:02
The separator in the middle collides with the legs:
1 16 0 -7 0 1 0 0 0 1 0 0 0 1 11202.dat
3 16 1.2 -7 -14.582 1.2 -24.907 4.914 1.2 -24.913 -4.676
3 16 1.2 -7 -14.582 1.2 -24.913 -4.676 1.2 -25.865 -14.582
4 16 1.2 -24.907 4.914 1.2 -7 -14.582 1.2 -7 14.457 1.2 -25.825 14.457
3 16 -1.2 -7 -14.582 -1.2 -24.907 4.914 -1.2 -24.913 -4.676
3 16 -1.2 -7 -14.582 -1.2 -24.913 -4.676 -1.2 -25.865 -14.582
4 16 -1.2 -24.907 4.914 -1.2 -7 -14.582 -1.2 -7 14.457 -1.2 -25.825 14.457
1 16 0 -7 0 1 0 0 0 1 0 0 0 1 11202.dat
3 16 1.2 -7 -14.582 1.2 -24.907 4.914 1.2 -24.913 -4.676
3 16 1.2 -7 -14.582 1.2 -24.913 -4.676 1.2 -25.865 -14.582
4 16 1.2 -24.907 4.914 1.2 -7 -14.582 1.2 -7 14.457 1.2 -25.825 14.457
3 16 -1.2 -7 -14.582 -1.2 -24.907 4.914 -1.2 -24.913 -4.676
3 16 -1.2 -7 -14.582 -1.2 -24.913 -4.676 -1.2 -25.865 -14.582
4 16 -1.2 -24.907 4.914 -1.2 -7 -14.582 -1.2 -7 14.457 -1.2 -25.825 14.457
Corrected separator width
2024-10-08 13:31:49
2024-10-08 15:49:42
2024-10-17 20:53:10
2024-10-27 01:48:37
Release 2024-09
