File Detail parts/93106.dat

Official File parts/93106.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

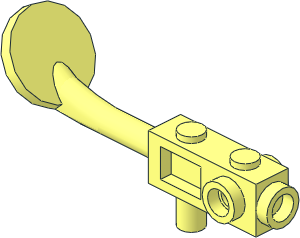

Minifig Metal Detector without Stud on Search Head

File Header:

0 Minifig Metal Detector without Stud on Search Head
0 Name: 93106.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Accessory

0 !HISTORY 2021-02-06 [ejboer] Based on 4479a
0 !HISTORY 2023-01-14 [MagFors] Made angle in arm
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08

Show contents

1 16 0 -2 0 4 0 0 0 2 0 0 0 4 4-4cylc.dat
1 16 20 -2 0 4 0 0 0 2 0 0 0 4 4-4cylc.dat
1 16 0 27 0 4 0 0 0 -11 0 0 0 4 4-4cylc.dat
1 16 10 8 -6 20 0 0 0 0 8 0 12 0 box4.dat
1 16 30 8 0 0 -1 0 1 0 0 0 0 1 stud2.dat
0 BFC INVERTNEXT
1 16 2 8 6 7.5 0 0 0 0 5 0 -4 0 box5.dat
0 BFC INVERTNEXT
1 16 2 8 -6 7.5 0 0 0 0 5 0 4 0 box5.dat
4 16 -10 0 6 -5.5 3 6 -5.5 13 6 -10 16 6
4 16 -10 0 -6 -10 16 -6 -5.5 13 -6 -5.5 3 -6
4 16 -10 0 -6 -5.5 3 -6 9.5 3 -6 14 2 -6
4 16 -10 0 6 30 0 6 26 2 6 14 2 6
4 16 -10 16 6 14 14 6 26 14 6 30 16 6
4 16 -10 16 -6 30 16 -6 26 14 -6 14 14 -6
4 16 30 0 6 30 16 6 26 14 6 26 2 6
4 16 30 0 -6 26 2 -6 26 14 -6 30 16 -6
1 16 20 8 6 1 0 0 0 0 1 0 -1 0 stud2a.dat
1 16 20 8 -6 1 0 0 0 0 1 0 1 0 stud2a.dat
1 16 20 8 6 6 0 0 0 0 6 0 -1 0 4-4edge.dat
1 16 20 8 -6 6 0 0 0 0 6 0 -1 0 4-4edge.dat
1 16 20 8 6 6 0 0 0 0 6 0 -1 0 4-4ndis.dat
1 16 20 8 -6 -6 0 0 0 0 6 0 1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 20 8 -6 3 0 0 0 0 3 0 12 0 4-4cylo.dat
1 16 20 8 -6 1 0 0 0 0 1 0 1 0 4-4ring3.dat
1 16 20 8 -6 4 0 0 0 0 4 0 1 0 4-4edge.dat
1 16 20 8 6 1 0 0 0 0 1 0 -1 0 4-4ring3.dat
1 16 20 8 6 4 0 0 0 0 4 0 1 0 4-4edge.dat
1 16 -10 8 0 0 1 0 0 0 4 4 0 0 4-4edge.dat
1 16 -10 8 0 0 -21 0 0 0 4 4 0 0 4-4cyli.dat

1 16 -31 8 0 0 -25.92 0 4 0 0 0 0 4 3-16cyls.dat
1 16 -31 8 0 0 -25.92 0 4 0 0 0 0 -4 3-16cyls.dat

1 16 -56.92 8 0 25.92 -1 0 4 0 0 0 0 4 3-16edge.dat
1 16 -56.92 8 0 25.92 1 0 4 0 0 0 0 4 3-16chrd.dat
1 16 -56.92 8 0 25.92 -1 0 4 0 0 0 0 -4 3-16edge.dat
1 16 -56.92 8 0 25.92 1 0 4 0 0 0 0 -4 3-16chrd.dat
4 16 9.5 13 -6 -5.5 13 -6 -10 16 -6 14 14 -6
4 16 9.5 13 -6 14 14 -6 14 2 -6 9.5 3 -6
4 16 -10 0 -6 14 2 -6 26 2 -6 30 0 -6
4 16 14 2 6 9.5 3 6 -5.5 3 6 -10 0 6
4 16 9.5 3 6 14 2 6 14 14 6 9.5 13 6
4 16 9.5 13 6 14 14 6 -10 16 6 -5.5 13 6

1 16 -51.5653 -4.13 0 7.23277 -3.31615 -2.99592 10.72303 2.23677 -4.44163 5.35757 0 12.93431 7-8cylo.dat
1 16 -51.5653 -4.13 0 7.8287 -0.82904 0 11.60653 0.55919 0 0 0 14 4-4disc.dat
1 16 -54.8815 -1.8932 0 7.23277 0.82904 -2.99592 10.72303 -0.55919 -4.44163 5.35757 0 12.93431 7-8disc.dat

3 16 -47.6487 8.8298 5.3576 -47.6488 8.8297 -5.3575 -54.8815 -1.8932 0
3 16 -47.0004 9.5308 -3.6956 -47.0004 9.5308 3.6956 -31 12 0
4 16 -47.0004 9.5308 3.6956 -47.0004 9.5308 -3.6956 -47.6488 8.8297 -5.3575 -47.6487 8.8298 5.3576
2 24 -47.0004 9.5308 3.6956 -44.1708 6.8328 3.9048
2 24 -44.1708 6.8328 -3.9048 -47.0004 9.5308 -3.6956
3 16 -44.1708 6.8328 3.9048 -47.0004 9.5308 3.6956 -44.3325 6.593 5.3576
3 16 -44.3325 6.593 5.3576 -47.0004 9.5308 3.6956 -47.6487 8.8298 5.3576
3 16 -44.1708 6.8328 -3.9048 -44.3326 6.5929 -5.3575 -47.0004 9.5308 -3.6956
3 16 -47.0004 9.5308 -3.6956 -44.3326 6.5929 -5.3575 -47.6488 8.8297 -5.3575

5 24 -47.6487 8.8298 5.3576 -47.6488 8.8297 -5.3575 -47.0004 9.5308 3.6956 -54.8815 -1.8932 0
5 24 -47.0004 9.5308 -3.6956 -47.0004 9.5308 3.6956 -47.6488 8.8297 -5.3575 -31 12 0
5 24 -44.3325 6.593 5.3576 -47.0004 9.5308 3.6956 -47.6487 8.8298 5.3576 -44.1708 6.8328 3.9048
2 24 -47.6488 8.8297 -5.3575 -47.0004 9.5308 -3.6956
5 24 -47.0004 9.5308 -3.6956 -44.3326 6.5929 -5.3575 -44.1708 6.8328 -3.9048 -47.6488 8.8297 -5.3575
2 24 -47.0004 9.5308 3.6956 -47.6487 8.8298 5.3576
2 24 -44.3326 6.5929 -5.3575 -44.1708 6.8328 -3.9048
2 24 -44.3325 6.593 5.3576 -44.1708 6.8328 3.9048

0 // angle in arm
1 16 -31 8 0 0 -7 0 0 -1 -4 4 0 0 2-4cyli.dat
1 16 -38 7 0 0 -7.4 0 0 -2 -4 4 0 0 2-4cyli.dat
1 16 -45.4 5 0 0 -4.7 0 4 -3 0 0 0 4 1-4cyls2.dat
1 16 -45.4 5 0 -4.7 0 0 -7 -1 0 0 0 4 1-4edge.dat
1 16 -45.4 5 0 0 -4.7 0 4 -3 0 0 0 -4 1-4cyls2.dat
1 16 -45.4 5 0 -4.7 0 0 -7 -1 0 0 0 -4 1-4edge.dat
3 16 -47.0004 9.5308 3.6956 -38 7 4 -31 8 4
3 16 -38 7 4 -47.0004 9.5308 3.6956 -45.4 5 4
3 16 -31 8 4 -31 9.5308 3.6956 -47.0004 9.5308 3.6956
2 24 -44.1708 6.8328 3.9048 -45.4 5 4
3 16 -47.0004 9.5308 -3.6956 -31 9.5308 -3.6956 -31 8 -4
3 16 -47.0004 9.5308 -3.6956 -38 7 -4 -45.4 5 -4
3 16 -31 8 -4 -38 7 -4 -47.0004 9.5308 -3.6956
2 24 -44.1708 6.8328 -3.9048 -45.4 5 -4

5 24 -38 7 -4 -38 5.4692 -3.6956 -45.4 3.4692 -3.6956 -31 8 -4
5 24 -38 4.1716 2.8284 -38 5.4692 3.6956 -31 5.1716 2.8284 -45.4 3.4692 3.6956
5 24 -31 4 0 -31 4.3044 1.5308 -10 4.3044 1.5308 -38 3.3044 1.5308
5 24 -31 8 -4 -31 6.4692 -3.6956 -38 5.4692 -3.6956 -10 6.4692 -3.6956
5 24 -38 5.4692 -3.6956 -38 4.1716 -2.8284 -31 6.4692 -3.6956 -45.4 2.1716 -2.8284
5 24 -31 5.1716 2.8284 -31 6.4692 3.6956 -10 6.4692 3.6956 -38 5.4692 3.6956
5 24 -47.0004 9.5308 -3.6956 -38 7 -4 -31 9.5308 -3.6956 -45.4 5 -4
5 24 -38 4.1716 -2.8284 -38 3.3044 -1.5308 -31 5.1716 -2.8284 -45.4 1.3044 -1.5308
5 24 -38 3.3044 -1.5308 -38 3 0 -45.4 1 0 -31 4.3044 -1.5308
5 24 -45.4 1.3044 1.5308 -45.4 1 0 -49.7423 -1.4673 1.5308 -38 3 0
5 24 -38 5.4692 3.6956 -38 7 4 -31 6.4692 3.6956 -45.4 5 4
5 24 -31 8 4 -47.0004 9.5308 3.6956 -31 9.5308 3.6956 -38 7 4
5 24 -38 3.3044 1.5308 -38 4.1716 2.8284 -31 4.3044 1.5308 -45.4 2.1716 2.8284
5 24 -45.4 2.1716 2.8284 -45.4 1.3044 1.5308 -48.7234 0.0503 2.8284 -38 3.3044 1.5308
5 24 -38 7 4 -47.0004 9.5308 3.6956 -45.4 5 4 -31 9.5308 3.6956
5 24 -31 5.1716 -2.8284 -31 4.3044 -1.5308 -10 4.3044 -1.5308 -38 3.3044 -1.5308
5 24 -31 6.4692 3.6956 -31 8 4 -38 7 4 -10 8 4
5 24 -45.4 1.3044 -1.5308 -45.4 2.1716 -2.8284 -38 4.1716 -2.8284 -48.7234 0.0503 -2.8284
5 24 -45.4 3.4692 -3.6956 -45.4 5 -4 -38 7 -4 -47.1987 2.3211 -3.6956
5 24 -45.4 1 0 -45.4 1.3044 -1.5308 -49.7423 -1.4673 -1.5308 -38 3.3044 -1.5308
5 24 -31 4.3044 -1.5308 -31 4 0 -10 4 0 -38 3 0
5 24 -45.4 3.4692 3.6956 -45.4 2.1716 2.8284 -47.1987 2.3211 3.6956 -38 4.1716 2.8284
5 24 -31 6.4692 -3.6956 -31 5.1716 -2.8284 -10 5.1716 -2.8284 -38 4.1716 -2.8284
5 24 -31 8 -4 -47.0004 9.5308 -3.6956 -38 7 -4 -31 9.5308 -3.6956
5 24 -38 3 0 -38 3.3044 1.5308 -45.4 1.3044 1.5308 -31 4 0
5 24 -31 4.3044 1.5308 -31 5.1716 2.8284 -10 5.1716 2.8284 -38 4.1716 2.8284
5 24 -45.4 3.4692 3.6956 -45.4 5 4 -47.1987 2.3211 3.6956 -38 5.4692 3.6956
5 24 -45.4 2.1716 -2.8284 -45.4 3.4692 -3.6956 -38 5.4692 -3.6956 -47.1987 2.3211 -3.6956
5 24 -31 9.5308 -3.6956 -47.0004 9.5308 -3.6956 -31 10.8284 -2.8284 -31 8 -4
5 24 -31 8 -4 -38 7 -4 -31 6.4692 -3.6956 -47.0004 9.5308 -3.6956
5 24 -38 7 -4 -45.4 5 -4 -38 5.4692 -3.6956 -47.0004 9.5308 -3.6956
5 24 -31 9.5308 3.6956 -47.0004 9.5308 3.6956 -31 10.8284 2.8284 -31 8 4
5 24 -31 8 4 -38 7 4 -31 6.4692 3.6956 -47.0004 9.5308 3.6956
5 24 -38 7 4 -45.4 5 4 -38 5.4692 3.6956 -47.0004 9.5308 3.6956

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Evert-Jan Boer [ejboer]

initially submitted the part.

2020-10-20 19:40:01

Based on 4479b

Magnus Forsberg [MagFors]

posted a vote of Hold.

2020-11-12 20:00:02

4479a still have too many issues to be used here. And these parts are too different.
https://brickshelf.com/gallery/MagFors/LDraw/pictures/Errors/93106.png
Due to the angle of my image, the handle and the box seam to be out of line, but in reallity they line up very good.

The overall length of the body is 40ldu, not 39.
The newer versions, 93106 and 28814 (in production today), both have the handle "in grid" at 30ldu from the back stud.
The canal through the side studs have a stopper ring.
The arm attached to the circular head/blade have an angle, that maybe could be ignored, but I think it should be made.
The total length of the parts are the same. The angle of the heads/blades are the same. The heads/blades are in the same position.

Evert-Jan Boer [ejboer]

submitted a new version of the part.

2021-02-06 11:35:01

Changes:
Increased box length to 40LDU
Repositioned handle and top studs
Slighty changed box indent after measurements, height should maybe be decreased by 0.5LDU
Added stopper for side studs
Added needs work for the angled arm

Existing certification-votes were deleted.

Magnus Forsberg [MagFors]

submitted a new version of the part.

2023-01-14 11:45:01

Made an angle on the arm.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2024-09-06 07:56:55

Philippe Hurbain [Philo]

posted a vote of Certify.

2024-09-06 08:00:44

Orion Pobursky [OrionP]

posted a vote of Admin Review.
