Official File parts/94717.dat
Part Attributes:
File Header:

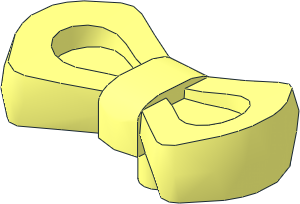

0 Figure Friends Hair Decoration, Bow
0 Name: 94717.dat
0 Author: Takeshi Takahashi [RainbowDolphin]
0 !LDRAW_ORG Part UPDATE 2024-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Figure Accessory
0 !KEYWORDS animal show, BrickLink 92355d, grooming supplies, hair accessories
0 !KEYWORDS Multipack 92355, pet
0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2020-09-25 [RainbowDolphin] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-04-28 [OrionP] Official Update 2024-03
Show contents
0 // Pin
1 16 0 0 0 2 0 0 0 -5.5 0 0 0 2 4-4cylc.dat
0 // Body
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\94717s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\94717s01.dat
4 16 2.52 -10.562 -4.21 2.52 -10.951 -2.703 -2.52 -10.951 -2.703 -2.52 -10.562 -4.21
4 16 2.52 -10.951 1.578 2.52 -10.562 3.085 -2.52 -10.562 3.085 -2.52 -10.951 1.578
4 16 2.52 -10.951 -2.703 2.52 -10.951 1.578 -2.52 -10.951 1.578 -2.52 -10.951 -2.703
3 16 -2.52 -10.562 -4.21 -2.52 -10.191 -4.841 0 -10.191 -4.841
3 16 -2.52 -10.562 -4.21 0 -10.191 -4.841 2.52 -10.562 -4.21
3 16 2.52 -10.562 -4.21 0 -10.191 -4.841 2.52 -10.191 -4.841
3 16 -2.52 -10.238 3.744 -2.52 -10.562 3.085 0 -10.238 3.744
3 16 0 -10.238 3.744 -2.52 -10.562 3.085 2.52 -10.562 3.085
3 16 0 -10.238 3.744 2.52 -10.562 3.085 2.52 -10.238 3.744
2 24 2.52 -10.562 -4.21 2.52 -10.191 -4.841
2 24 -2.52 -10.191 -4.841 -2.52 -10.562 -4.21
2 24 2.52 -10.951 -2.703 2.52 -10.562 -4.21
2 24 -2.52 -10.562 -4.21 -2.52 -10.951 -2.703
2 24 2.52 -10.238 3.744 2.52 -10.562 3.085
2 24 -2.52 -10.562 3.085 -2.52 -10.238 3.744
2 24 2.52 -10.562 3.085 2.52 -10.951 1.578
2 24 -2.52 -10.951 1.578 -2.52 -10.562 3.085
2 24 2.52 -10.951 1.578 2.52 -10.951 -2.703
2 24 -2.52 -10.951 -2.703 -2.52 -10.951 1.578
5 24 -2.52 -10.562 -4.21 2.52 -10.562 -4.21 0 -10.191 -4.841 2.52 -10.951 -2.703
5 24 2.52 -10.951 1.578 -2.52 -10.951 1.578 0 -10.951 -2.703 2.52 -10.562 3.085
5 24 -2.52 -10.562 3.085 2.52 -10.562 3.085 2.52 -10.238 3.744 0 -10.951 1.578
5 24 2.52 -10.951 -2.703 -2.52 -10.951 -2.703 2.52 -10.951 1.578 0 -10.562 -4.21
5 24 0 -10.191 -4.841 0 -8.907 -5.812 -1.613 -9.222 -5.633 1.613 -9.222 -5.633
5 24 0 -8.907 -5.812 0 -8.492 -5.899 -.523 -8.561 -5.879 .523 -8.561 -5.879
5 24 0 -8.492 -5.899 0 -5.5 -5.9 -2.52 -5.5 -5.384 2.52 -5.5 -5.384
5 24 0 -10.238 3.744 0 -8.907 4.687 -1.613 -9.222 4.508 1.613 -9.222 4.508
5 24 0 -8.907 4.687 0 -8.492 4.774 -.523 -8.561 4.754 .523 -8.561 4.754
5 24 0 -8.492 4.774 0 -5.5 4.775 -2.52 -5.5 4.259 2.52 -5.5 4.259
