File Detail parts/950b.dat

Official File parts/950b.dat

Part Attributes:

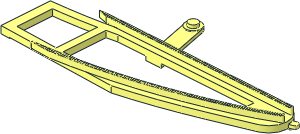

~Train Track 4.5V Point Type 2 Left - Switch Rails

File Header:

0 ~Train Track  4.5V Point Type 2 Left - Switch Rails
0 Name: 950b.dat
0 Author: Willy Tschager [Holly-Wood]
0 !LDRAW_ORG Part UPDATE 2024-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-01-29 [OrionP] Official Update 2024-01

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\950as01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\950bs02.dat

0 // Stud
1 16 -177.847 16 76.754 -.96593 0 .25882 0 1 0 -.25882 0 -.96593 stud.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Steffen [Steffen]

initially submitted the part.

2011-06-25 10:05:08

mockup

Steffen [Steffen]

posted a vote of Hold.

2011-06-25 10:05:09

mockup.
I do not have detailled information how this part differs from the ...a variant. Alex Taylor (anathema) maybe has.

Alex Taylor [anathema]

posted a vote of Hold.

2011-06-25 11:35:02

The differences are primarily that the rails pivot around a different point: the 'a' type pivots around the centre of the large disc and the 'b' type pivots around a small pin on the underside of the tab sticking out of that disc. There are also some small changes to the shape of the part to compensate for this.

All I've done so far is to move the pivot point, so I don't want to upload it here. If someone who has this part wants to work on it, I've uploaded the subpart to www.nightshade.org.uk/950bs01.dat

Steffen [Steffen]

submitted a new version of the part.

2011-06-25 16:00:08

As requested by Mike, added a space before the 4.5 in title.
To make that possible, I had to rename the assemblies of this part
from "(Complete Assembly)" to "(Complete)". As that's still descriptive enough, I find this no loss.

Existing certification-votes were deleted.

Steffen [Steffen]

submitted a new version of the part.

2011-06-25 16:15:04

added "Needs Work" to title to be able to release this

Michael Heidemann [mikeheide]

posted a vote of Certify.

2011-06-25 19:35:07

Philippe Hurbain [Philo]

posted a vote of Hold.

2011-07-05 07:45:05

I don't think it would be a good idea to release this part since its present origin is non-functionnal. I'd suggest to keep the wrong shape with a needs work but at least move the origin as suggested by Alex. I don't care much for origin when it's a non functionnal one, but here it's much more significant...

Steffen [Steffen]

posted a vote of Hold.

2011-07-05 08:05:04

Philo is right.
I missed Alex' point about the origin.
Need to place the origin of this file at the proper location.

Steffen [Steffen]

posted a vote of Hold.

2011-07-10 01:05:03

I just looked at your link above.
Indeed it has an offset of 19/0/9 to this.
However, even when I use that part and put it properly
with that offset into e.g. x948cc01.dat, then
the bottomside pin of that part does not fit well
into the hole of x952b.dat.
They are slightly misaligned.
As I do not possess this part or have a scan of it,
I cannot continue placing the origin at the proper
rotation point. Can anybody else? does anybody
have a scan of the underside of this part?

Steffen [Steffen]

posted a vote of Hold.

2011-07-10 01:10:02

note that it's not necessary immediately to make this part
perfect. we can release it as a mockup with a needs work in the
title imho.
the only thing we currently need to find out is the exact position
of the underside pin about which this part rotates.
that pin is the critical difference to 950a, which rotates
about a different point.
the minimum repairs we need to apply to this file before release thus are:
- add the bottom pin at the exact position
- relocate the origin of this file to the center of that pin
- adjust the parent parts to the origin change

Michael Heidemann [mikeheide]

made the following comment.

2013-03-10 20:10:07

Please name some sets where this part should have been shipped with. By this we can have a look into our inventory.

Willy Tschager [Holly-Wood]

submitted a new version of the part.

2023-07-25 15:36:02

I didn't change the origin. As pointed out above: the 'a' type pivots around the centre of the large disc and the 'b' type pivots around a small pin on the underside of the tab sticking out of that disc. Rotation of version 'b' is achieved by a little play between the switch and the frame. This play cannot be authored into the part without a major overhaul of the frame as a 'b' version (it's not worth the fuss).

The other parts have been sent to the admin for proxy.

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2023-09-02 14:19:59

Willy Tschager [Holly-Wood]

submitted a new version of the part.

2023-11-13 12:22:22

Moved Stud to main part

Magnus Forsberg [MagFors]

posted a vote of Certify.

2023-11-18 12:52:42

Magnus Forsberg [MagFors]

posted a vote of Certify.
