Official File parts/95120.dat
Part Attributes:
File Header:

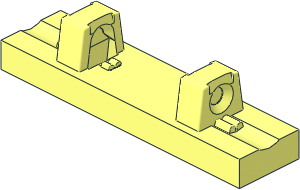

0 Hinge Tile 1 x 4 Locking with 2 Single Fingers on Top with Double Lock
0 Name: 95120.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 44822
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
Show contents
0 // Subparts
1 16 0 1 0 1 0 0 0 1 0 0 0 1 s\95120s01.dat
1 16 0 1 0 -1 0 0 0 1 0 0 0 1 s\95120s01.dat
0 // Primitives
0 BFC INVERTNEXT
1 16 -30 8 0 6 0 0 0 -4 0 0 0 6 box5.dat
1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stud3.dat
0 BFC INVERTNEXT
1 16 30 8 0 6 0 0 0 -4 0 0 0 6 box5.dat
0 BFC INVERTNEXT
1 16 0 8 0 21 0 0 0 -4 0 0 0 6 box4.dat
1 16 -40 4.5 0 0 1 0 3.5 0 0 0 0 10 rect1.dat
1 16 40 4.5 0 0 -1 0 3.5 0 0 0 0 10 rect1.dat
1 16 0 4 10 40 0 0 0 0 4 0 -1 0 rect.dat
1 16 0 4 -10 -40 0 0 0 0 4 0 1 0 rect.dat
0 // Faces
3 16 -40 8 10 -24 8 6 -36 8 6
3 16 -40 8 10 -21 8 6 -24 8 6
4 16 -40 8 10 40 8 10 21 8 6 -21 8 6
3 16 40 8 10 24 8 6 21 8 6
3 16 40 8 10 36 8 6 24 8 6
4 16 -40 8 10 -36 8 6 -36 8 -6 -40 8 -10
4 16 -24 8 6 -21 8 6 -21 8 -6 -24 8 -6
4 16 24 8 -6 21 8 -6 21 8 6 24 8 6
4 16 40 8 10 40 8 -10 36 8 -6 36 8 6
3 16 -40 8 -10 -36 8 -6 -24 8 -6
3 16 -40 8 -10 -24 8 -6 -21 8 -6
4 16 -40 8 -10 -21 8 -6 21 8 -6 40 8 -10
3 16 40 8 -10 21 8 -6 24 8 -6
3 16 40 8 -10 24 8 -6 36 8 -6
3 16 -21 4 6 -15.5 4 5.515 -20 4 5.515
4 16 -21 4 6 21 4 6 15.5 4 5.515 -15.5 4 5.515
3 16 21 4 6 20 4 5.515 15.5 4 5.515
4 16 -21 4 6 -20 4 5.515 -20 4 -5.515 -21 4 -6
4 16 -15.5 4 5.515 15.5 4 5.515 15.5 4 -5.515 -15.5 4 -5.515
4 16 21 4 -6 20 4 -5.515 20 4 5.515 21 4 6
3 16 -20 4 -5.515 -15.5 4 -5.515 -21 4 -6
4 16 -21 4 -6 -15.5 4 -5.515 15.5 4 -5.515 21 4 -6
3 16 21 4 -6 15.5 4 -5.515 20 4 -5.515
4 16 -10 0 10 -10 0 -10 10 0 -10 10 0 10
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
