Official File parts/u9639.dat
Part Attributes:
File Header:

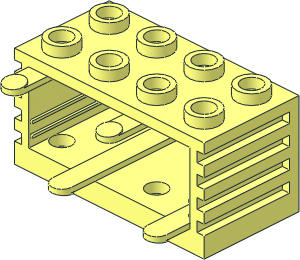

0 ~Electric Train 12V Flashing-Light Unit - Back
0 Name: u9639.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-10-05 [kuramapika1] Adapted to new plug34 shape and added edged primitives
0 !HISTORY 2024-03-29 [MagFors] reworked metal pins
0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9638s01.dat
1 16 0 18 48 -3.5 0 0 0 0 3.5 0 -8 0 4-4cylc.dat
1 16 0 18 40 -3.5 0 0 0 0 3.5 0 -1 0 4-4ndis.dat
1 16 -10 18 40 -5.25 0 0 0 0 5.25 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -10 18 36 5.25 0 0 0 0 5.25 0 4 0 4-4cylo.dat
1 16 -10 18 36 5.25 0 0 0 0 5.25 0 1 0 4-4ndis.dat
1 16 10 18 40 -5.25 0 0 0 0 5.25 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 10 18 36 5.25 0 0 0 0 5.25 0 4 0 4-4cylo.dat
1 16 10 18 36 5.25 0 0 0 0 5.25 0 1 0 4-4ndis.dat
4 16 -4.75 12.75 40 -16 10.5 40 16 10.5 40 4.75 12.75 40
4 16 -3.5 14.5 40 -4.75 12.75 40 4.75 12.75 40 3.5 14.5 40
3 16 -15.25 12.75 40 -16 10.5 40 -4.75 12.75 40
4 16 -15.25 23.25 40 -16 25.5 40 -16 10.5 40 -15.25 12.75 40
3 16 -4.75 23.25 40 -16 25.5 40 -15.25 23.25 40
4 16 -4.75 12.75 40 -3.5 14.5 40 -3.5 21.5 40 -4.75 23.25 40
4 16 4.75 23.25 40 16 25.5 40 -16 25.5 40 -4.75 23.25 40
4 16 3.5 21.5 40 4.75 23.25 40 -4.75 23.25 40 -3.5 21.5 40
3 16 15.25 23.25 40 16 25.5 40 4.75 23.25 40
4 16 15.25 12.75 40 16 10.5 40 16 25.5 40 15.25 23.25 40
3 16 4.75 12.75 40 16 10.5 40 15.25 12.75 40
4 16 4.75 23.25 40 3.5 21.5 40 3.5 14.5 40 4.75 12.75 40
4 16 4.75 12.75 36 16 10.5 36 -16 10.5 36 -4.75 12.75 36
3 16 15.25 12.75 36 16 10.5 36 4.75 12.75 36
4 16 15.25 23.25 36 16 25.5 36 16 10.5 36 15.25 12.75 36
3 16 4.75 23.25 36 16 25.5 36 15.25 23.25 36
4 16 -4.75 23.25 36 -16 25.5 36 16 25.5 36 4.75 23.25 36
4 16 -4.75 12.75 36 -4.75 23.25 36 4.75 23.25 36 4.75 12.75 36
3 16 -15.25 23.25 36 -16 25.5 36 -4.75 23.25 36
4 16 -15.25 12.75 36 -16 10.5 36 -16 25.5 36 -15.25 23.25 36
3 16 -4.75 12.75 36 -16 10.5 36 -15.25 12.75 36
1 494 10 18 40 -1 0 0 0 1 0 0 0 -1 s\u9639s01.dat
1 494 -10 18 40 -1 0 0 0 1 0 0 0 -1 s\u9639s01.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Changed description.
Corrected parttype.
Corrected parttype.
2023-10-13 02:18:06
2023-10-15 12:09:01
just checked my part: the slots on the pin dont go to the base, its more like m_plug (without the rear things)...
the base is even protruding a bit.
the base is even protruding a bit.
The moved, loose edge prims gets coloured yellow, if I use this part coloured yellow.
2023-10-15 12:42:20
does it work with grey? (this part only exists in old grey)
2023-11-02 17:10:30
Just measured it again: it has 6,2mm long pins but the slots are only 5mm (the rest is smooth) and the base diameter is 4,6mm (the ring3 around the pin should be replaced with a ring2 and we need to add a 2ldu cyli between it and the plug34).
Maybe we should even move the pins to 990c (the electrics part)...
Maybe we should even move the pins to 990c (the electrics part)...
The loose edge prims must be included in the electric pins to get the correct metal colour.
Are the metal pins moulded into the plastic cover or loose and removable from the cover, integrated in the pcb board?
Are the metal pins moulded into the plastic cover or loose and removable from the cover, integrated in the pcb board?
2023-11-02 18:48:01
very hard to say without opening it...
I would guess they are not moulded in, rather screwed in. (I can wiggle them)
I would guess they are not moulded in, rather screwed in. (I can wiggle them)
Some images here:
https://www.youtube.com/watch?v=Pcg2vhI0HnY
I'd say they are moulded into the plastic.
https://www.youtube.com/watch?v=Pcg2vhI0HnY
I'd say they are moulded into the plastic.
2023-11-03 00:14:29
And here is another one: https://www.brickshelf.com/cgi-bin/gallery.cgi?i=4448290
2023-11-03 15:55:09
hm, even when they stay together the ring is too small...
But I would say they are not initially moulded together, rather riveted in (thermic rivet from the plastic part)
But I would say they are not initially moulded together, rather riveted in (thermic rivet from the plastic part)
Doesn't matter how they did it. Only that the metallic pins are an integrated part of this half. Should not be moved to the pcb.
subfiled
optimized subfiling
The loose edge prims has to be moved to the subfile.
removed stray edges
2024-03-25 23:27:29
(moved them to electric plug subfile)
2024-03-29 14:26:52
The part itself is good.
Should we take u-number for this?
Should we take u-number for this?
2024-07-31 23:09:12
"parts/990b.dat" to "parts/u9639.dat"
2024-08-21 12:36:44
2024-11-27 20:24:39
2024-12-01 00:36:17
Release 2024-10
