File Detail parts/t1010.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/t1010.dat

Part Attributes:

File Header:

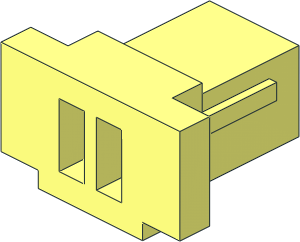

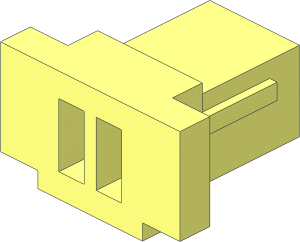

0 ~| Brickstuff Standard Plug
0 Name: t1010.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Electric

0 !HISTORY 2024-04-28 [OrionP] Official Update 2024-03
