File Detail parts/t1014.dat

Official File parts/t1014.dat

Part Attributes:

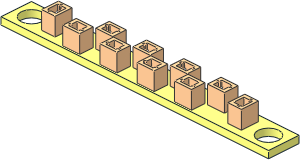

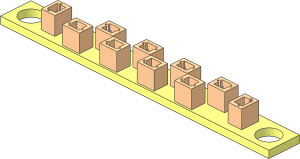

| Brickstuff 1:8 Expansion Adapter Board with Standard Connectors

File Header:

0 | Brickstuff 1:8 Expansion Adapter Board with Standard Connectors
0 Name: t1014.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Electric
0 !KEYWORDS BRANCH11

0 !HISTORY 2024-04-28 [OrionP] Official Update 2024-03

Show contents

1 16 0 -4 0 79 0 0 0 4 0 0 0 9 box4.dat
1 16 52.8078 0 -.6922 -1.3846 0 0 0 -1 0 0 0 1.3846 s\t1012s01.dat
4 16 62.5 0 9 64 0 6 64 0 -6 62.5 0 -8.9998
3 16 79 0 9 64 0 6 62.5 0 9
3 16 64 0 -6 79 0 -9 62.5 0 -8.9998
3 16 43.1156 0 9 -64 0 6 -79 0 9
3 16 -64 0 -6 43.1156 0 -8.9998 -79 0 -9
4 16 -64 0 6 43.1156 0 9 43.1156 0 -8.9998 -64 0 -6
0 BFC INVERTNEXT
1 16 70 0 0 6 0 0 0 -4 0 0 0 6 4-4cylo.dat
1 16 70 0 0 6 0 0 0 -1 0 0 0 6 4-4ndis.dat
1 16 70 -4 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
4 16 79 -4 9 76 -4 6 76 -4 -6 79 -4 -9
3 16 64 -4 6 76 -4 6 79 -4 9
3 16 79 -4 -9 76 -4 -6 64 -4 -6
4 16 76 0 -6 76 0 6 79 0 9 79 0 -9
3 16 76 0 6 64 0 6 79 0 9
3 16 76 0 -6 79 0 -9 64 0 -6
0 BFC INVERTNEXT
1 16 -70 0 0 -6 0 0 0 -4 0 0 0 6 4-4cylo.dat
1 16 -70 0 0 -6 0 0 0 -1 0 0 0 6 4-4ndis.dat
1 16 -70 -4 0 -6 0 0 0 1 0 0 0 6 4-4ndis.dat
4 16 -76 -4 -6 -76 -4 6 -79 -4 9 -79 -4 -9
3 16 -76 -4 6 -64 -4 6 -79 -4 9
3 16 -76 -4 -6 -79 -4 -9 -64 -4 -6
4 16 -79 0 9 -76 0 6 -76 0 -6 -79 0 -9
3 16 -64 0 6 -76 0 6 -79 0 9
3 16 -79 0 -9 -76 0 -6 -64 0 -6
4 16 -64 -4 6 64 -4 6 79 -4 9 -79 -4 9
4 16 64 -4 -6 -64 -4 -6 -79 -4 -9 79 -4 -9
4 16 -64 -4 -6 64 -4 -6 64 -4 6 -64 -4 6
1 78 55 -14 0 0 -1 0 0 0 1 -1 0 0 t1011.dat
1 78 39 -14 4 1 0 0 0 0 1 0 -1 0 t1011.dat
1 78 17 -14 4 1 0 0 0 0 1 0 -1 0 t1011.dat
1 78 -5 -14 4 1 0 0 0 0 1 0 -1 0 t1011.dat
1 78 -27 -14 4 1 0 0 0 0 1 0 -1 0 t1011.dat
1 78 -55 -14 0 0 1 0 0 0 1 1 0 0 t1011.dat
1 78 -38.5 -14 -4 -1 0 0 0 0 1 0 1 0 t1011.dat
1 78 -16.5 -14 -4 -1 0 0 0 0 1 0 1 0 t1011.dat
1 78 5.5 -14 -4 -1 0 0 0 0 1 0 1 0 t1011.dat
1 78 27.5 -14 -4 -1 0 0 0 0 1 0 1 0 t1011.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2017-12-14 13:55:01

Philippe Hurbain [Philo]

submitted a new version of the part.

2017-12-15 09:25:00

Added logo and corrected BFC on back
