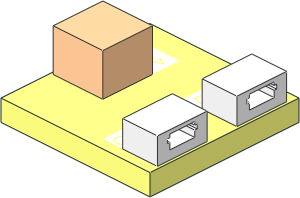

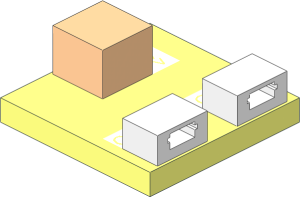

0 | Brickstuff Micro Lighting Effect Controller with 2 Outputs
0 Name: t1017.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Electric
0 !KEYWORDS LEC, TRUNK06
0 !HISTORY 2024-04-28 [OrionP] Official Update 2024-03
