Official File parts/t1023.dat
Part Attributes:
File Header:

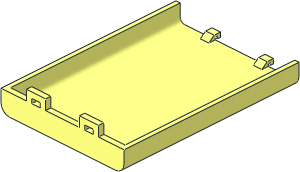

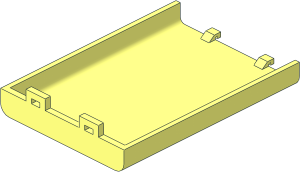

0 | Brickstuff Battery Box AA Lid
0 Name: t1023.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Electric
0 !HISTORY 2024-04-28 [OrionP] Official Update 2024-03
Show contents
1 16 50 -8 -85 8 0 0 0 0 8 0 165 0 1-4cylo.dat
1 16 50 -8 -85 8 0 0 0 0 8 0 1 0 1-4chrd.dat
0 BFC INVERTNEXT
1 16 50 -8 -80 4 0 0 0 0 4 0 160 0 1-4cylo.dat
1 16 50 -8 -80 4 0 0 0 0 4 0 -1 0 1-4chrd.dat
1 16 50 -8 80 4 0 0 0 0 4 0 -1 0 1-4ring1.dat
0 BFC INVERTNEXT
1 16 25 -21 -85 4 0 0 0 0 2 0 5 0 box4.dat
1 16 25 -19 -82.5 0 0 9 0 -9 0 -2.5 0 0 box3u2p.dat
4 16 54 -19 -80 34 -19 -80 34 -19 -85 58 -19 -85
4 16 34 -28 -85 29 -23 -85 29 -19 -85 34 -19 -85
4 16 29 -23 -85 34 -28 -85 16 -28 -85 21 -23 -85
4 16 21 -23 -85 16 -28 -85 16 -19 -85 21 -19 -85
4 16 29 -19 -80 29 -23 -80 34 -28 -80 34 -19 -80
4 16 16 -28 -80 34 -28 -80 29 -23 -80 21 -23 -80
4 16 16 -19 -80 16 -28 -80 21 -23 -80 21 -19 -80
1 16 56 -13.5 80 -2 0 0 0 0 -5.5 0 -1 0 rect3.dat
1 16 58 -13.5 -2.5 0 -1 0 -5.5 0 0 0 0 -82.5 rect2a.dat
1 16 54 -13.5 0 0 1 0 0 0 -5.5 -80 0 0 rect2a.dat
4 16 54 -19 80 54 -19 -80 58 -19 -85 58 -19 80
1 16 -50 -8 -85 -8 0 0 0 0 8 0 165 0 1-4cylo.dat
1 16 -50 -8 -85 -8 0 0 0 0 8 0 1 0 1-4chrd.dat
0 BFC INVERTNEXT
1 16 -50 -8 -80 -4 0 0 0 0 4 0 160 0 1-4cylo.dat
1 16 -50 -8 -80 -4 0 0 0 0 4 0 -1 0 1-4chrd.dat
1 16 -50 -8 80 -4 0 0 0 0 4 0 -1 0 1-4ring1.dat
0 BFC INVERTNEXT
1 16 -25 -21 -85 -4 0 0 0 0 2 0 5 0 box4.dat
1 16 -25 -19 -82.5 0 0 -9 0 -9 0 -2.5 0 0 box3u2p.dat
4 16 -34 -19 -85 -34 -19 -80 -54 -19 -80 -58 -19 -85
4 16 -29 -19 -85 -29 -23 -85 -34 -28 -85 -34 -19 -85
4 16 -16 -28 -85 -34 -28 -85 -29 -23 -85 -21 -23 -85
4 16 -16 -19 -85 -16 -28 -85 -21 -23 -85 -21 -19 -85
4 16 -34 -28 -80 -29 -23 -80 -29 -19 -80 -34 -19 -80
4 16 -29 -23 -80 -34 -28 -80 -16 -28 -80 -21 -23 -80
4 16 -21 -23 -80 -16 -28 -80 -16 -19 -80 -21 -19 -80
1 16 -56 -13.5 80 -2 0 0 0 0 -5.5 0 -1 0 rect3.dat
1 16 -58 -13.5 -2.5 0 1 0 0 0 -5.5 -82.5 0 0 rect2a.dat
1 16 -54 -13.5 0 0 -1 0 -5.5 0 0 0 0 -80 rect2a.dat
4 16 -58 -19 -85 -54 -19 -80 -54 -19 80 -58 -19 80
2 24 34 -19 -85 58 -19 -85
2 24 34 -19 -80 54 -19 -80
1 16 0 -19 -82.5 16 0 0 0 1 0 0 0 2.5 rect2p.dat
4 16 -58 -8 -85 -50 0 -85 50 0 -85 58 -8 -85
4 16 58 -19 -85 -58 -19 -85 -58 -8 -85 58 -8 -85
2 24 -50 0 -85 50 0 -85
2 24 50 -4 -80 -50 -4 -80
4 16 -50 -4 -80 -54 -8 -80 54 -8 -80 50 -4 -80
4 16 -54 -8 -80 -54 -19 -80 54 -19 -80 54 -8 -80
1 16 0 -2 80 0 0 -50 2 0 0 0 -1 0 rect1.dat
0 BFC INVERTNEXT
1 16 0 0 -65 6 0 0 0 -3 0 0 0 6 4-4cylo.dat
1 16 0 0 -65 6 0 0 0 -1 0 0 0 6 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -3 -65 3 0 0 0 -3 0 0 0 3 4-4cylo.dat
1 16 0 -4 -65 2 0 0 0 -2 0 0 0 2 4-4con3.dat
1 16 0 -4 -65 8 0 0 0 1 0 0 0 8 4-4ndis.dat
1 16 0 -4 -65 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 0 -6 -65 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 -6 -65 3 0 0 0 1 0 0 0 3 4-4ring1.dat
1 16 0 -3 -65 3 0 0 0 -1 0 0 0 3 4-4ring1.dat
4 16 50 -4 -80 8 -4 -73 -8 -4 -73 -50 -4 -80
4 16 -50 -4 -80 -8 -4 -73 -8 -4 -57 -50 -4 80
4 16 50 -4 80 8 -4 -57 8 -4 -73 50 -4 -80
4 16 -50 0 -85 -6 0 -71 6 0 -71 50 0 -85
4 16 50 0 -85 6 0 -71 6 0 -59 50 0 80
4 16 -50 0 80 50 0 80 6 0 -59 -6 0 -59
4 16 -50 0 -85 -50 0 80 -6 0 -59 -6 0 -71
1 16 0 0 55 11 0 0 0 0.5 0 0 0 1 box5.dat
1 16 0 0 50 8 0 0 0 0.5 0 0 0 1 box5.dat
1 16 0 0 45 5 0 0 0 0.5 0 0 0 1 box5.dat
1 16 0 0 40 3 0 0 0 0.5 0 0 0 1 box5.dat
0 BFC INVERTNEXT
1 16 -25 -4 81 -4 0 0 0 -2 0 0 0 1 box3u4a.dat
1 16 -25 -6 82 -4 0 0 0 -2 0 0 0 3 box2-5.dat
2 24 -29 -4 74 -29 -4 80
4 16 -29 -4 82 -29 -6 82 -29 -8 85 -29 -4 85
4 16 -29 -8 85 -29 -6 82 -29 -6 80 -29 -8 79
4 16 -29 -4 74 -29 -8 79 -29 -6 80 -29 -4 80
1 16 -25 -6 76.5 -4 0 0 0 1 2 0 0 -2.5 rect3.dat
4 16 -21 -8 85 -21 -6 82 -21 -4 82 -21 -4 85
4 16 -21 -6 80 -21 -6 82 -21 -8 85 -21 -8 79
4 16 -21 -6 80 -21 -8 79 -21 -4 74 -21 -4 80
1 16 -25 -4 83.5 4 0 0 0 -1 0 0 0 -1.5 rect3.dat
0 BFC INVERTNEXT
1 16 25 -4 81 4 0 0 0 -2 0 0 0 1 box3u4a.dat
1 16 25 -6 82 4 0 0 0 -2 0 0 0 3 box2-5.dat
2 24 29 -4 74 29 -4 80
4 16 29 -8 85 29 -6 82 29 -4 82 29 -4 85
4 16 29 -6 80 29 -6 82 29 -8 85 29 -8 79
4 16 29 -6 80 29 -8 79 29 -4 74 29 -4 80
1 16 25 -6 76.5 -4 0 0 0 1 2 0 0 -2.5 rect3.dat
4 16 21 -4 82 21 -6 82 21 -8 85 21 -4 85
4 16 21 -8 85 21 -6 82 21 -6 80 21 -8 79
4 16 21 -4 74 21 -8 79 21 -6 80 21 -4 80
1 16 25 -4 83.5 4 0 0 0 -1 0 0 0 -1.5 rect3.dat
2 24 -29 -4 80 -50 -4 80
3 16 -29 -4 74 -29 -4 80 -50 -4 80
3 16 -29 -4 74 -50 -4 80 -8 -4 -57
3 16 -29 -4 74 -8 -4 -57 -21 -4 74
3 16 29 -4 80 29 -4 74 50 -4 80
3 16 50 -4 80 29 -4 74 8 -4 -57
3 16 8 -4 -57 29 -4 74 21 -4 74
4 16 -21 -4 74 -8 -4 -57 8 -4 -57 21 -4 74
1 16 0 -4 77 21 0 0 0 1 0 0 0 3 rect3.dat
2 24 -34 -19 -80 -54 -19 -80
2 24 -58 -19 -85 -34 -19 -85
2 24 50 -4 80 29 -4 80
