File Detail parts/t1036.dat

Official File parts/t1036.dat

Part Attributes:

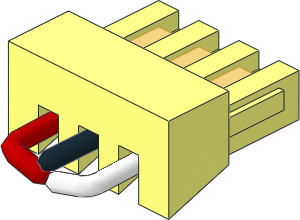

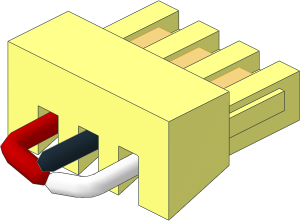

| Brickstuff Sensor Plug with Red/Black/White Cable Stub

File Header:

0 | Brickstuff Sensor Plug with Red/Black/White Cable Stub
0 Name: t1036.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP First cable segment
0 !HELP 1 0 0 .9 -5 -.5 0 .86603 -.86603 0 -.5 0 -1 0 t1037.dat

0 BFC CERTIFY CCW

0 !CATEGORY Electric

0 !HISTORY 2024-04-28 [OrionP] Official Update 2024-03

Show contents

2 24 4 -2 0 4 1 0
2 24 -4 -2 0 -4 1 0
2 24 4 -2 -3 4 2 -3
2 24 -4 -2 -3 -4 2 -3
1 16 0 -2 -1.5 0 0 4 0 1 0 -1.5 0 0 rect.dat
1 16 -3.25 1.5 -1.5 0 0 -0.75 0.5 -1 0 -1.5 0 0 rect.dat
1 16 3.25 1.5 -1.5 -0.75 0 0 0 -1 -0.5 0 0 1.5 rect.dat
4 16 4 -2 -3 4 2 -3 4 1 0 4 -2 0
4 16 -4 1 0 -4 2 -3 -4 -2 -3 -4 -2 0
2 24 -3.5 1 4 3.5 1 4
2 24 2.5 1 3 2.5 1 0
2 24 2.5 0 -3 2.5 2 -3
1 16 2 0 0 0.5 0 0 0 -1 0 0 0 -3 rect.dat
4 16 1.5 1 0 1.5 1 3 1.5 0 3 1.5 0 -3
1 16 2 0.5 3 -0.5 0 0 0 0 0.5 0 1 0 rect3.dat
4 16 2.5 0 3 2.5 1 3 2.5 1 0 2.5 0 -3
3 16 2.5 2 -3 2.5 0 -3 2.5 1 0
3 16 1.5 2 -3 1.5 1 0 1.5 0 -3
4 16 2.5 0 -3 2.5 2 -3 4 2 -3 4 -2 -3
2 24 -3.5 -1 0 3.5 -1 0
4 16 2.5 1 0 2.5 1 3 3.5 1 4 3.5 1 0
1 16 3.5 0 2 0 -1 0 1 0 0 0 0 2 rect.dat
4 16 4 1 0 3.5 1 0 3.5 -1 0 4 -2 0
2 24 -2.5 1 3 -2.5 1 0
2 24 -2.5 0 -3 -2.5 2 -3
1 16 -2 0 0 0 0 -0.5 0 -1 0 -3 0 0 rect.dat
4 16 -1.5 0 3 -1.5 1 3 -1.5 1 0 -1.5 0 -3
1 16 -2 0.5 3 -0.5 0 0 0 0 0.5 0 1 0 rect3.dat
4 16 -2.5 1 0 -2.5 1 3 -2.5 0 3 -2.5 0 -3
3 16 -2.5 0 -3 -2.5 2 -3 -2.5 1 0
3 16 -1.5 1 0 -1.5 2 -3 -1.5 0 -3
4 16 -4 2 -3 -2.5 2 -3 -2.5 0 -3 -4 -2 -3
4 16 -3.5 1 4 -2.5 1 3 -2.5 1 0 -3.5 1 0
1 16 -3.5 0 2 0 1 0 0 0 1 2 0 0 rect.dat
4 16 -3.5 -1 0 -3.5 1 0 -4 1 0 -4 -2 0
4 16 -2.5 1 3 -3.5 1 4 3.5 1 4 2.5 1 3
4 16 -4 -2 -3 -2.5 0 -3 2.5 0 -3 4 -2 -3
4 16 -4 -2 0 4 -2 0 3.5 -1 0 -3.5 -1 0
0 BFC INVERTNEXT
1 16 -2 -1 2.5 0.5 0 0 0 0.75 0 0 0 -1.5 box4-1.dat
1 334 -2 -0.5 2 0.5 0 0 0 -0.25 0 0 0 1 box2-5.dat
2 24 -2.5 -1 4 -3.5 -1 4
4 16 -3.5 -1 4 -2.5 -1 4 -2.5 -0.25 4 -3.5 1 4
4 16 -2.5 -1 1 -2.5 -1 4 -3.5 -1 4 -3.5 -1 0
0 BFC INVERTNEXT
1 16 2 -1 2.5 -0.5 0 0 0 0.75 0 0 0 -1.5 box4-1.dat
1 334 2 -0.5 2 -0.5 0 0 0 -0.25 0 0 0 1 box2-5.dat
2 24 2.5 -1 4 3.5 -1 4
4 16 2.5 -0.25 4 2.5 -1 4 3.5 -1 4 3.5 1 4
4 16 3.5 -1 4 2.5 -1 4 2.5 -1 1 3.5 -1 0
4 16 3.5 -1 0 2.5 -1 1 -2.5 -1 1 -3.5 -1 0
4 16 -2.5 -0.25 4 2.5 -0.25 4 3.5 1 4 -3.5 1 4
1 16 3.5 -0.3 1.5 0 0.25 0 0.4 0 0 0 0 1.5 box4-1.dat
1 16 -3.5 -0.3 1.5 0 -0.25 0 0.4 0 0 0 0 1.5 box4-1.dat
1 16 0 0 0 0.5 0 0 0 -1 0 0 0 -3 rect.dat
4 16 -0.5 1 0 -0.5 1 3 -0.5 0 3 -0.5 0 -3
1 16 0 0.5 3 -0.5 0 0 0 0 0.5 0 1 0 rect3.dat
4 16 0.5 0 3 0.5 1 3 0.5 1 0 0.5 0 -3
3 16 0.5 2 -3 0.5 0 -3 0.5 1 0
3 16 -0.5 2 -3 -0.5 1 0 -0.5 0 -3
1 16 -1 1 1.5 0.5 0 0 0 -1 0 0 0 -1.5 rect3.dat
1 16 1 1 1.5 0.5 0 0 0 -1 0 0 0 -1.5 rect3.dat
1 16 1 1.5 -1.5 0.5 0 0 0 -1 0.5 0 0 -1.5 rect3.dat
1 16 -1 1.5 -1.5 0.5 0 0 0 -1 0.5 0 0 -1.5 rect3.dat
1 16 -1 1 -3 0 0 0.5 1 0 0 0 1 0 rect2p.dat
1 16 1 1 -3 0 0 0.5 1 0 0 0 1 0 rect2p.dat
0 BFC INVERTNEXT
1 16 0 -1 2.5 -0.5 0 0 0 0.75 0 0 0 -1.5 box4-1.dat
1 334 0 -0.5 2 -0.5 0 0 0 -0.25 0 0 0 1 box2-5.dat
1 16 -1 -0.625 4 0 0 0.5 -0.375 0 0 0 -1 0 rect1.dat
1 16 1 -0.625 4 0 0 0.5 -0.375 0 0 0 -1 0 rect1.dat
4 16 1.5 -1 4 0.5 -1 4 0.5 -1 1 1.5 -1 1
4 16 -0.5 -1 4 -1.5 -1 4 -1.5 -1 1 -0.5 -1 1
1 0 0 0.4381 -5 0.4 0 0 0 0 0.4 0 -0.4 0 8\4-8sphe.dat
1 0 0 0.4381 -5 0.4 0 0 0 0 0.4 0 8 0 8\4-4cyli.dat
1 0 0 0.4381 3 0.4 0 0 0 0 0.4 0 1 0 8\4-4edge.dat
1 15 2.042 0.6909 -4.6 -0.38637 0 -0.10353 0.10353 -0.2 -0.38637 0 7.6 0 8\4-4cyli.dat
1 15 2.042 0.4909 3 -0.38637 0 -0.10353 0.10353 0 -0.38637 0 1 0 8\4-4edge.dat
1 15 1.6557 0.7944 -4.6 0.38637 -0.10353 0 -0.10353 -0.38637 0 0 0 -0.4 8\r04q1000.dat
1 15 0.4 1.1309 -5 -0.10353 -0.38637 0 -0.38637 0.10353 0 0 0 -0.4 8\4-8sphe.dat
1 15 0.4 1.1309 -5 -0.10353 1.2557 0 -0.38637 -0.33646 0 0 0 -0.4 8\4-4cyli.dat
1 4 -2.042 0.6909 -4.6 0.38637 0 0.10353 0.10353 -0.2 -0.38637 0 7.6 0 8\4-4cyli.dat
1 4 -2.042 0.4909 3 0.38637 0 0.10353 0.10353 0 -0.38637 0 1 0 8\4-4edge.dat
1 4 -1.6557 0.7944 -4.6 -0.38637 0.10353 0 -0.10353 -0.38637 0 0 0 -0.4 8\r04q1000.dat
1 4 -0.4 1.1309 -5 0.10353 0.38637 0 -0.38637 0.10353 0 0 0 -0.4 8\4-8sphe.dat
1 4 -0.4 1.1309 -5 0.10353 -1.2557 0 -0.38637 -0.33646 0 0 0 -0.4 8\4-4cyli.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2018-01-26 09:15:01

Philippe Hurbain [Philo]

submitted a new version of the part.

2018-09-13 08:35:01

Removed extraneous comment
