File Detail parts/t1115.dat

Official File parts/t1115.dat

Part Attributes:

File Header:

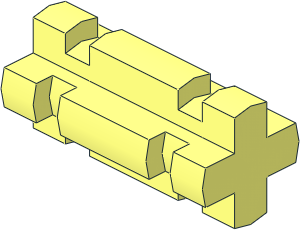

0 | Circuit Cubes Axle  1.25 Notched
0 Name: t1115.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Technic

0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02
