File Detail parts/t1119.dat

Official File parts/t1119.dat

Part Attributes:

File Header:

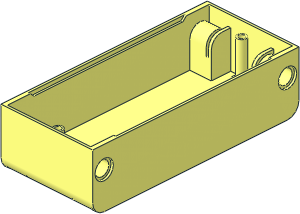

0 ~| BuWizz 3.0 Case Bottom
0 Name: t1119.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Electric

0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\t1119s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\t1119s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\t1119s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\t1119s01.dat
1 16 37.15 -45 0 0 0 0.85 0 1 0 -65 0 0 rect2p.dat
4 16 38 -45 -65 38 -48 -68 38 -48 68 38 -45 65
2 24 38 -48 68 38 -48 -68
4 16 38 -48 -68 40 -48 -90 40 -48 90 38 -48 68
2 24 40 -48 90 40 -48 -90
4 16 36.3 -45 -65 36.3 -45 65 36.3 -8 71 36.3 -8 -71
1 16 26.9 -8 0 9.4 0 0 0 1 0 0 0 71 rect1.dat
4 16 40 -39 -71 40 -39 71 40 -48 90 40 -48 -90
4 16 40 -39 -71 40 -21 -71 40 -21 71 40 -39 71
4 16 40 0 80 40 -21 71 40 -21 -71 40 0 -80
1 16 38.5 0 0 0 0 1.5 0 -1 0 80 0 0 rect2p.dat
4 16 37 -3.5 74 37 0 80 37 0 -80 37 -3.5 -74
4 16 37 -3.5 -74 36.1422 -3.5 -66.1422 36.1422 -3.5 66.1422 37 -3.5 74
2 24 37 -3.5 74 37 -3.5 -74
4 16 0 -8 72.5 0 -8 -72.5 17.5 -8 -71 17.5 -8 71
1 16 -37.15 -45 0 0 0 -0.85 0 1 0 65 0 0 rect2p.dat
4 16 -38 -48 68 -38 -48 -68 -38 -45 -65 -38 -45 65
2 24 -38 -48 68 -38 -48 -68
4 16 -40 -48 90 -40 -48 -90 -38 -48 -68 -38 -48 68
2 24 -40 -48 90 -40 -48 -90
4 16 -36.3 -8 71 -36.3 -45 65 -36.3 -45 -65 -36.3 -8 -71
1 16 -26.9 -8 0 -9.4 0 0 0 1 0 0 0 -71 rect1.dat
4 16 -40 -48 90 -40 -39 71 -40 -39 -71 -40 -48 -90
4 16 -40 -21 71 -40 -21 -71 -40 -39 -71 -40 -39 71
4 16 -40 -21 -71 -40 -21 71 -40 0 80 -40 0 -80
1 16 -38.5 0 0 0 0 -1.5 0 -1 0 -80 0 0 rect2p.dat
4 16 -37 0 -80 -37 0 80 -37 -3.5 74 -37 -3.5 -74
4 16 -36.1422 -3.5 66.1422 -36.1422 -3.5 -66.1422 -37 -3.5 -74 -37 -3.5 74
2 24 -37 -3.5 74 -37 -3.5 -74
4 16 -17.5 -8 -71 0 -8 -72.5 0 -8 72.5 -17.5 -8 71
4 16 -3.8578 -3.5 -73.8578 -3.8578 -3.5 73.8578 0 -3.5 72.9289 0 -3.5 -72.9289
4 16 0 -3.5 72.9289 3.8578 -3.5 73.8578 3.8578 -3.5 -73.8578 0 -3.5 -72.9289
3 16 0 -8 87.5 17.5 -8 88 -17.5 -8 88
1 16 0 -23.5 88 0 0 17.5 15.5 0 0 0 1 0 rect1.dat
4 16 -17.5 -39 88 17.5 -39 88 36.3 -48 88 -36.3 -48 88
2 24 -36.3 -48 88 36.3 -48 88
2 24 40 -48 90 -40 -48 90
4 16 -40 -48 90 -36.3 -48 88 36.3 -48 88 40 -48 90
4 16 -40 -48 90 40 -48 90 37 -10 90 -37 -10 90
1 16 0 -4.8365 88.3458 0 0 -37 1.3365 0 0 -0.8932 -1 0 rect1.dat
3 16 20 -3.5 87.4526 0 -3.5 87.0711 -20 -3.5 87.4526
1 16 37 -10 80 0 -74 0 0 0 10 10 0 0 1-16cyli.dat
3 16 17.5 -8 -88 0 -8 -87.5 -17.5 -8 -88
1 16 0 -23.5 -88 0 0 -17.5 15.5 0 0 0 -1 0 rect1.dat
4 16 36.3 -48 -88 17.5 -39 -88 -17.5 -39 -88 -36.3 -48 -88
2 24 -36.3 -48 -88 36.3 -48 -88
2 24 40 -48 -90 -40 -48 -90
4 16 36.3 -48 -88 -36.3 -48 -88 -40 -48 -90 40 -48 -90
4 16 37 -10 -90 40 -48 -90 -40 -48 -90 -37 -10 -90
1 16 0 -4.8365 -88.3458 0 0 37 1.3365 0 0 0.8932 1 0 rect1.dat
3 16 0 -3.5 -87.0711 20 -3.5 -87.4526 -20 -3.5 -87.4526
1 16 37 -10 -80 0 -74 0 0 0 10 -10 0 0 1-16cyli.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2021-04-05 13:10:01

Philippe Hurbain [Philo]

submitted a new version of the part.

2021-04-23 18:30:01

Corrected bottom
