Official File parts/t43111.dat
Part Attributes:

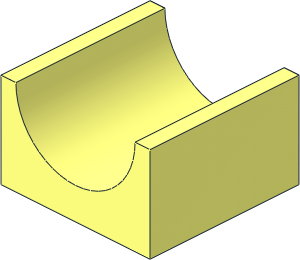

| Hubelino 2 x 2 Track
File Header:
0 | Hubelino 2 x 2 Track 0 Name: t43111.dat 0 Author: Rolf Osterthun [Rolf] 0 !LDRAW_ORG Part UPDATE 2024-04 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !CATEGORY Brick 0 !KEYWORDS Duplo 0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04
Show contents
2 24 -40 48 40 40 48 40 2 24 -40 48 -40 40 48 -40 2 24 36 48 36 -36 48 36 2 24 -36 48 -36 36 48 -36 4 16 40 48 40 36 48 36 -36 48 36 -40 48 40 4 16 -40 48 40 -36 48 36 -36 48 -36 -40 48 -40 4 16 -40 48 -40 -36 48 -36 36 48 -36 40 48 -40 4 16 40 48 -40 36 48 -36 36 48 36 40 48 40 1 16 -36 26 0 0 -1 0 -22 0 0 0 0 -36 rect.dat 1 16 36 26 0 0 1 0 -22 0 0 0 0 36 rect.dat 1 16 -36 24 0 0 -4 0 0 0 -24 40 0 0 box2-5.dat 1 16 36 23.999 0 0 4 0 0 0 -24 -40 0 0 box2-5.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\t43111s03.dat 1 16 0 0 -36 1 0 0 0 1 0 0 0 1 s\t43111s05.dat 1 16 0 0 -36 -1 0 0 0 1 0 0 0 1 s\t43111s05.dat 1 16 0 0 36 1 0 0 0 1 0 0 0 -1 s\t43111s05.dat 1 16 0 0 36 -1 0 0 0 1 0 0 0 -1 s\t43111s05.dat 1 16 0 0 -20 -1 0 0 0 1 0 0 0 1 s\t43111s04.dat 1 16 0 0 -20 1 0 0 0 1 0 0 0 1 s\t43111s04.dat 1 16 0 0 20 -1 0 0 0 1 0 0 0 1 s\t43111s04.dat 1 16 0 0 20 1 0 0 0 1 0 0 0 1 s\t43111s04.dat 1 16 0 0 -40 1 0 0 0 1 0 0 0 1 s\t43111s01.dat 1 16 0 0 40 -1 0 0 0 1 0 0 0 -1 s\t43111s01.dat 1 16 0 0 -36 1 0 0 0 1 0 0 0 1 s\t43111s02.dat 1 16 0 0 36 -1 0 0 0 1 0 0 0 -1 s\t43111s02.dat 0 BFC INVERTNEXT 1 16 0 0 40 32 0 0 0 0 32 0 -80 0 48\2-4cyli.dat 1 16 0 4 36 36 0 0 0 0 32 0 -72 0 48\2-4cyli.dat
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Rolf Osterthun [Rolf]
Part Reviewer
initially submitted the part.
2019-01-11 22:35:02
Third Party Part
Duplo compatible
see: https://hubelino.com/marble-run.html
see: https://forums.ldraw.org/thread-23128.html
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2019-01-12 07:15:01
- Where does "43111" comes from? AFAIK txxxx part ranges have only 4 digits?
- Suggest to add a "Duplo" keyword
Philippe Hurbain [Philo]
Senior Part Reviewer
posted a vote of Hold.
2019-01-12 07:45:01
Missing a ~ in front of description (subpart)
A lot of needless triangles in flat areas (Intersector usage? Was never happy with its clumsy triangulation...). Needless vertices should be merged, now easy with LDPE.
But... This approach will result in bad smoothing, and can't properly use primitive substitution. The design below will produce a much better looking result. Granted, there is some volume interpenetration, but it doesn't matter since the parts are not transparent.

1 16 0 4 36 36 0 0 0 0 32 0 -72 0 48\2-4cyli.dat
1 16 0 44 0 14 0 0 0 1 0 0 0 14 4-4edge.dat
1 16 0 44 0 16 0 0 0 1 0 0 0 16 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 44 0 14 0 0 0 -8 0 0 0 14 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 36 0 14 0 0 0 -2.6 0 0 0 14 1-4cyls2.dat
0 BFC INVERTNEXT
1 16 0 36 0 -14 0 0 0 -2.6 0 0 0 14 1-4cyls2.dat
0 BFC INVERTNEXT
1 16 0 36 0 14 0 0 0 -2.6 0 0 0 -14 1-4cyls2.dat
0 BFC INVERTNEXT
1 16 0 36 0 -14 0 0 0 -2.6 0 0 0 -14 1-4cyls2.dat
1 16 0 44 0 16 0 0 0 -8 0 0 0 16 4-4cyli.dat
1 16 0 36 0 16 0 0 0 -3.5 0 0 0 16 1-4cyls2.dat
1 16 0 36 0 -16 0 0 0 -3.5 0 0 0 16 1-4cyls2.dat
1 16 0 36 0 16 0 0 0 -3.5 0 0 0 -16 1-4cyls2.dat
1 16 0 36 0 -16 0 0 0 -3.5 0 0 0 -16 1-4cyls2.dat
1 16 0 44 0 -2 0 0 0 -1 0 0 0 2 4-4ring7.dat
2 24 4.698 35.7248 -13.0658 5.3578 35.6082 -12.9346
2 24 0 36 -14 4.698 35.7248 -13.0658
2 24 -4.698 35.7248 15.0658 0 36 16
2 24 -6.1232 35.473 14.7824 -4.698 35.7248 15.0658
2 24 4.698 35.7248 -15.0658 6.1232 35.473 -14.7824
2 24 4.698 35.7248 -15.0658 0 36 -16
2 24 5.3578 35.6082 12.9346 4.698 35.7248 13.0658
2 24 0 36 14 4.698 35.7248 13.0658
2 24 -4.698 35.7248 -13.0658 0 36 -14
2 24 -4.698 35.7248 -13.0658 -5.3578 35.6082 -12.9346
2 24 -4.698 35.7248 -15.0658 0 36 -16
2 24 -6.1232 35.473 -14.7824 -4.698 35.7248 -15.0658
2 24 -4.698 35.7248 13.0658 0 36 14
2 24 -5.3578 35.6082 12.9346 -4.698 35.7248 13.0658
2 24 4.698 35.7248 15.0658 6.1232 35.473 14.7824
2 24 4.698 35.7248 15.0658 0 36 16
2 24 13.7772 33.5648 7.6273 14.7824 33.1238 6.1232
2 24 16 32.5895 0 14.7824 33.1238 6.1232
2 24 13.7772 33.5648 -1.1204 14 33.467 0
2 24 13.7772 33.5648 1.1204 14 33.467 0
2 24 13.7772 33.5648 -7.6273 14.7824 33.1238 -6.1232
2 24 14.7824 33.1238 -6.1232 16 32.5895 0
2 24 11.3136 34.3071 11.3136 9.3168 34.9088 12.6481
2 24 11.3136 34.3071 11.3136 13.7772 33.5648 7.6273
2 24 9.8994 34.7333 -9.8994 9.3168 34.9088 -10.2888
2 24 9.8994 34.7333 -9.8994 12.9346 33.8187 -5.3578
2 24 13.7772 33.5648 -1.1204 12.9346 33.8187 -5.3578
2 24 9.3168 34.9088 10.2888 9.8994 34.7333 9.8994
2 24 12.9346 33.8187 5.3578 9.8994 34.7333 9.8994
2 24 13.7772 33.5648 1.1204 12.9346 33.8187 5.3578
2 24 11.3136 34.3071 -11.3136 9.3168 34.9088 -12.6481
2 24 13.7772 33.5648 -7.6273 11.3136 34.3071 -11.3136
2 24 6.1232 35.473 14.7824 9.3168 34.9088 12.6481
2 24 5.3578 35.6082 -12.9346 9.3168 34.9088 -10.2888
2 24 5.3578 35.6082 12.9346 9.3168 34.9088 10.2888
2 24 6.1232 35.473 -14.7824 9.3168 34.9088 -12.6481
2 24 -5.3578 35.6082 12.9346 -9.3168 34.9088 10.2888
2 24 -6.1232 35.473 14.7824 -9.3168 34.9088 12.6481
2 24 -5.3578 35.6082 -12.9346 -9.3168 34.9088 -10.2888
2 24 -6.1232 35.473 -14.7824 -9.3168 34.9088 -12.6481
2 24 -9.3168 34.9088 10.2888 -9.8994 34.7333 9.8994
2 24 -12.9346 33.8187 5.3578 -9.8994 34.7333 9.8994
2 24 -12.9346 33.8187 5.3578 -13.7772 33.5648 1.1204
2 24 -9.3168 34.9088 12.6481 -11.3136 34.3071 11.3136
2 24 -11.3136 34.3071 11.3136 -13.7772 33.5648 7.6273
2 24 -9.8994 34.7333 -9.8994 -9.3168 34.9088 -10.2888
2 24 -9.8994 34.7333 -9.8994 -12.9346 33.8187 -5.3578
2 24 -13.7772 33.5648 -1.1204 -12.9346 33.8187 -5.3578
2 24 -9.3168 34.9088 -12.6481 -11.3136 34.3071 -11.3136
2 24 -11.3136 34.3071 -11.3136 -13.7772 33.5648 -7.6273
2 24 -14 33.467 0 -13.7772 33.5648 1.1204
2 24 -14.7824 33.1238 6.1232 -13.7772 33.5648 7.6273
2 24 -16 32.5895 0 -14.7824 33.1238 6.1232
2 24 -14 33.467 0 -13.7772 33.5648 -1.1204
2 24 -13.7772 33.5648 -7.6273 -14.7824 33.1238 -6.1232
2 24 -16 32.5895 0 -14.7824 33.1238 -6.1232
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2019-01-12 10:10:01
Sorry, the second review pertains to tube subpart!
Rolf Osterthun [Rolf]
Part Reviewer
submitted a new version of the part.
2019-01-12 11:10:02
Chris wrote the following via mail:
"There would be no conflict if you use t43xxx, to match the Hubelino numbers."
I added the KEYWORD. Maybe I should also add a 'Marble Run'?

Existing certification-votes were deleted.
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2019-01-12 11:55:01
Fine if Chris is aware that this range of parts is Hubelino reserved. Yes, a Marble Run keyword would be a good thing!
Philippe Hurbain [Philo]
Senior Part Reviewer
posted a vote of Certify.
2019-01-13 09:30:01
Steffen [Steffen]
Senior Part Reviewer
posted a vote of Hold.
2019-05-26 22:00:02
PT does not show dependency to required subparts
s\t43111s03.dat
s\t43111s05.dat
s\t43111s04.dat
s\t43111s01.dat
s\t43111s02.dat
- there is something unknown broken here
Steffen [Steffen]
Senior Part Reviewer
posted a vote of Certify.
2019-05-27 10:25:01
Orion Pobursky [OrionP]
Part Library Admin
posted a vote of Admin Review.
2024-04-30 02:46:58
Orion Pobursky [OrionP]
Part Library Admin
2024-05-28 02:57:20
Release 2024-04
Creative Commons Attribution License information

This part is copyright © Rolf Osterthun
Licensed under CC BY 4.0
